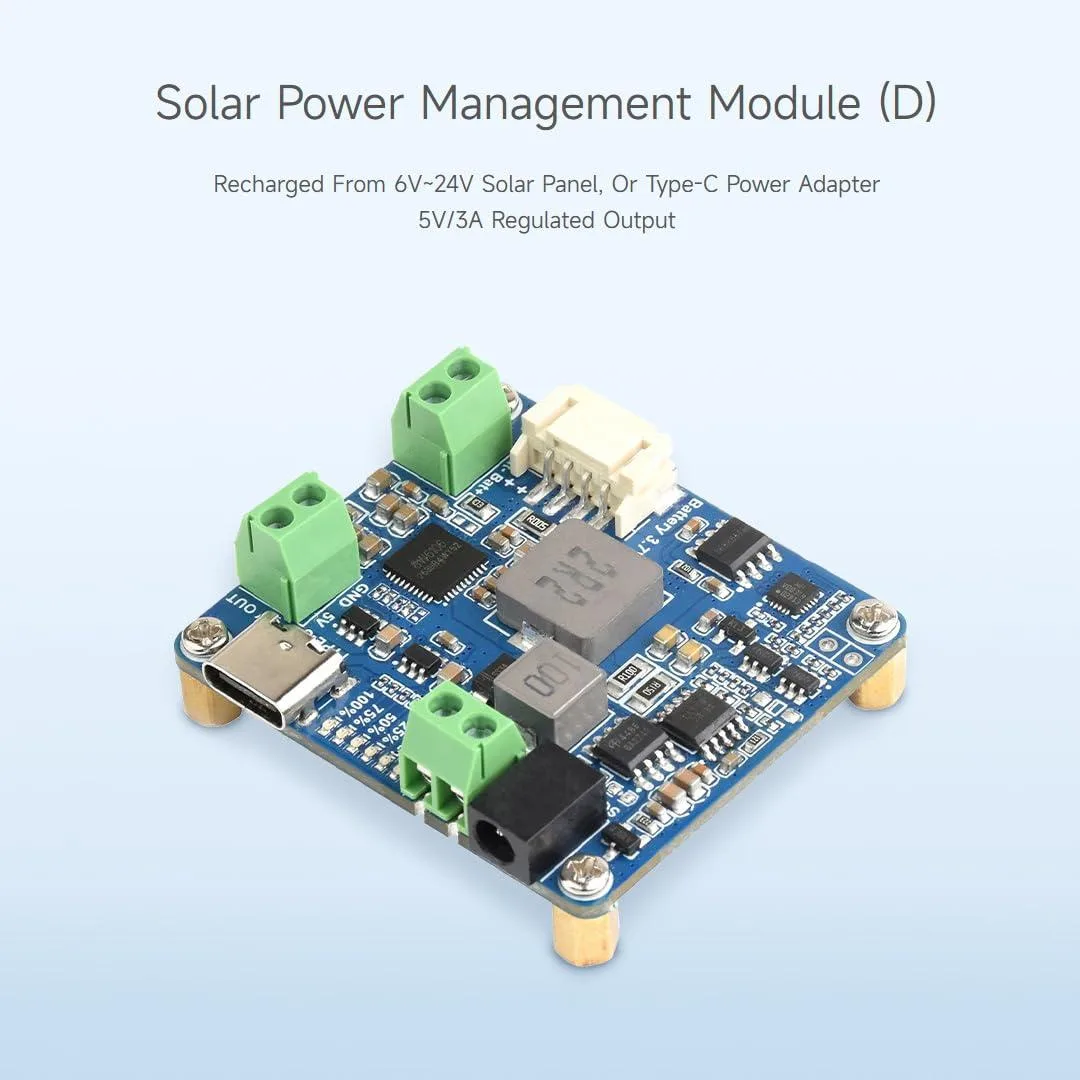

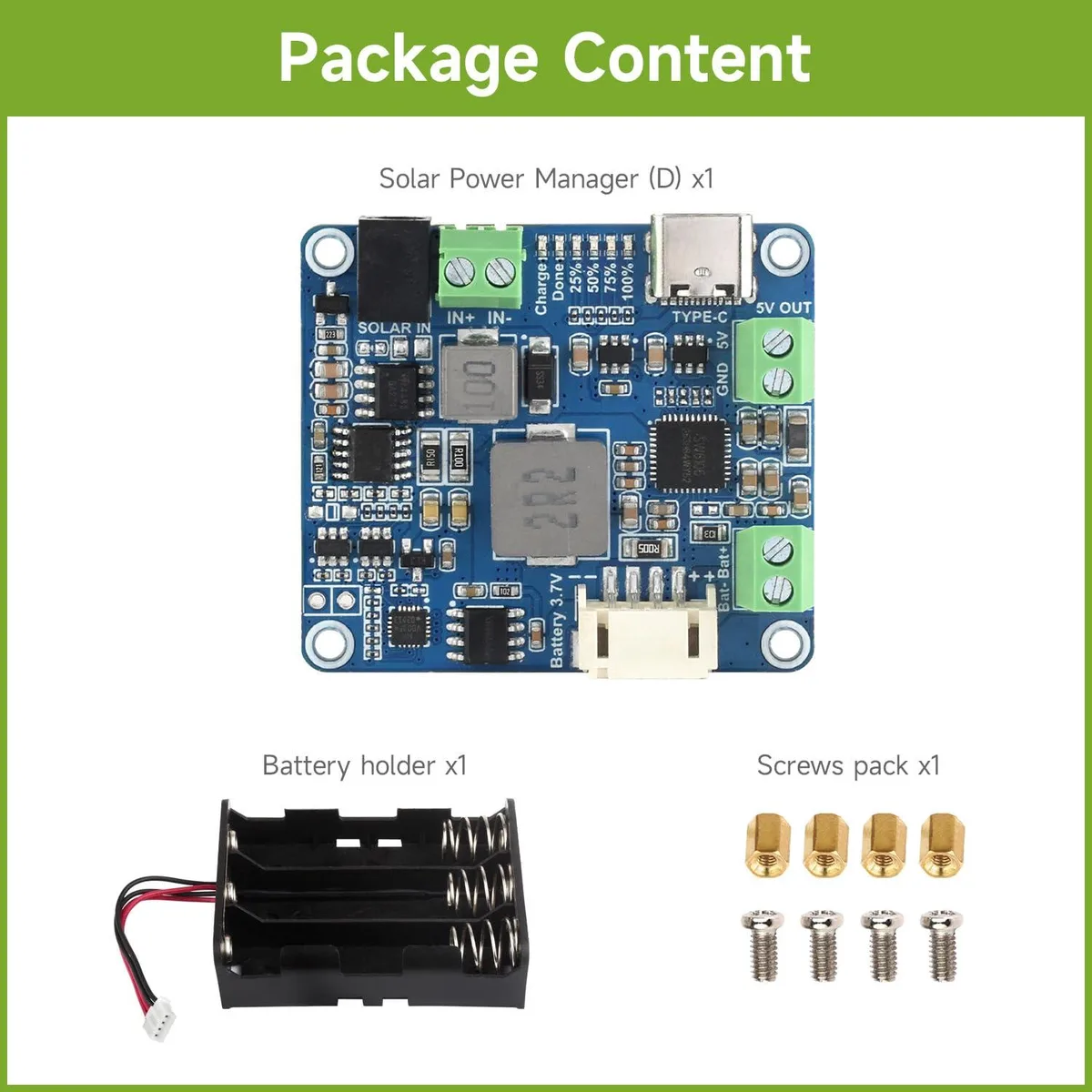

Small square green circuit board with USB-C port, screw terminals, battery holder and status LEDs

KEHIPI

KEHIPI Solar Power Manager Module (D) Acce A 5V/3A 6V~24V

SKU CH-XVB0-6F8KF

Solar charge controller with MPPT handles 6V–24V panels and Type-C input to charge 3.7V Li batteries and deliver 5V/3A regulated output

  • TypeSolar Power Manager (D) Acce A
  • ColorSolar Power Manager (D) Acce A
  • Dimensions2.0 in x 2.0 in x 2.0 in
  • Weight0.054 kilograms
  • MPPT maximises solar charging efficiency
  • Dual input from solar panel or Type-C powers 3.7 V Li-ion batteries
  • 5 V / 3 A regulated output with multiple fast-charge protocols
  • Multi-circuit protection guards against over-charge, over-discharge, overheat and over-current
  • LED indicators show real-time panel and battery status

Solar Power Manager for 6 V–24 V Panels

The KEHIPI Solar Power Manager Module (D) accepts 6 V to 24 V solar panels or a USB Type-C adapter to charge a single 3.7 V lithium cell held in the onboard holder. It delivers a regulated 5 V/3 A output that negotiates multiple fast-charge protocols for attached loads. The board measures 2.0 in on each side and weighs 0.054 kg.

MPPT Efficiency Within the 6 V–24 V Window

Maximum Power Point Tracking operates only while the panel voltage stays inside the 6 V–24 V range; outside this window the controller cannot optimise harvest. The DC-002 jack and screw terminal both include anti-reverse protection, but the module provides no boost or buck conversion for panels that fall below 6 V or exceed 24 V. Thermal, over-current, over-charge and over-discharge circuits shut the output down when limits are reached.

Replaces Separate Charge Controller

Builders who previously wired a discrete MPPT charger, a protection board and a 5 V boost converter can consolidate those functions into this single module. The jump is worth it when a project needs a compact, all-in-one solution for a 3.7 V cell and 5 V rail, but it does not suit systems requiring higher battery voltages, multi-cell management or input voltages beyond 24 V.

Highlights

  • MPPT maximises solar charging efficiency
  • Dual input from solar panel or Type-C powers 3.7 V Li-ion batteries
  • 5 V / 3 A regulated output with multiple fast-charge protocols
  • Multi-circuit protection guards against over-charge, over-discharge, overheat and over-current
  • LED indicators show real-time panel and battery status

Specifications

Brandwaveshare
ModelSolar Power Manager (D) Acce A
TypeSolar Power Manager (D) Acce A
ColorSolar Power Manager (D) Acce A
Dimensions2.0 in x 2.0 in x 2.0 in
Weight0.054 kilograms

Questions about this item

Should I power this module from a solar panel or a Type-C adapter for battery charging?

Both inputs are supported; the module accepts a 6V to 24V panel via the DC-002 jack or screw terminal and also charges from a Type-C power adapter.

What voltage does the regulated USB output deliver once the board is installed in my project?

The output is fixed at 5V with up to 3A available and negotiates PD, QC, FCP, PE and SFCP protocols with connected devices.

Which solar-panel voltage range does the MPPT controller actually track in practice?

The MPPT function operates across the full 6V to 24V input window, adjusting continuously to extract maximum power from the panel.
