Small metal-cased USB webcam with wide-angle lens and manual focus ring

KEHIPI

KEHIPI OV5648 5MP 110° Wide Angle Manual Focus USB Webcam

SKU CH-180Q-FA0XA

A 5 megapixel USB webcam with a 110° diagonal wide-angle lens and manual focus, capturing 1920p video at up to 30 frames per second and compatible with Windows, Linux, Android and Mac OS

  • NameUB023301
  • Color5MP OV5648 with Metal Case
  • InterfaceUSB
  • Image Sensor5 megapixels
  • Max. Image Resolution1920p
  • Effective Pixels5 megapixels
  • Sharp 5 MP images from the OV5648 sensor
  • 110° diagonal view captures wide scenes
  • Manual focus lets you set the exact plane
  • UVC compliant for driver-free use on Windows, Linux, Android, Mac
  • 30 fps at 1080p delivers smooth video calls

Sensor and optics

This webcam uses a 5MP OV5648 colour CMOS sensor with a 1/4" optical format and 1.4µm pixels. The M12 lens provides a 110° diagonal field of view with a fixed F2.5 aperture and 2.1mm focal length. An integral IR-cut filter limits capture to visible light only.

Manual focus and frame rates

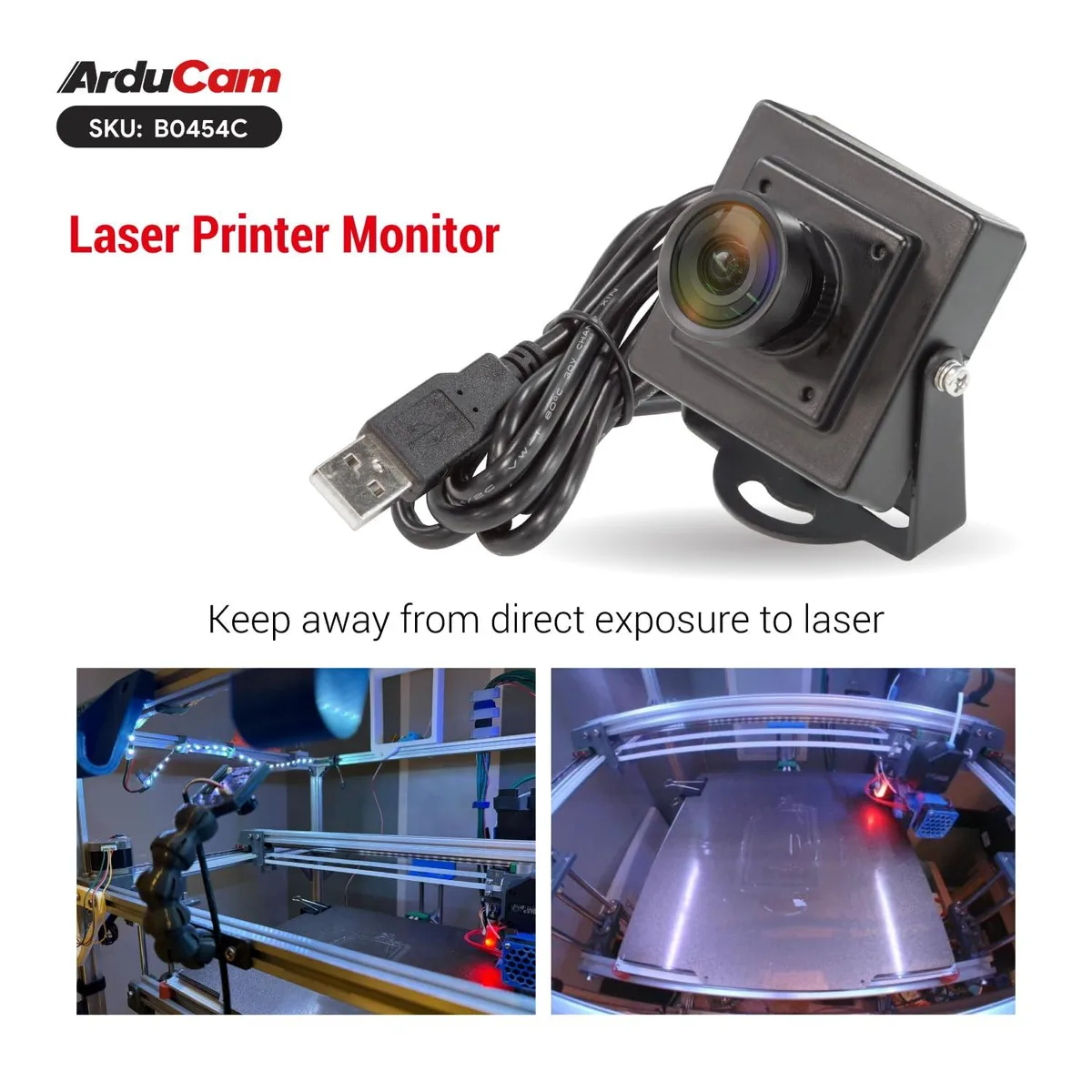

Manual focus lets you set the working distance for surveillance, 3D-printer monitoring or dashcam use. The UVC-compliant module delivers MJPG at up to 30fps at 1920x1080 or 15fps at 2592x1944, with lower YUY2 rates at higher resolutions. No driver installation is required on Windows, Linux, Android or Mac OS.

Wide-angle fixed lens suits stationary monitoring

The wide, fixed field of view works well for room-scale baby monitoring, robotic vision or conference capture where the camera stays in one position. Users who need autofocus for close-up product demos, a narrower view for privacy or 4K output should look at a different device.

Highlights

  • Sharp 5 MP images from the OV5648 sensor
  • 110° diagonal view captures wide scenes
  • Manual focus lets you set the exact plane
  • UVC compliant for driver-free use on Windows, Linux, Android, Mac
  • 30 fps at 1080p delivers smooth video calls

Specifications

BrandArducam
NameUB023301
ModelUB023301
Part NumberUB023301
Color5MP OV5648 with Metal Case
InterfaceUSB
Image Sensor5 megapixels
Max. Image Resolution1920p
Effective Pixels5 megapixels
Video Capture Resolution1920p
Focus SettingsManual Focus
LensWide Angle
Power SourceUSB
Package ContentsUSB Camera, Metal Case, USB cable

Questions about this item

Does the M12 lens on this OV5648 webcam need periodic cleaning or can it be swapped out later?

The lens uses an M12 mount so it can be unscrewed and replaced if damaged; the metal case protects the glass but dust on the wide-angle surface should be cleaned with a lens cloth when image quality drops.

At the full 2592x1944 resolution the frame rate is limited to 15 fps in MJPG — is that the first bottleneck during long captures?

Yes, the sensor tops out at 15 fps at 5 MP in MJPG and only 2 fps in YUY2, so sustained high-resolution recording hits the frame-rate ceiling before thermal or bandwidth limits appear.

Running all day at 1080p30, does the USB-powered module get hot or draw enough current to stress a laptop port?

The camera draws power only from the USB bus with no external supply; at 1080p30 MJPG it runs within standard USB current limits and the metal case acts as a passive heatsink, so heat and power draw stay low during continuous use.
