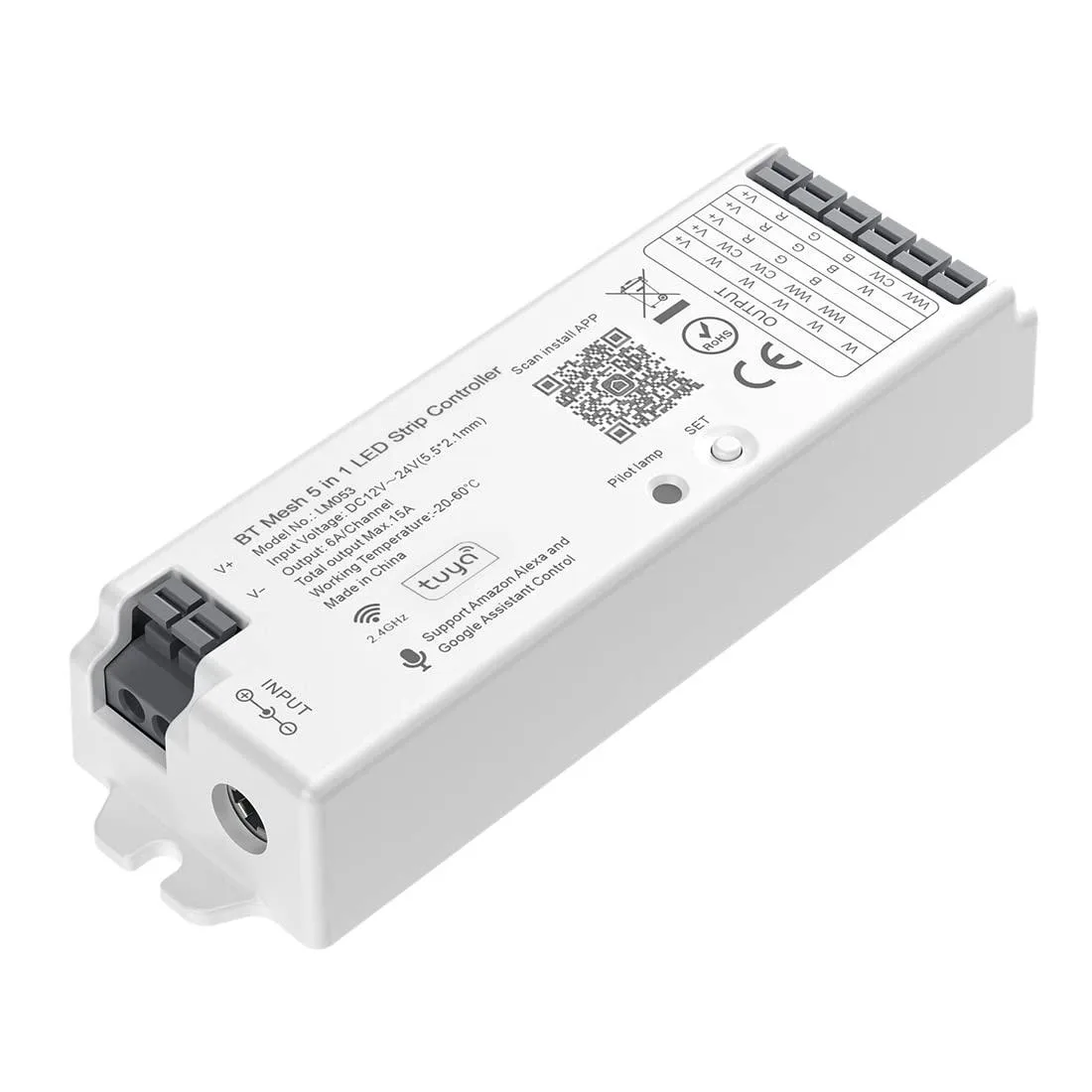

Small white rectangular controller with wired terminals and a separate remote control

KEHIPI

KEHIPI LM053 5-in-1 Bluetooth Mesh LED Controller

SKU CH-E9TB-TJ2WZ MPN LM053

Bluetooth Mesh LED controller handles five strip types with app and RF remote control up to 30 metres

  • ColorWhite
  • SpecificationsBTF-LIGHTING
  • Dimensions12.2 in x 3.8 in x 2.2 in
  • Package ContentsLED Driver, Remote Control
  • Controls five LED strip types with one device via SET button
  • Bluetooth mesh extends remote range to 30 m between controllers
  • Works without Wi-Fi using RF remote or Smart Life app
  • Delivers up to 15 A total output at 12 V or 24 V
  • Compact 122 × 38 × 22 mm housing fits tight installations

Five-mode LED controller

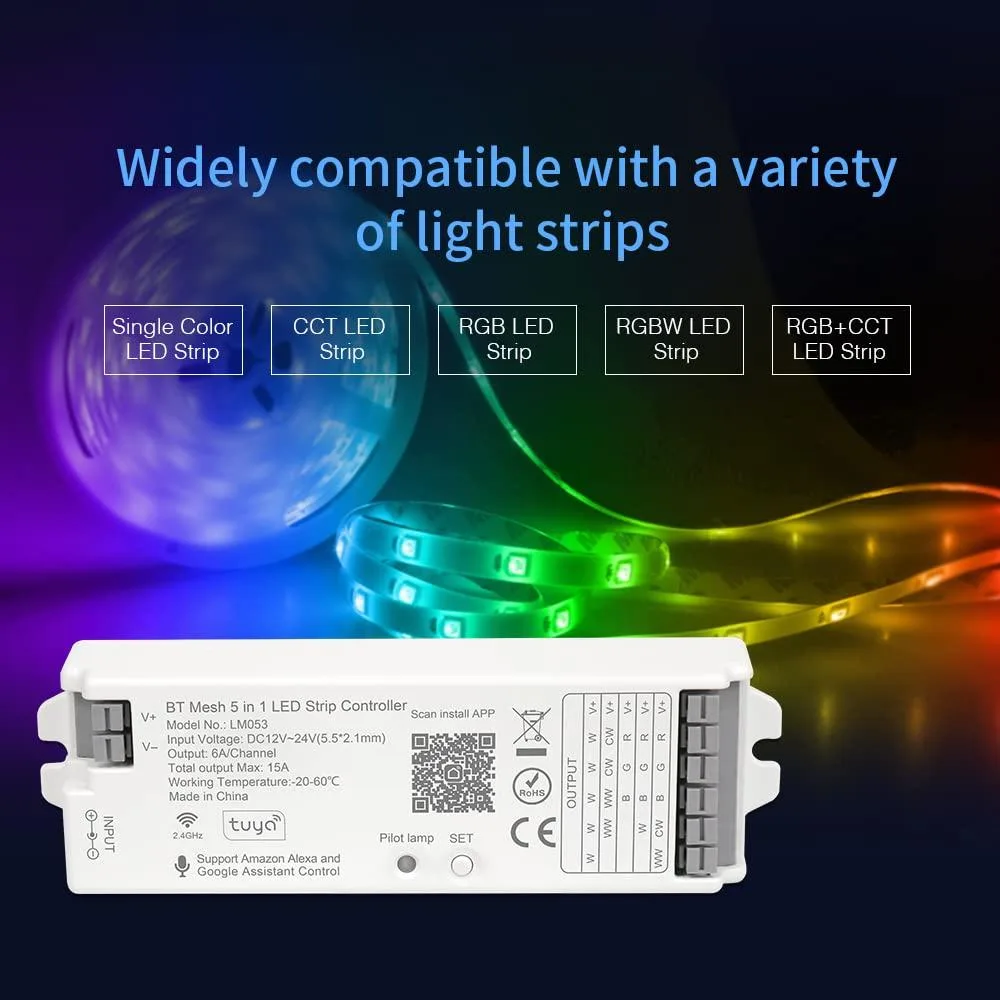

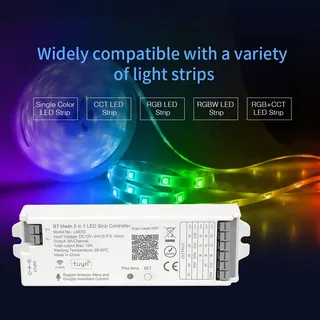

The KEHIPI LM053 controls five types of LED strip — single colour, dual white, RGB, RGBW and RGB plus CCT — from one unit. A SET button selects the output mode to match the connected tape. It runs on DC12V or DC24V input and delivers up to 6A per channel with a 15A total limit.

Mesh relay extends range

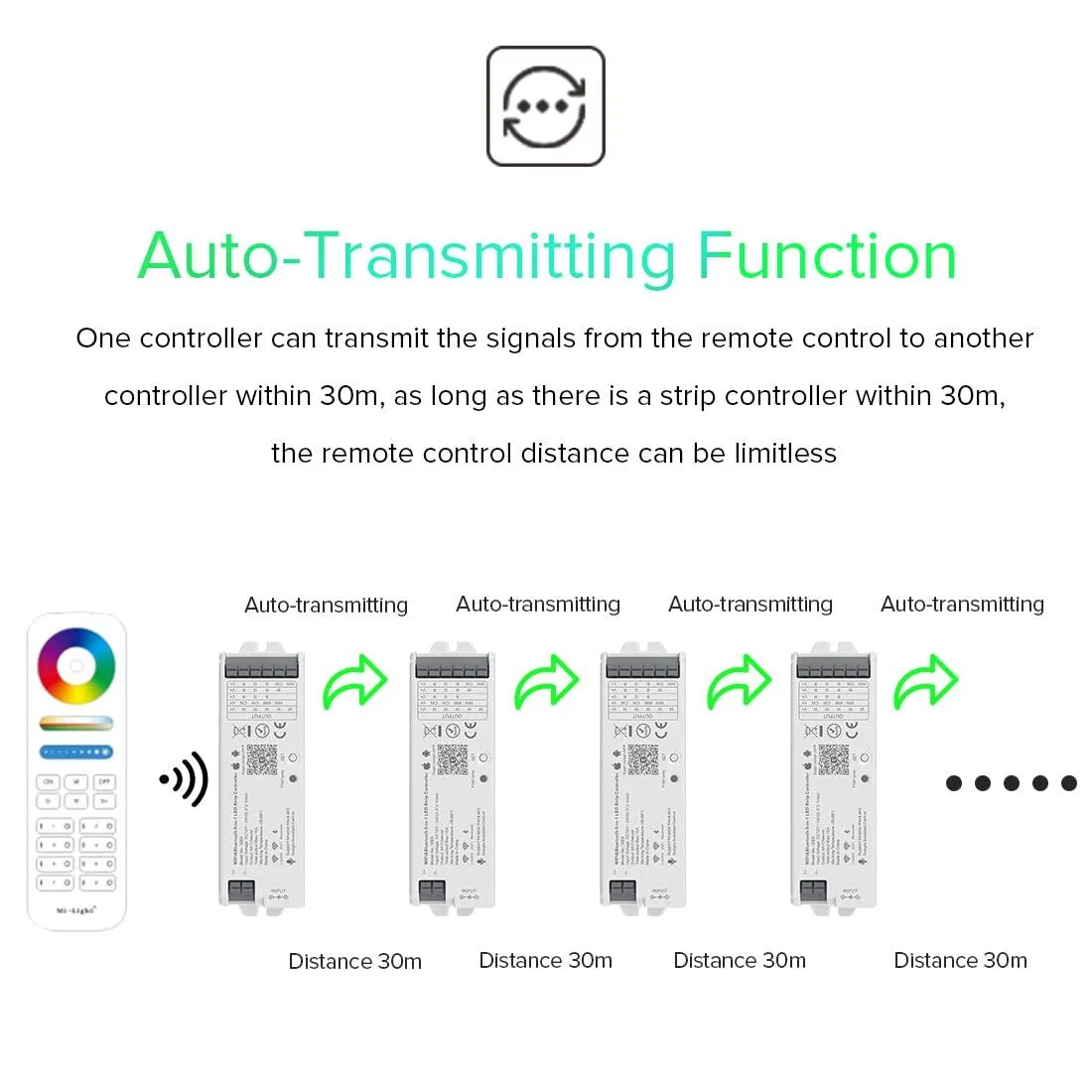

Each controller relays 2.4GHz RF remote signals up to 30m to the next unit, creating a chain that removes practical distance limits. Multiple controllers synchronise automatically when driven by the same remote or smartphone app. The IP30 housing is non-waterproof, so indoor or sheltered mounting is required.

Replaces single-protocol dimmers

Installers who currently run separate dimmers for each strip type can consolidate to one device per zone. The jump is worth it when a project mixes colour-changing and white-tunable runs and needs both RF remote and Bluetooth app control without a Wi-Fi backbone.

Highlights

  • Controls five LED strip types with one device via SET button
  • Bluetooth mesh extends remote range to 30 m between controllers
  • Works without Wi-Fi using RF remote or Smart Life app
  • Delivers up to 15 A total output at 12 V or 24 V
  • Compact 122 × 38 × 22 mm housing fits tight installations

Specifications

BrandBTF-LIGHTING
ModelLM053
ColorWhite
Part NumberLM053
SpecificationsBTF-LIGHTING
Dimensions12.2 in x 3.8 in x 2.2 in
Package ContentsLED Driver, Remote Control

Questions about this item

What Bluetooth Mesh range does the LM053 achieve between controllers?

Each LM053 relays the remote signal up to 30 m (99 ft) to the next controller, so a chain of units can extend control indefinitely as long as every hop stays within 30 m.

What voltage and wiring must the power supply match for the LM053?

The controller accepts DC 12 V or DC 24 V only; the supply voltage must match the LED strip voltage, and polarity must be correct or the unit will be damaged.

How do you select the correct output mode on the LM053 before pairing?

Press the SET button on the controller to cycle through the five modes — single colour, CCT, RGB, RGBW and RGB+CCT — until the mode matches the connected strip type, then pair the remote or app.
