Small rectangular controller, matte finish, labelled terminals, 4.9 by 1.5 by 0.9 inches

KEHIPI

KEHIPI LM052 5in1 Zigbee 3.0 LED Controller 12V 24V 6A 15A

SKU CH-YDH6-WFG55 MPN LM052

Controls 2-pin to 6-pin PWM LED strips — single-colour, dual-white, RGB, RGBW or RGBCCT — via Zigbee 3.0 with Alexa, Google Home and RF remotes, 6 A per channel up to 15 A total at 12 V or 24 V

  • ColorMulticolor
  • SpecificationsBTF-LIGHTING
  • Weight2.4 ounces
  • Package ContentsRemote Control
  • Controls 5 LED types with one device
  • Zigbee 3.0 links to Echo Plus and Tuya gateways
  • 6 A per channel up to 15 A total output
  • Auto-relay extends remote range to 30 m
  • Works with 12 V and 24 V strips

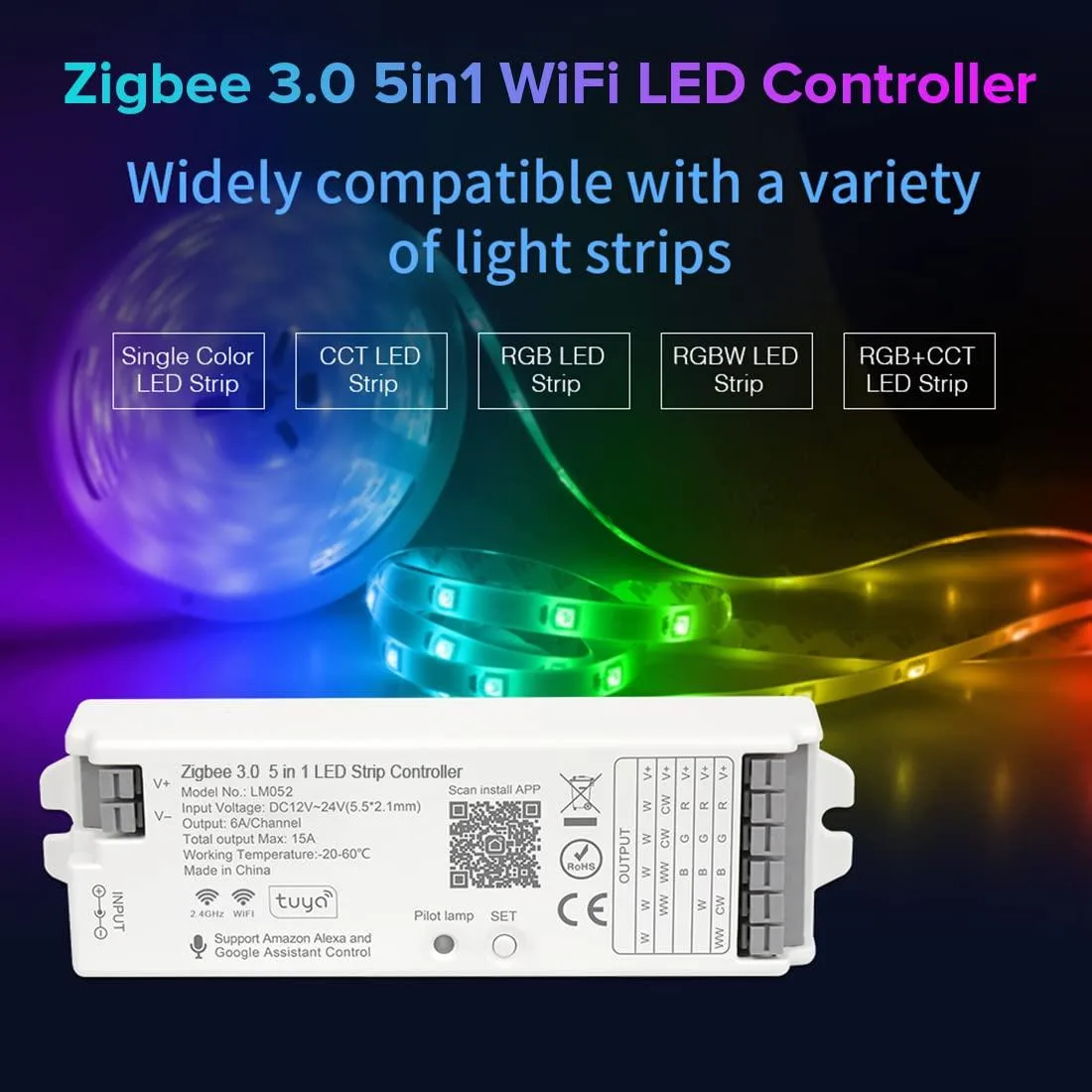

5-in-1 Zigbee 3.0 LED Controller

The KEHIPI LM052 manages single-colour, dual-white, RGB, RGBW and RGBCCT strips through one unit. It accepts 12 V or 24 V input and drives up to 6 A per channel with a 15 A total limit. Builders who want a single controller for multiple strip types will find it useful.

Thermals noise and power draw

The controller operates from -20 to 60 °C with no active cooling, so it runs silently. At 12 V it handles 180 W maximum and at 24 V up to 360 W. Users needing higher wattage or fan-assisted cooling should look elsewhere.

Replaces separate single-colour CCT RGB RGBW

One LM052 replaces five dedicated boxes and adds Zigbee 3.0 plus RF remote support up to 30 m. The jump is worth it when you run mixed strip types and want app, voice and remote control from one device. It does not suit installs that exceed 24 V or need more than 15 A total current.

Highlights

  • Controls 5 LED types with one device
  • Zigbee 3.0 links to Echo Plus and Tuya gateways
  • 6 A per channel up to 15 A total output
  • Auto-relay extends remote range to 30 m
  • Works with 12 V and 24 V strips

Specifications

BrandBTF-LIGHTING
ModelLM052-2
ColorMulticolor
Part NumberLM052-2
SpecificationsBTF-LIGHTING
Weight2.4 ounces
Package ContentsRemote Control

Questions about this item

How do I wire the LM052 controller to a 6-pin RGBCCT strip and which step is most often missed?

Match the 12 V or 24 V supply to the strip voltage, connect the six strip leads to the controller's six output terminals observing polarity, then press the mode button until the LED indicates RGBCCT mode; the step most often missed is verifying the power supply voltage matches the strip before applying power.

What maintenance or replacement will the LM052 need over time?

The controller itself has no user-serviceable parts; long-term upkeep is limited to checking that the DC12 V or DC24 V power supply remains within spec and that wiring connections stay tight, while the included RF remote will eventually need its battery replaced.

At what load does the LM052 hit its thermal or current limit first during sustained use?

The hard limit is 6 A per channel or 15 A total output; at 12 V that equals 180 W and at 24 V it equals 360 W, so the total 15 A ceiling is reached before the per-channel 6 A limit when all five channels are driven hard.
