Yellow digital multimeter with black silicone case, rotary dial, LCD screen, LED-lit jacks, test leads and thermocouple

KEHIPI

KEHIPI HT118A Digital Multimeter 6000 Counts TRMS

SKU CH-WSWP-K1VV2

Measures voltage, current, resistance, capacitance, frequency, duty-cycle, temperature, diodes and continuity with 6000-count TRMS accuracy and CAT III 1000V safety

  • Width13.0048 in
  • Measures up to 1000 V DC and 750 V AC voltage
  • 6000-count TRMS resolution with 2.9 in backlit display
  • CAT III 1000 V and CAT IV 600 V safety ratings
  • Auto-ranging with LED jack guidance for fast setup
  • Non-contact voltage detection with audible and visual alarm

Wide Measurement Range

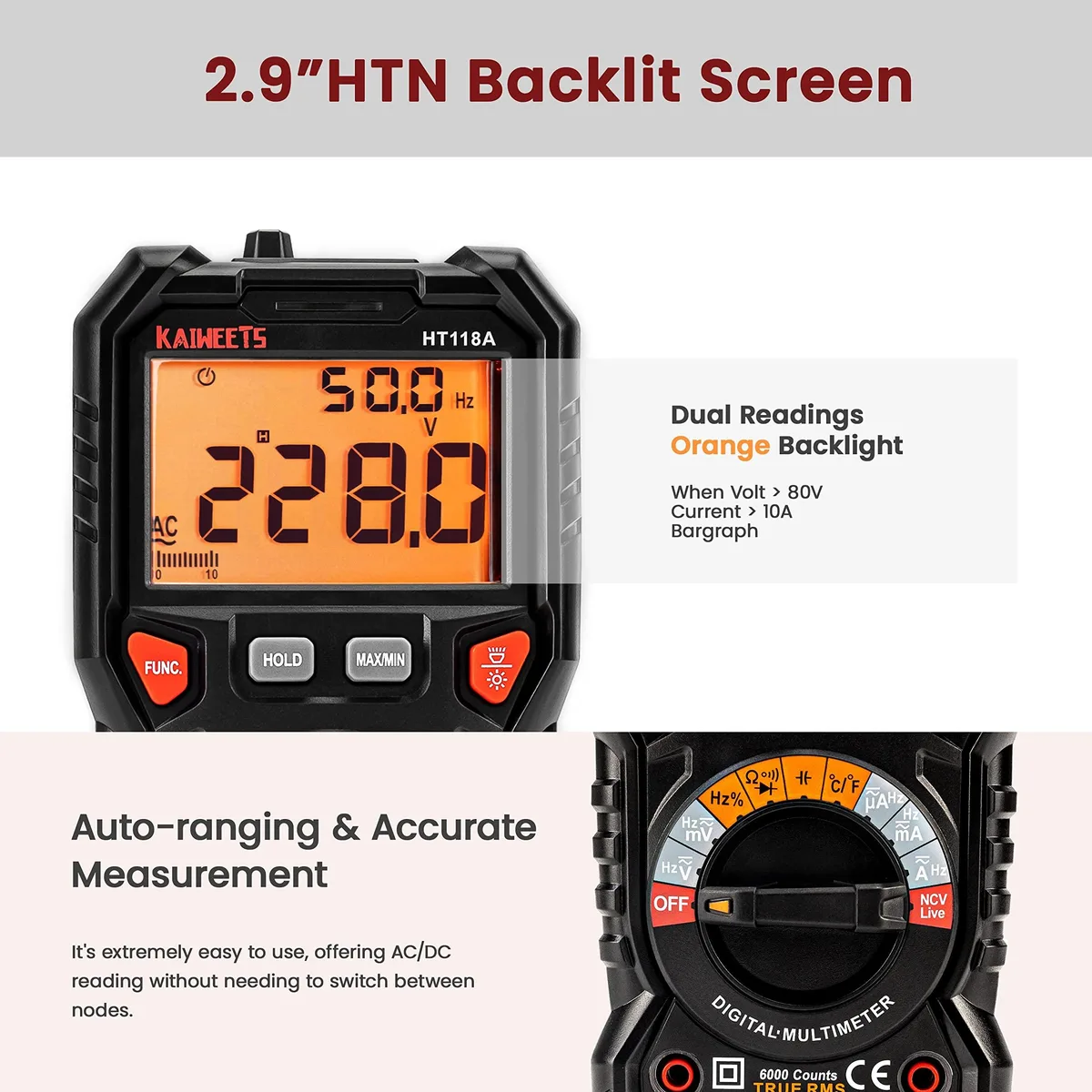

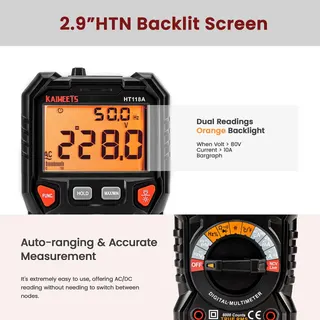

The KEHIPI HT118A digital multimeter measures up to 1000V DC and 750V AC voltage, 10A AC/DC current, and 60 MOhms resistance. It also tests temperature, capacitance, frequency, duty-cycle, diodes, and continuity. The 6000-count, 2.9-inch backlit LCD provides clear resolution for electricians, automotive technicians, and DIY users needing a versatile electrical tester.

Upgrade from Basic Testers

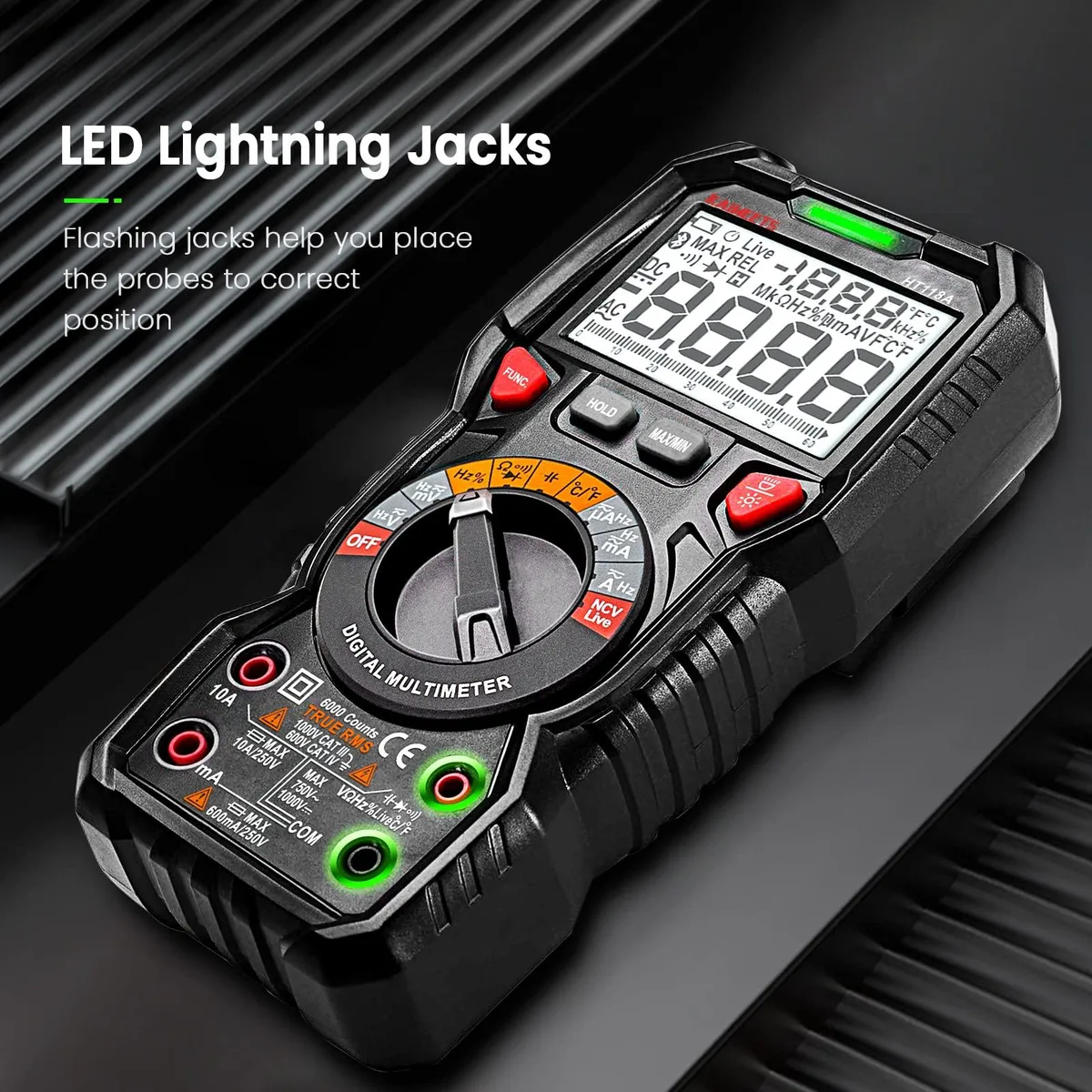

This meter replaces entry-level models that lack True RMS accuracy, auto-ranging, or combined temperature and capacitance functions. The jump is worth it when you need IEC CAT III 1000V and CAT IV 600V safety ratings for higher-energy circuits. LED jack lights guide lead insertion, while non-contact voltage detection with audible and visual alarms adds a safety layer missing on simpler tools.

Sustained Use Features

Double ceramic fuses and a thermistor protection circuit guard against overload across all ranges during extended sessions. The silicone protective case absorbs impact, and the stable kickstand allows hands-free bench work. Min/Max/Average recording tracks signal fluctuations over time, while auto power-off and low-battery prompts preserve the included batteries for reliable long-term operation.

Highlights

  • Measures up to 1000 V DC and 750 V AC voltage
  • 6000-count TRMS resolution with 2.9 in backlit display
  • CAT III 1000 V and CAT IV 600 V safety ratings
  • Auto-ranging with LED jack guidance for fast setup
  • Non-contact voltage detection with audible and visual alarm

Specifications

BrandKAIWEETS
Width13.0048 in

Questions about this item

What jack spacing and lead style does the HT118A need for the test leads to plug in securely?

The meter uses standard 4 mm banana jacks with LED-lit terminals that light up to show the correct input for the selected function; the included leads have removable caps that must be taken off before inserting them fully into the jacks.

Which dial position and jack combination must be selected first when measuring up to 10 A AC or DC current on the HT118A?

Turn the rotary switch to the A (current) position, insert the red lead into the dedicated 10 A jack and the black lead into the COM jack; the LED by the 10 A jack will illuminate to confirm correct placement before you connect to the circuit.

What user-replaceable parts protect the HT118A from overload and when should they be checked?

Two ceramic fuses and a thermistor protection circuit guard all ranges; inspect the fuses if the meter stops reading current or shows an open-circuit indication, and replace them with the same rating and type to maintain CAT III 1000 V / CAT IV 600 V safety.
