White rectangular controller with six screw terminals and status LEDs

KEHIPI

KEHIPI C05W RGBCCT PWM Controller 2.4GHz WiFi Bluetooth

SKU CH-7XEY-7P5JW

A PWM controller drives RGBCCT LED strips up to 15 A total across five channels with 2.4 GHz Wi-Fi, Bluetooth backup and RF remote support

  • ColorWhite
  • SpecificationsBTF-LIGHTING
  • Dimensions3.5 in x 8.0 in x 2.8 in
  • Weight1.4 ounces

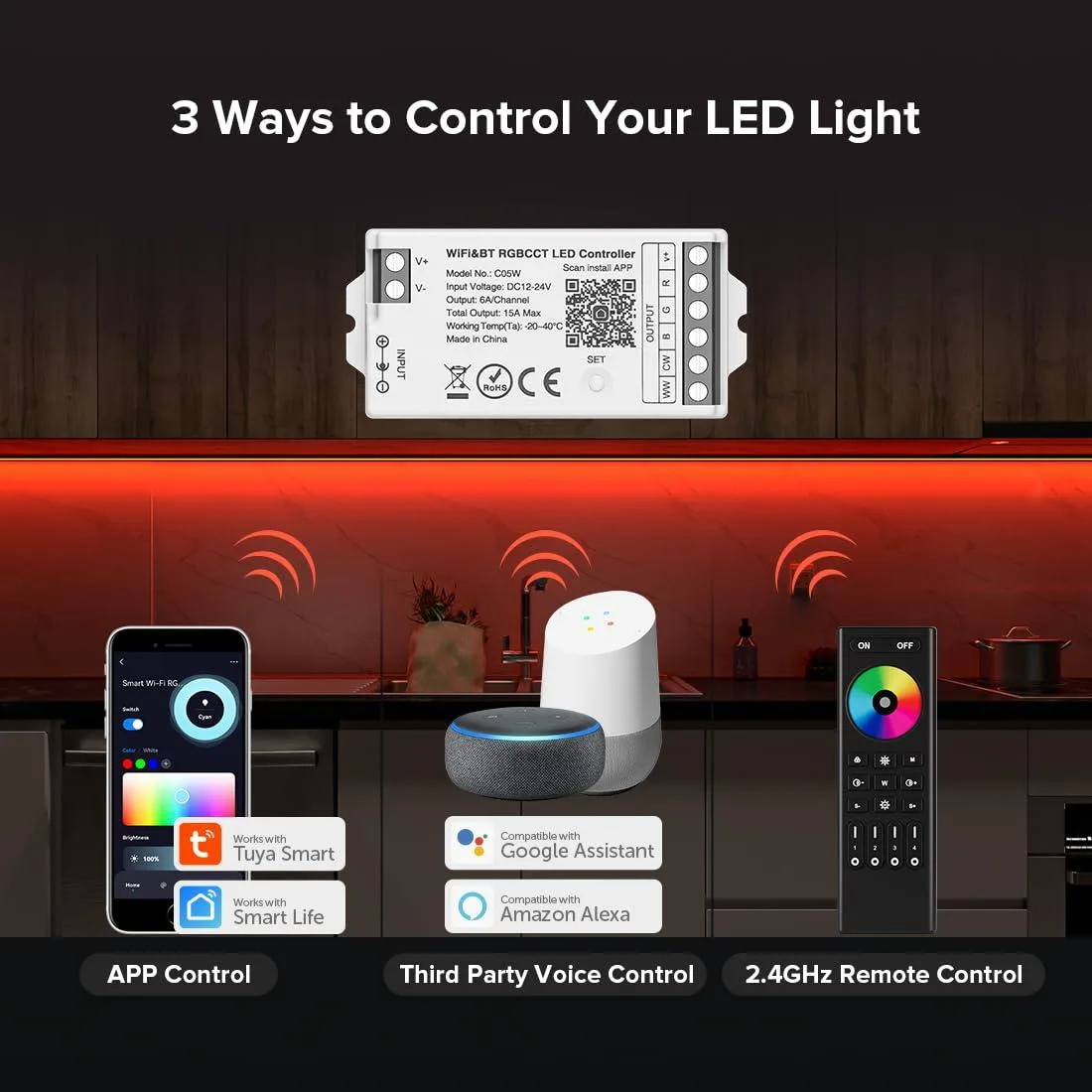

  • Three control methods: RF remote, Tuya app, voice assistants
  • 16 million RGB colours plus tunable dual-white
  • Auto-transmit extends remote range to 99 ft per hop
  • Auto-sync keeps multiple controllers in step
  • Bluetooth backup works when Wi-Fi drops

What it is and who it is for

The KEHIPI C05W is a RGBCCT PWM controller that manages five-channel LED strips without integrated circuits. It accepts DC 12 V to 24 V input and delivers up to 6 A per channel with a 15 A total limit. The unit suits installers who need voice, app and remote control over colour temperature and 16 million RGB shades in residential or light commercial projects.

Build quality and daily connections

A white enclosure measuring 3.5 in by 8.0 in by 2.8 in and weighing 1.4 ounces houses screw terminals for V+, red, green, blue, cool white and warm white leads. The controller operates from -10 °C to 40 °C and connects via IEEE 802.11b/g/n 2.4 GHz Wi-Fi plus a Bluetooth fallback when the router is offline. Compatible RF remotes pair within a 30 m range and can relay signals between multiple controllers for extended coverage.

What it replaces and when to upgrade

The C05W consolidates single-colour, CCT, RGB and RGBW control into one device, removing the need for separate dimmers or colour-temperature modules. It upgrades installations that currently rely on single-protocol remotes by adding Tuya Smart Life app scheduling, Alexa and Google Home voice commands, and automatic synchronisation across zones. Buyers who require addressable pixel control or DMX integration will need a different controller type.

Highlights

  • Three control methods: RF remote, Tuya app, voice assistants
  • 16 million RGB colours plus tunable dual-white
  • Auto-transmit extends remote range to 99 ft per hop
  • Auto-sync keeps multiple controllers in step
  • Bluetooth backup works when Wi-Fi drops

Specifications

BrandBTF-LIGHTING
ModelC05W
ColorWhite
Part NumberC05W
SpecificationsBTF-LIGHTING
Dimensions3.5 in x 8.0 in x 2.8 in
Weight1.4 ounces

Questions about this item

What Wi-Fi standard does the C05W use and what practical limit does it set?

It uses IEEE 802.11b/g/n on 2.4 GHz only, so it cannot connect to 5 GHz networks and shares the 2.4 GHz band with other devices.

What are the physical dimensions and mounting requirements for the C05W?

The unit measures 3.5 in x 8.0 in x 2.8 in and weighs 1.4 ounces; it needs a flat surface and access to DC12V–24V power and six-wire LED strip connections.

How is the C05W installed and which wiring step is most often done wrong?

Connect a DC12V or DC24V supply to the input terminals, then wire the LED strip’s V+, R, G, B, CW and WW leads to the matching six output channels; the common mistake is swapping CW and WW or using a voltage that does not match the strip.
