White rectangular controller with five-pin terminals and screw holes visible

KEHIPI

KEHIPI C04W RGBW WiFi Bluetooth LED Strip Controller 5-pin 6A/Ch 15A max

SKU CH-21MZ-ETHQC

Controls 5-pin RGBW PWM LED strips up to 15 A total via Wi-Fi, Bluetooth backup, RF remote or voice assistants

  • ColorWhite
  • SpecificationsBTF-LIGHTING
  • Dimensions3.5 in x 8.0 in x 2.8 in
  • Weight1.4 ounces
  • Control via Tuya Smart Life app and voice assistants

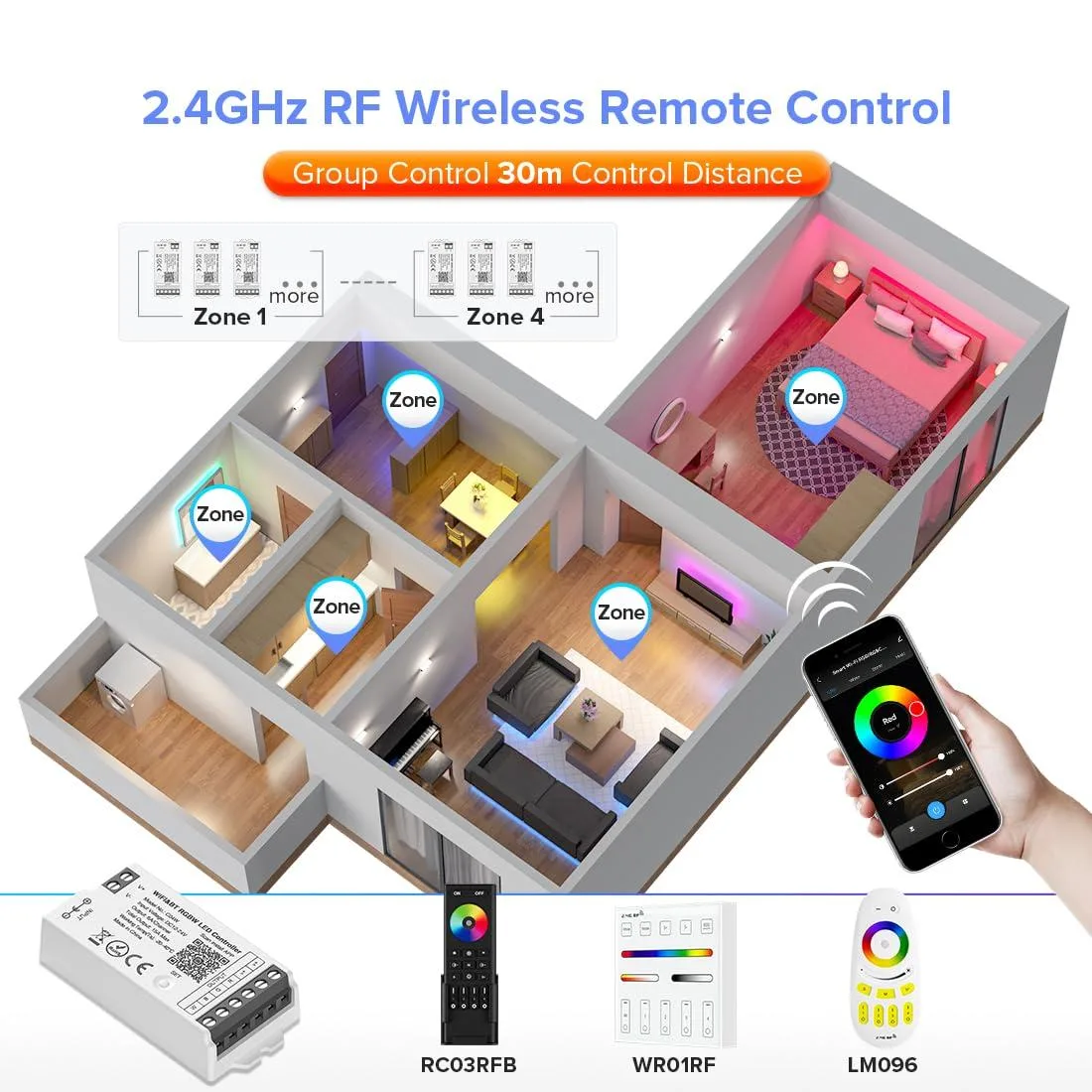

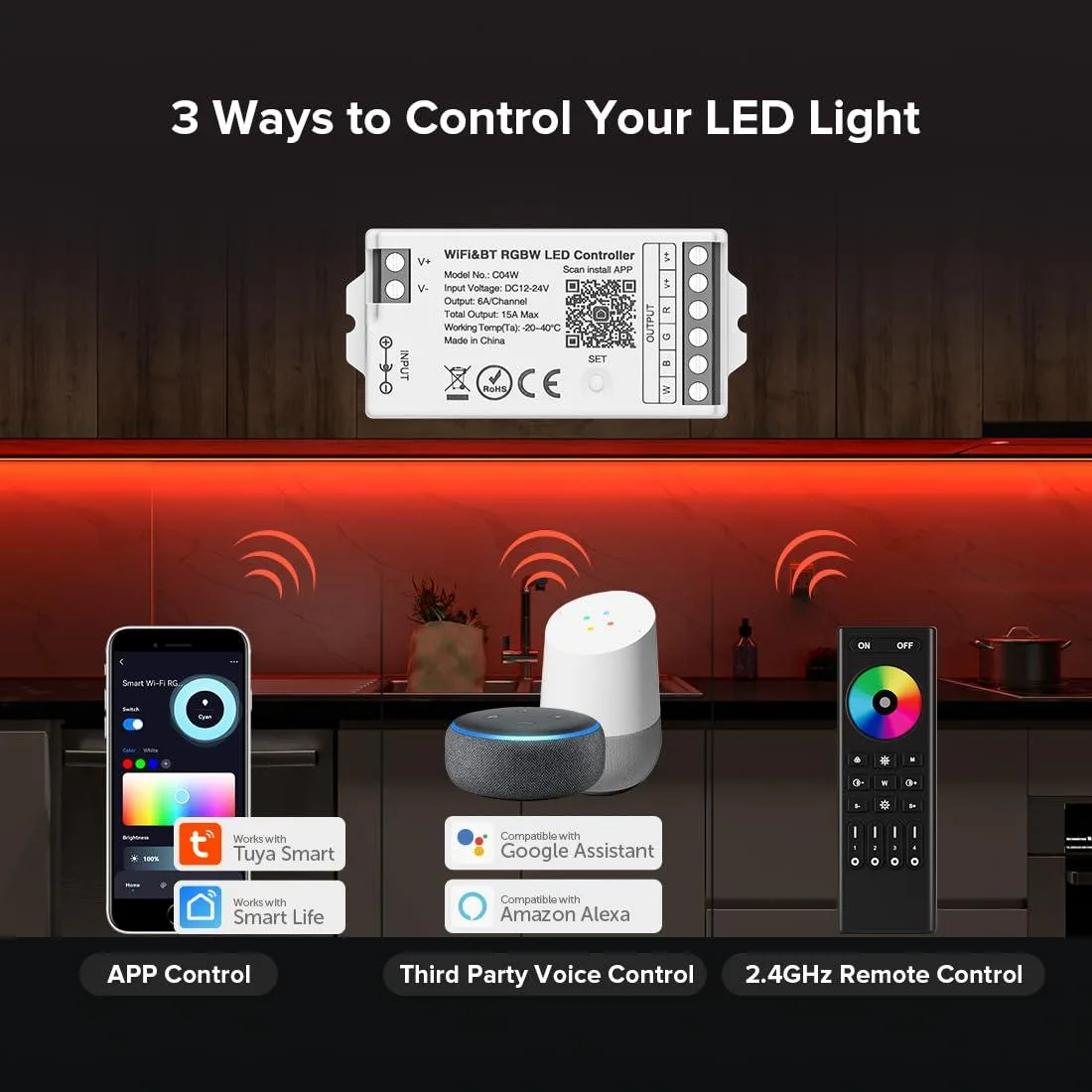

  • Three simultaneous control methods: RF remote, Wi-Fi app, and voice
  • 6 A per channel, 15 A total for RGBW strips
  • Auto-transmitting extends remote range to 99 ft between controllers
  • Bluetooth backup keeps control working when Wi-Fi drops

KEHIPI C04W RGBW LED Controller

The KEHIPI C04W is a 5-pin PWM controller for RGBW LED strips and strings without integrated circuits. It accepts DC12V to 24V input and delivers up to 6.0A per channel with a 15A total maximum. Three control methods operate simultaneously: 2.4GHz RF remotes, Tuya Smart or Smart Life app via Wi-Fi, and Alexa or Google Home voice commands.

Suits RGBW strip installs; not for addressable LEDs

Installers running 5-wire RGBW tape such as FCOB, 2835, 3528, 5050, 5630, 5730 or 3014 types will match the 4-channel output directly. Builders who need individual pixel control or IC-based addressable strips should look at a different controller. The unit also requires a 2.4GHz Wi-Fi network and does not support 5GHz bands.

15A total current limit decides fit

The single specification that determines compatibility is the 15A maximum combined output across four channels at either 12V (180W max) or 24V (360W max). Exceeding this current rating will damage the controller, so the connected LED load must stay within the 15A ceiling.

Highlights

  • Control via Tuya Smart Life app and voice assistants
  • Three simultaneous control methods: RF remote, Wi-Fi app, and voice
  • 6 A per channel, 15 A total for RGBW strips
  • Auto-transmitting extends remote range to 99 ft between controllers
  • Bluetooth backup keeps control working when Wi-Fi drops

Specifications

BrandBTF-LIGHTING
ModelC04W
ColorWhite
Part NumberC04W
SpecificationsBTF-LIGHTING
Dimensions3.5 in x 8.0 in x 2.8 in
Weight1.4 ounces

Questions about this item

How do I confirm the controller is working after wiring my RGBW strip?

Power the unit with a 12 V or 24 V supply, open the Tuya Smart or Smart Life app on 2.4 GHz Wi-Fi, and verify the strip shows 16 million colours, dimming, and saturation changes.

What comes in the box and what must I buy separately?

The controller itself is included; you must purchase a compatible 12 V or 24 V power supply, a 5-pin RGBW LED strip without IC chips, and any supported RF remote such as WR01RF or RC03RFB.

Which version should I choose for a 5-pin RGBW strip?

Select the C04W model — it is the only version in the C01W to C05W series that drives +V R G B W 5-pin PWM strips up to 6 A per channel and 15 A total.
