Small white rectangular LED controller with screw terminals, 3.0 by 1.4 by 0.7 inches

KEHIPI

KEHIPI C02Z Zigbee 3.0 CCT LED Controller 15A 5-24V lighting

SKU CH-FDYF-CKQNA MPN C02Z

Controls dual-white LED strips at 2700–6700 K via Zigbee 3.0 with app, Alexa and Google Home voice, 15 A total output across 5–24 V DC

  • ColorWhite
  • SpecificationsBTF-LIGHTING
  • Dimensions3.0 in x 1.4 in x 0.7 in
  • Package Contents'LED controller', 'User manual'
  • Adjustable 2700 K–6700 K white tones for any mood
  • Zigbee 3.0 links to Echo Plus, Alexa and Google Home
  • 5 A per channel, 15 A total for long LED runs
  • Auto-relay extends control up to 30 m between controllers
  • Compact 74.5 × 35.6 × 16.5 mm fits tight spaces

What this controller does

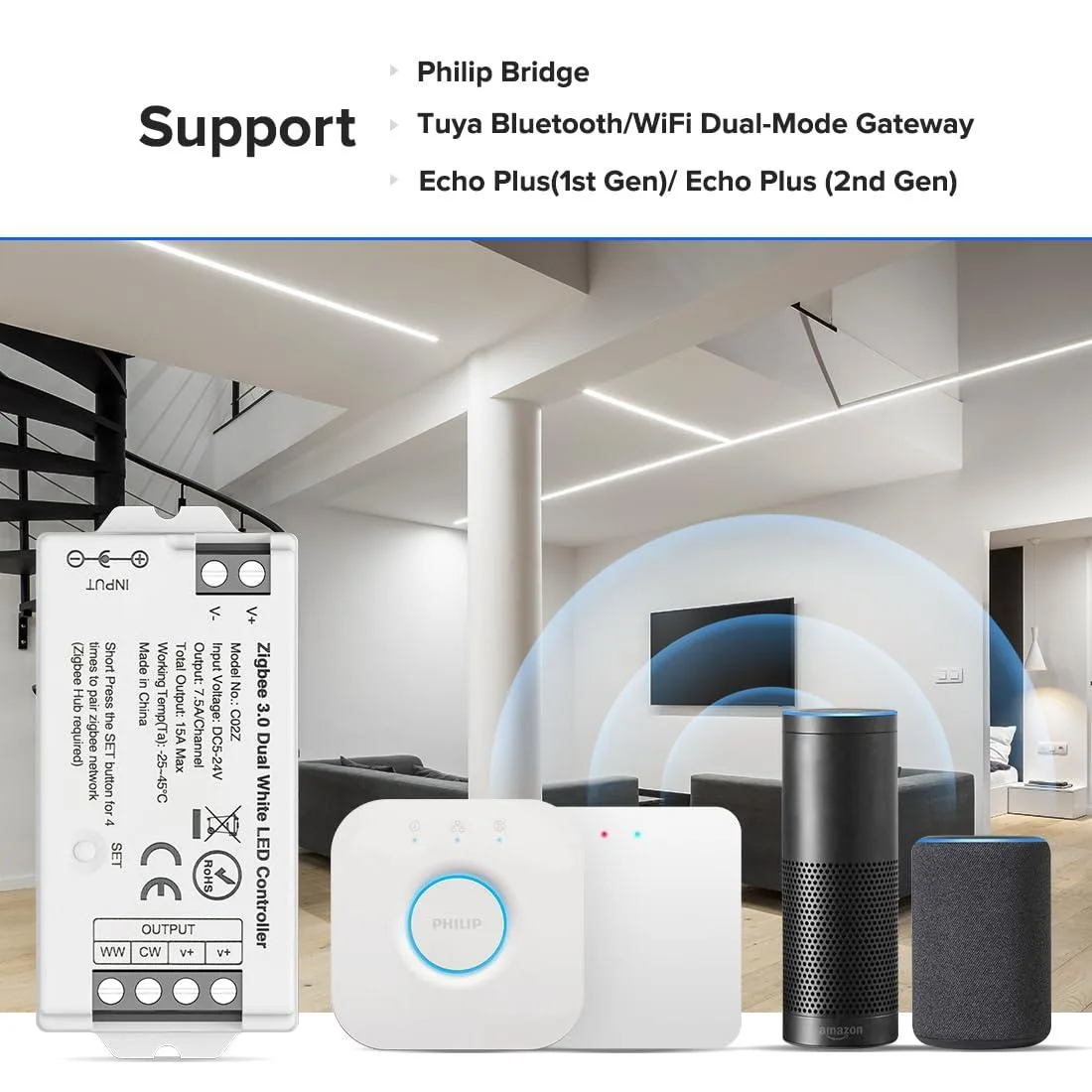

The KEHIPI C02Z is a Zigbee 3.0 LED controller that manages dual-white strips with separate warm and cool channels. It accepts DC input from 5 V to 24 V and delivers up to 7.5 A per channel, 15 A total. The unit pairs with Echo Plus, Echo 4th Gen and Tuya gateways for voice and app control via Smart Life or Tuya Smart.

Sustained output and signal range

Each channel is rated for continuous 7.5 A operation, giving 75 W at 5 V, 180 W at 12 V and 360 W at 24 V without a burst-only rating. The Zigbee 3.0 radio on 2.4 GHz maintains a 30 m control distance and can relay signals controller-to-controller up to 99 ft, allowing indefinite range extension when multiple units are powered. Auto-synchronisation keeps strips in step even if they are switched on at different times.

When to choose this over simpler dimmers

This replaces single-colour dimmers or RF-only controllers when you need adjustable colour temperature from 2700 K to 6700 K and gateway-based automation. It is not suited for installations that rely on handheld RF remotes, as the C02Z does not support them. The jump is worth it for whole-home scenes, tap-to-run routines and multi-room synchronisation without adding repeaters.

Highlights

  • Adjustable 2700 K–6700 K white tones for any mood
  • Zigbee 3.0 links to Echo Plus, Alexa and Google Home
  • 5 A per channel, 15 A total for long LED runs
  • Auto-relay extends control up to 30 m between controllers
  • Compact 74.5 × 35.6 × 16.5 mm fits tight spaces

Specifications

BrandBTF-LIGHTING
ModelC02Z
ColorWhite
Part NumberC02Z
SpecificationsBTF-LIGHTING
Dimensions3.0 in x 1.4 in x 0.7 in
Package Contents'LED controller', 'User manual'

Questions about this item

How much heat does the C02Z produce when running a 15 A load all day?

The controller is rated for a total output of 15 A across two channels at 7.5 A each, with maximum power limits of 75 W at 5 V, 180 W at 12 V and 360 W at 24 V. It operates in ambient temperatures from -25 °C to 45 °C.

What power supply and LED strip must I already have to use this controller?

You need a DC power supply matching your strip voltage — 5 V, 12 V or 24 V with a 5.5 mm × 2.1 mm barrel plug — and a 3-wire CCT strip (V+, CW, WW) such as FCOB, COB, 5630, 5730, 5050, 3528, 3014 or 2835 SMD types without an IC chip.

Will the C02Z work alongside my older RF remote controllers?

No, the C02Z cannot be paired with RF remotes; only the LM052 5-in-1 controller supports that combination. The C02Z communicates via Zigbee 3.0 at 2.4 GHz and can synchronise with other C02Z units up to 30 m apart.
