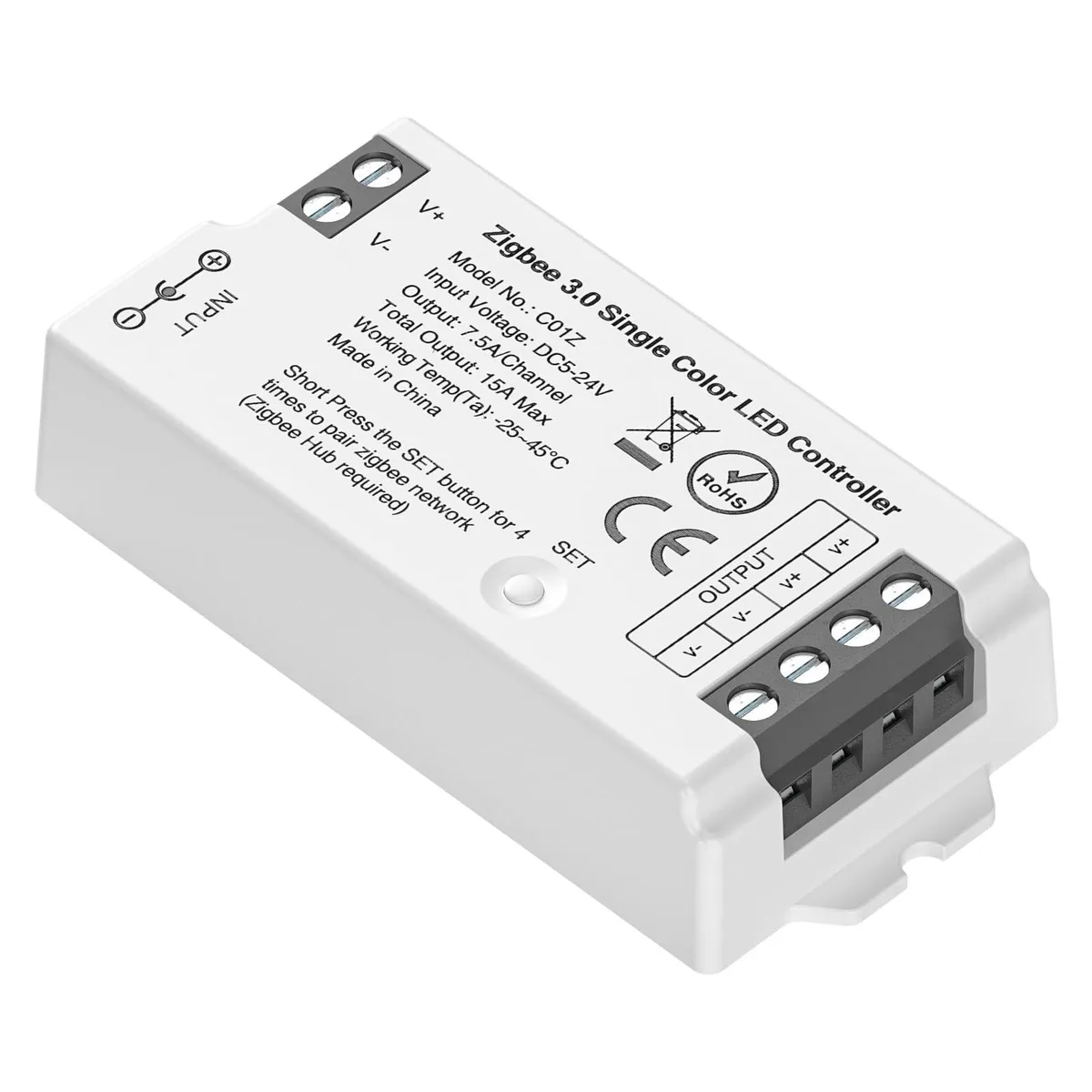

Small white rectangular controller with screw terminals and a 5.5mm DC jack

KEHIPI

KEHIPI C01Z Zigbee 3.0 single-colour LED controller 15A

SKU CH-9A2B-GS2H1 MPN C01Z

Controls single-colour LED strips up to 15 A via Zigbee 3.0 with Alexa and Google Home voice support

  • ColorWhite
  • SpecificationsBTF-LIGHTING
  • Package ContentsLED controller, User manual
  • Controls single-colour LED strips via Zigbee 3.0
  • Handles up to 15 A total output across channels
  • Works with Alexa Echo Plus and Google Home
  • Mesh relay extends range up to 30 metres
  • Operates on DC 5 V, 12 V or 24 V supplies

Zigbee 3.0 single-colour LED controller

The KEHIPI C01Z is a Zigbee 3.0 controller for monochrome PWM LED strips with a two-pin V+ V- connection. It suits installers who want app and voice control of white or single-colour tape without an RF remote. Compatible gateways include Echo Plus, Echo 4th Gen, Tuya Bluetooth/Wi-Fi dual-mode gateways and generic Zigbee bridges for Alexa and Google Home integration. The unit ships new with a user manual.

Thermals noise and power limits

Operating temperature spans -25 to 45 °C with no active cooling so the device runs silently. Maximum output is 7.5 A per channel and 15 A total across DC 5 V, 12 V and 24 V supplies delivering up to 75 W, 180 W and 360 W respectively. Power input uses a 5.5 × 2.1 mm barrel jack and the supply voltage must match the connected LED strip.

Upgrade path and when to choose it

This controller replaces basic inline dimmers or RF-only boxes when you need Zigbee mesh reliability and gateway-based automation. The jump is worth it if you require group control, tap-to-run scenes, scheduling or power-down memory across multiple zones. It does not suit buyers who want RF remote operation or RGB, RGBW or addressable pixel strips. Not compatible with SmartThings hubs.

Highlights

  • Controls single-colour LED strips via Zigbee 3.0
  • Handles up to 15 A total output across channels
  • Works with Alexa Echo Plus and Google Home
  • Mesh relay extends range up to 30 metres
  • Operates on DC 5 V, 12 V or 24 V supplies

Specifications

BrandBTF-LIGHTING
ModelC01Z-2
ColorWhite
Part NumberC01Z-2
SpecificationsBTF-LIGHTING
Package ContentsLED controller, User manual

Questions about this item

How do I wire the DC5V~24V input and the V+ V- LED strip to the controller, and which step do installers often miss?

Connect a DC5V, DC12V or DC24V supply to the 5.5mm×2.1mm jack matching your strip voltage, then attach the strip's V+ and V- wires to the controller's output terminals; the step most often missed is ensuring the supply voltage exactly matches the strip, otherwise the 75W, 180W or 360W limits will be exceeded.

What maintenance will the controller need over time, and is any component user-replaceable?

No user-replaceable parts are specified; keep the ventilation slots clear and verify the operating temperature stays between -25°C and 45°C to avoid thermal stress on the internal electronics.

At what point does the 15A total output limit become the bottleneck during sustained dimming?

The 15A ceiling is reached when the combined load across all channels hits 15A — 75W at 5V, 180W at 12V or 360W at 24V — so sustained full-brightness runs at those wattages will trigger the limit first.
