KEHIPI
KEHIPI B0559 1080p 100fps Autofocus USB 2.0 webcam
1080p USB 2.0 webcam delivers 100 fps at full HD, 180 fps at 720p and 360 fps at 480p with autofocus and a 78° diagonal field of view
- NameB0559
- ColorAutofocus
- InterfaceUSB
- Image Sensor2 megapixels
- Max. Image Resolution1080p
- Effective Pixels16 megapixels
- 1080p at 100 fps for smooth high-definition streaming
- 720p at 180 fps for fluid motion capture
- 480p at 360 fps for ultra-fast frame analysis
- Autofocus lens with 78° diagonal field of view
- USB 2.0 UVC compliant for driver-free Windows and Linux use
1080p 100fps USB 2.0 camera module
The KEHIPI B0559 is a USB 2.0 UVC camera module with a 2 megapixel sensor that captures 1080p video at up to 100 frames per second. It features a 78° diagonal autofocus lens with a programmable focus range from 10cm to infinity. The module draws 1.75W from the USB bus and operates from 0°C to 70°C.
Engineers needing high frame rates at lower
This module suits developers and integrators who require 720p at 180fps or 480p at 360fps for motion analysis, sports tracking or high-speed imaging. It is not for buyers who need a plug-and-play webcam for video calls, because the JST connector requires a separate cable or adapter and UVC compliance is limited. Buyers who want built-in microphones, privacy covers or tripod mounts should look elsewhere.
USB 2.0 interface limits reported frame rates
The USB 2.0 device descriptor caps the software-reported frame rate at 240fps, although the sensor can reach 360fps at 640x480 during preview. This constraint decides whether the module fits a given application, because host software may not expose the highest speeds without custom integration. The proprietary ISP allows full control over exposure, gain, white balance and focus via standard UVC controls on Windows and Linux.
Highlights
- 1080p at 100 fps for smooth high-definition streaming
- 720p at 180 fps for fluid motion capture
- 480p at 360 fps for ultra-fast frame analysis
- Autofocus lens with 78° diagonal field of view
- USB 2.0 UVC compliant for driver-free Windows and Linux use
Specifications
| Brand | Arducam |
|---|---|
| Name | B0559 |
| Model | B0559 |
| Part Number | B0559 |
| Color | Autofocus |
| Interface | USB |
| Image Sensor | 2 megapixels |
| Max. Image Resolution | 1080p |
| Effective Pixels | 16 megapixels |
| Video Capture Resolution | 1080p |
| Focus Settings | Auto Focus |
| Lens | Prime |
| Power Source | USB |
| Weight | 0.11 lb |
| Package Contents | 16MP A298 Autofocus USB2 UVC Camera Module |
Questions about this item
How do I install this webcam and what step do people often miss?

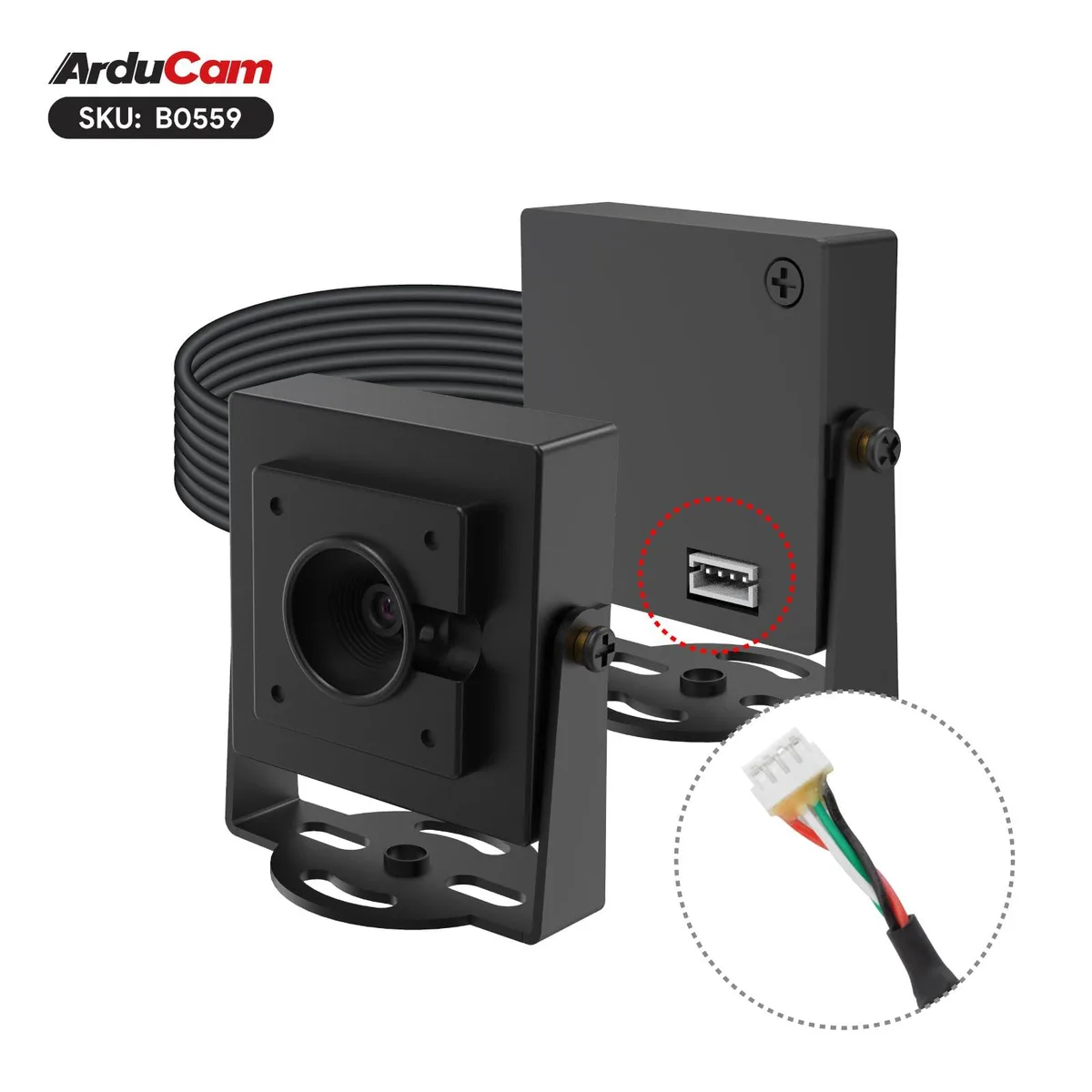

Plug the B4B-ZR JST connector into a USB 2.0 port on Windows or Linux; no driver install is needed because the camera is UVC compliant, but users often forget to select the correct resolution and frame-rate combination in their capture software to unlock 1080p at 100fps or 720p at 180fps.
What maintenance or replacement will this webcam need later?
The module has no moving parts beyond the autofocus lens and no user-serviceable components; keep the lens clean and operate within the 0°C to 70°C range — if the sensor or ISP fails the entire 32×32 mm board must be replaced.
What limit appears first during sustained high-speed capture?
The USB 2.0 interface caps the reported frame rate at 240fps even though the sensor can reach 360fps at 640×480, so sustained 1080p 100fps streams are stable but higher frame rates at lower resolutions hit the bus bandwidth ceiling first.
