Six small green circuit boards with tiny camera lenses and ribbon cables

KEHIPI

KEHIPI 8MP IMX219 Camera Module for Jetson Orin (Pack of 6)

SKU CH-65NG-RHFNS

Six 8 MP IMX219 camera modules deliver up to 3280 × 2464 at 21 fps for Jetson Orin NX and AGX Orin

  • Color8MP IMX219 Standard
  • Weight0.054 kilograms
  • Sharp 8 MP stills at 3280 × 2464 pixels from the IMX219 sensor
  • Smooth 1080p video at 30 fps or 720p at 60 fps for real-time capture

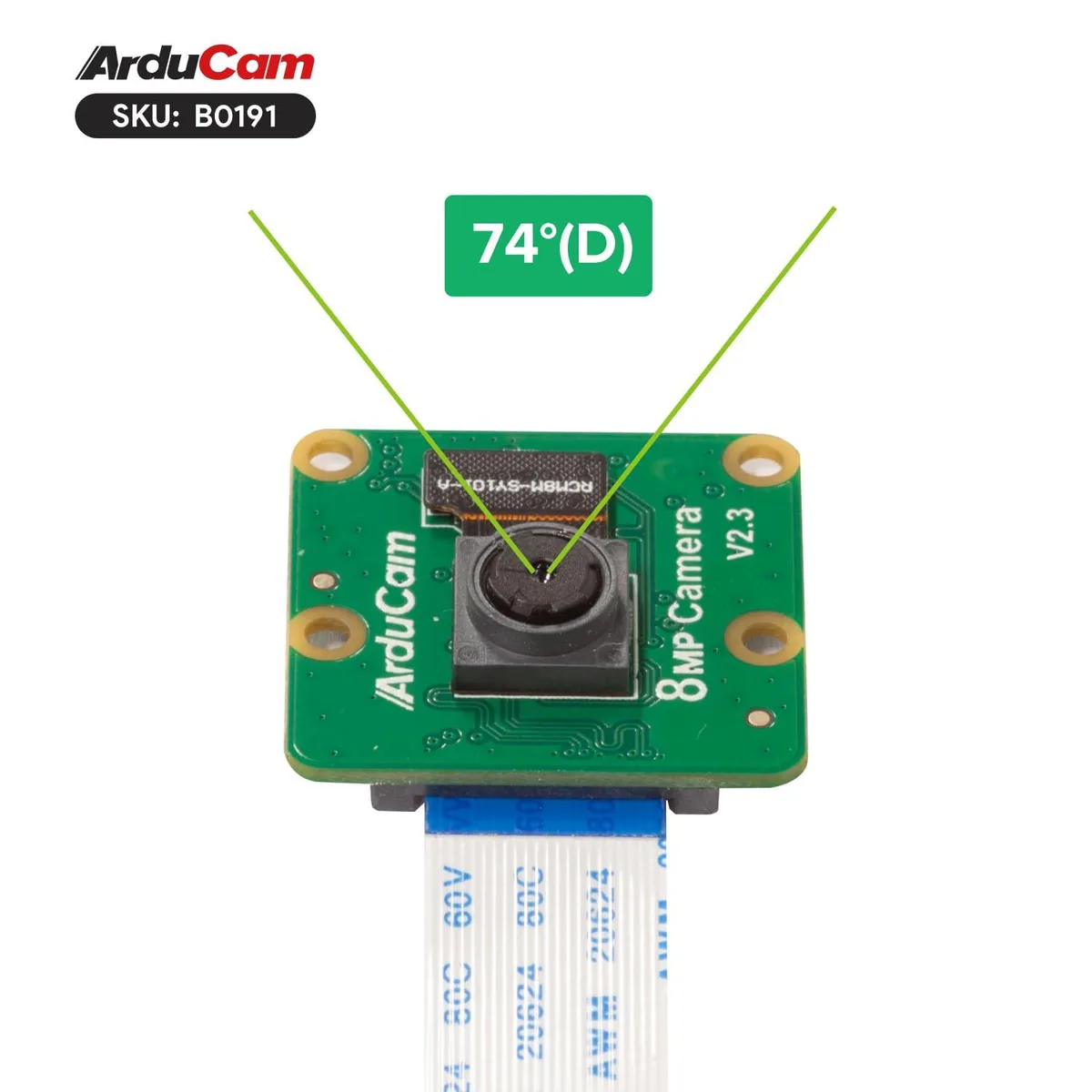

  • Wide 62.2° horizontal field of view with 3.04 mm fixed-focus lens
  • Visible-light only imaging thanks to the built-in IR filter
  • Pack of six lightweight 0.054 kg modules ready for Jetson Orin NX and AGX Orin

Six-camera kit for Jetson Orin

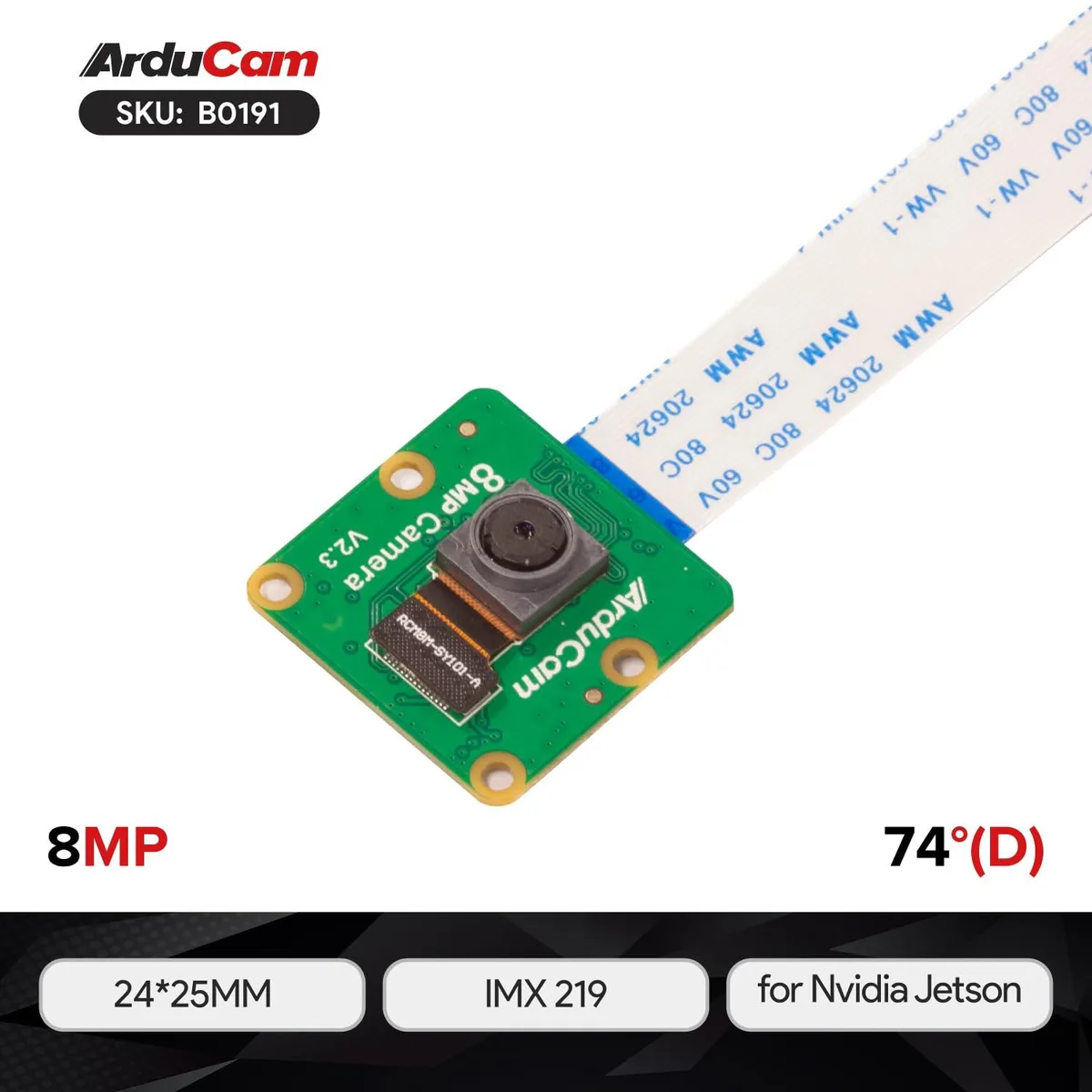

This pack contains six identical 8 MP camera modules built around the IMX219 sensor. Each unit delivers a maximum still resolution of 3280 x 2464 pixels and is designed primarily for NVIDIA Jetson Orin NX and AGX Orin developer kits. The modules also work with Raspberry Pi Compute Module 3 and 3+ but will not fit standard Raspberry Pi boards. Fixed-focus optics keep integration simple for multi-camera vision rigs.

Thermal, noise and power profile

The bare sensor boards have no active cooling and draw very little power, so they add negligible heat to a Jetson carrier. Silent operation is guaranteed because there are no fans or moving parts. Multiple cameras can run simultaneously without creating a thermal bottleneck on the host platform.

Upgrade path and fit

The kit replaces single-camera setups when a project needs synchronized multi-angle capture or stereo vision. The jump is worth it when your application demands six matched viewpoints at up to 21 fps full resolution or 60 fps at 720p. It is not suited for buyers who need autofocus, infrared sensitivity beyond the built-in IR filter, or compatibility with standard Raspberry Pi 3, 3B+ or 4 models.

Highlights

  • Sharp 8 MP stills at 3280 × 2464 pixels from the IMX219 sensor
  • Smooth 1080p video at 30 fps or 720p at 60 fps for real-time capture
  • Wide 62.2° horizontal field of view with 3.04 mm fixed-focus lens
  • Visible-light only imaging thanks to the built-in IR filter
  • Pack of six lightweight 0.054 kg modules ready for Jetson Orin NX and AGX Orin

Specifications

BrandArducam
Part NumberB0191
Color8MP IMX219 Standard
Weight0.054 kilograms

Questions about this item

How do I connect the 15-pin MIPI CSI-2 flex cable to the Jetson Orin carrier board without bending the delicate ribbon?

Align the blue stiffener side toward the board edge, insert the cable straight into the CSI connector with the latch open, then flip the latch down; forcing it at an angle cracks the traces and kills the IMX219 sensor.

Will the fixed-focus 3.04 mm lens or the integral IR filter need replacement after extended outdoor use?

The lens is glued in place and the IR filter is bonded to the sensor cover glass; neither is user-serviceable, so the whole module is replaced if scratches or coating degradation appear.

At 3280 × 2464 resolution the frame rate tops out at 21 fps on Jetson Orin NX; what limits sustained capture at that rate?

The CSI-2 two-lane bandwidth and the IMX219’s 21 fps maximum at full resolution are the bottlenecks; dropping to 1920 × 1080 raises the ceiling to 30 fps.
