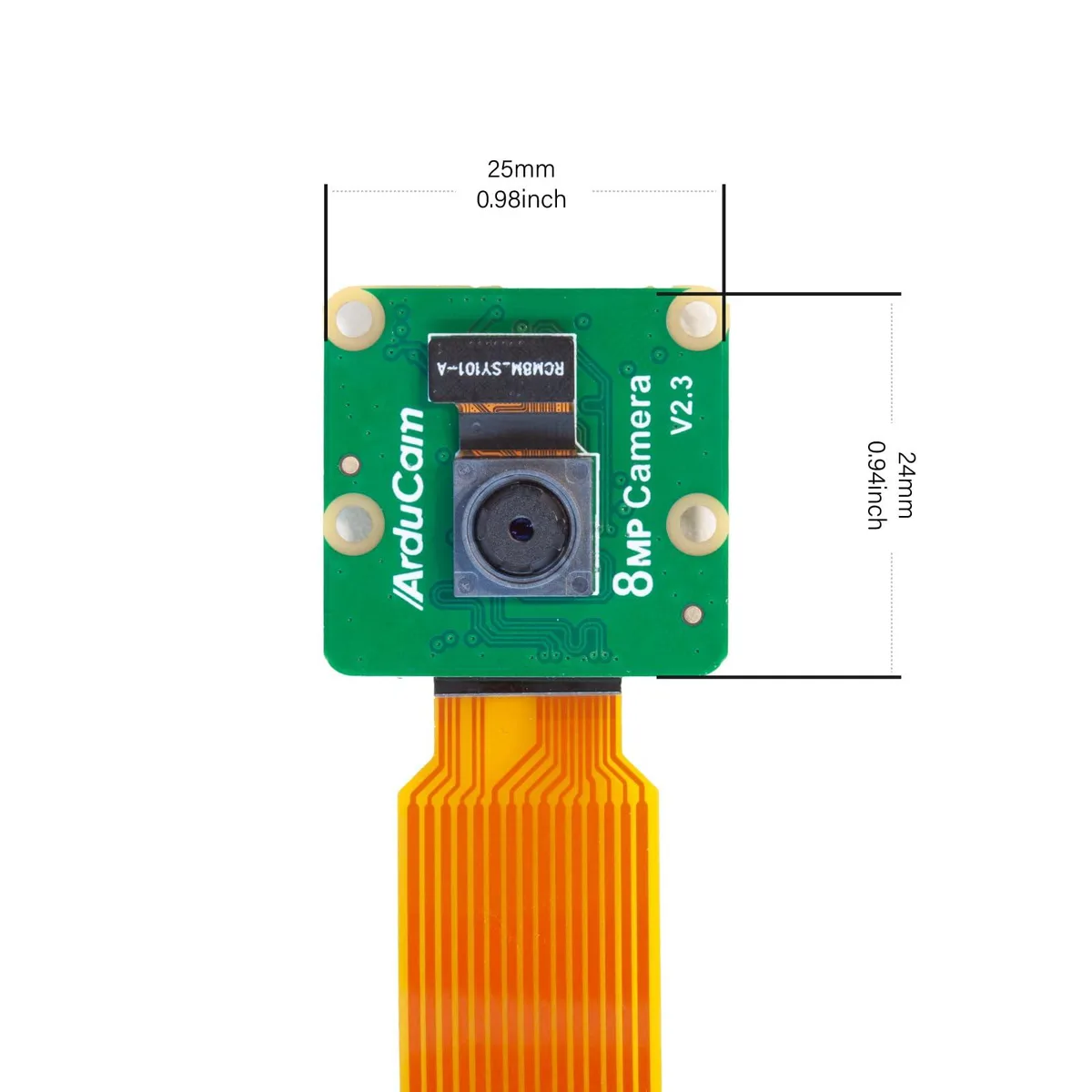

Small green camera board with 150mm ribbon cable and shorter Pi Zero flex cable

KEHIPI

KEHIPI 8MP IMX219 Camera Module 150mm FFC + Pi Zero FPC

SKU CH-S0F5-M6EKQ

An 8 MP IMX219 camera with 150 mm cables for standard and Zero boards, capturing 1080p47 video for machine-vision tasks

  • Color1080P V2-8 Megapixel
  • Features(RPI-CAM-V2 + 5.9"/150mm Flex Cable + Pi Zero Cable

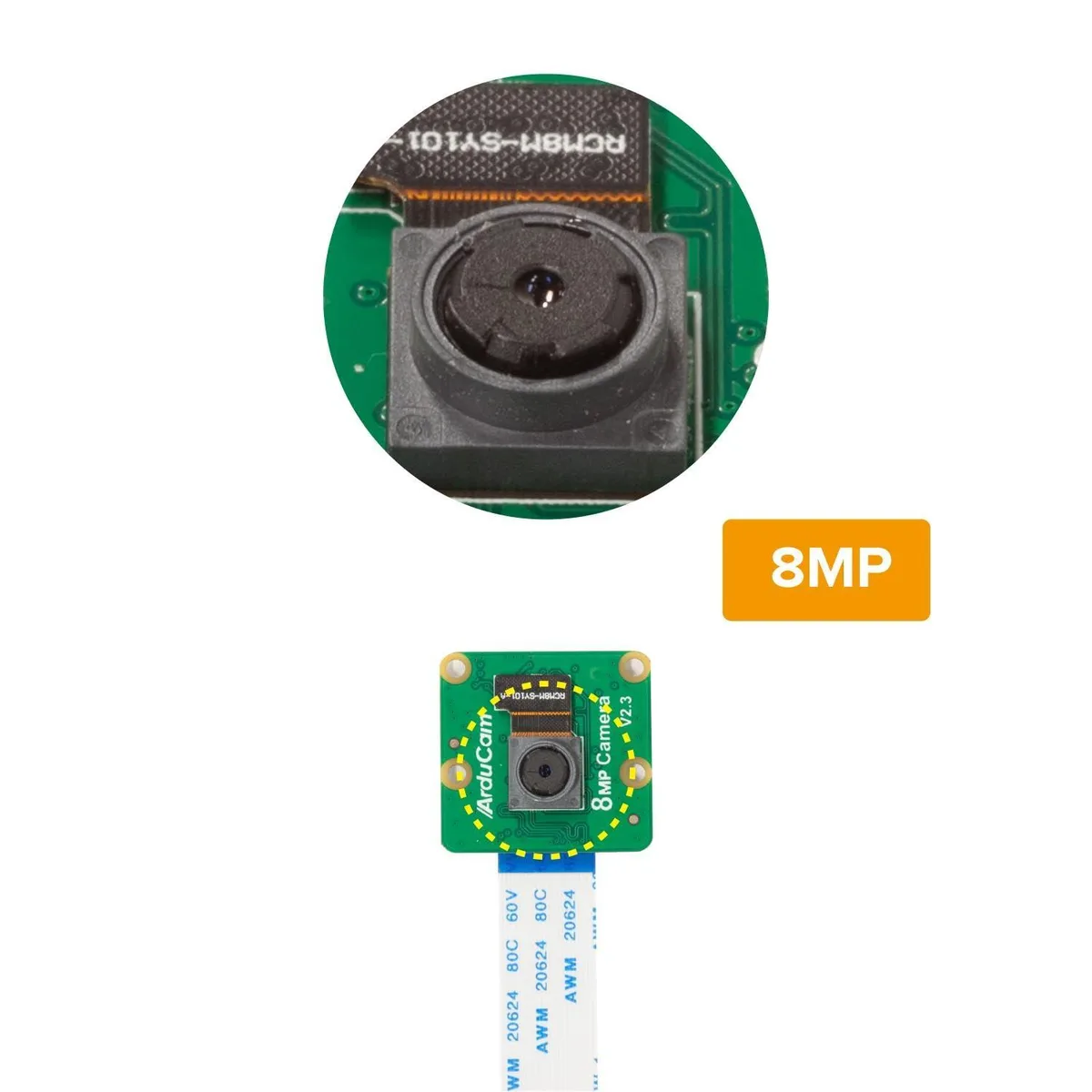

  • 8MP IMX219 sensor captures detailed 3280×2464 stills
  • 1080p47 video with 1640×1232p41 and 640×480p206 modes
  • 150mm FFC cable for standard Pi boards and 150mm FPC cable for Pi Zero
  • Fixed-focus 3.04mm f/2.0 lens covers 62.2°×48.8° FOV from 200mm to infinity
  • Compatible with Raspberry Pi 5, 4B, 3B+, 3, 2, CM3, CM4, Zero W and Zero 2 W

What you get

This bundle includes an 8 megapixel IMX219 camera module with a 150 millimetre 22-to-22 pin FFC cable for standard Raspberry Pi boards and a 150 millimetre 15-to-22 pin FPC cable for Pi Zero and Zero 2 W. The fixed-focus lens has a 3.04 millimetre focal length, f/2.0 aperture and a 62.2 by 48.8 degree field of view. An integral IR-cut filter limits capture to visible light.

Cables and software setup

The two 15 centimetre flex cables let you connect the same camera board to either full-size Pi models or the smaller Zero form factor without buying separate ribbon cables. On Raspberry Pi 5 running Bookworm you must edit /boot/firmware/config.txt, set camera_auto_detect to zero and add dtoverlay=imx219 or dtoverlay=imx219,cam0 depending on the CSI port used; other boards follow the printed manual.

Check before ordering

Verify that your Raspberry Pi model is listed in the supported platform list: Pi 5, 4B, 3B+, 3, 2, CM3, CM4, Zero W or Zero 2 W. Ensure you have a 5 volt power supply capable of at least 1.8 amps for stable operation. The focus distance is fixed from 200 millimetres to infinity, so this module cannot focus on subjects closer than that.

Highlights

  • 8MP IMX219 sensor captures detailed 3280×2464 stills
  • 1080p47 video with 1640×1232p41 and 640×480p206 modes
  • 150mm FFC cable for standard Pi boards and 150mm FPC cable for Pi Zero
  • Fixed-focus 3.04mm f/2.0 lens covers 62.2°×48.8° FOV from 200mm to infinity
  • Compatible with Raspberry Pi 5, 4B, 3B+, 3, 2, CM3, CM4, Zero W and Zero 2 W

Specifications

BrandArducam
ModelArducam for Raspberry Pi Camera Module V2
Color1080P V2-8 Megapixel
Features(RPI-CAM-V2 + 5.9"/150mm Flex Cable + Pi Zero Cable

Questions about this item

Does the IMX219 sensor or fixed-focus lens need periodic cleaning or replacement?

The sealed module has no user-serviceable parts; only the exposed lens surface may need occasional dust removal with a soft brush.

Which frame-rate ceiling — 1080p47, 1640 × 1232p41 or 640 × 480p206 — is reached first during continuous recording?

At full 3280 × 2464 resolution the sensor tops out at 1080p47, so that mode hits its limit before the lower-resolution options.

How warm does the camera board get and what current does it draw when streaming 1080p47 all day?

The module draws its share of the 1.8 A supply budget and runs warm to the touch, but no thermal-throttling point is specified.
