KEHIPI
KEHIPI 5MP OV5647 1080P Webcam with Dual Cables
5MP OV5647 camera module captures 1080p video at 30fps and includes both Pi Zero and standard CSI cables
- NameArducam 5MP OV5647 Mini Camera Module
- ColorExtra Pi Zero cable included
- InterfaceMIPI CSI
- Power SourceMIPI CSI
- Operating Systems SupportedRaspbian (a version of Linux)
- Dimension2.36 in x 0.98 in x 0.94 in
- Native Raspberry Pi compatibility with all models
- Two cables included for Pi Zero and standard connectors
- 5 MP OV5647 sensor captures 1080p video at 30 fps
- Compact 2.36 × 0.98 × 0.94 in design suits tight projects
- Ready for home security or 3D-printer monitoring

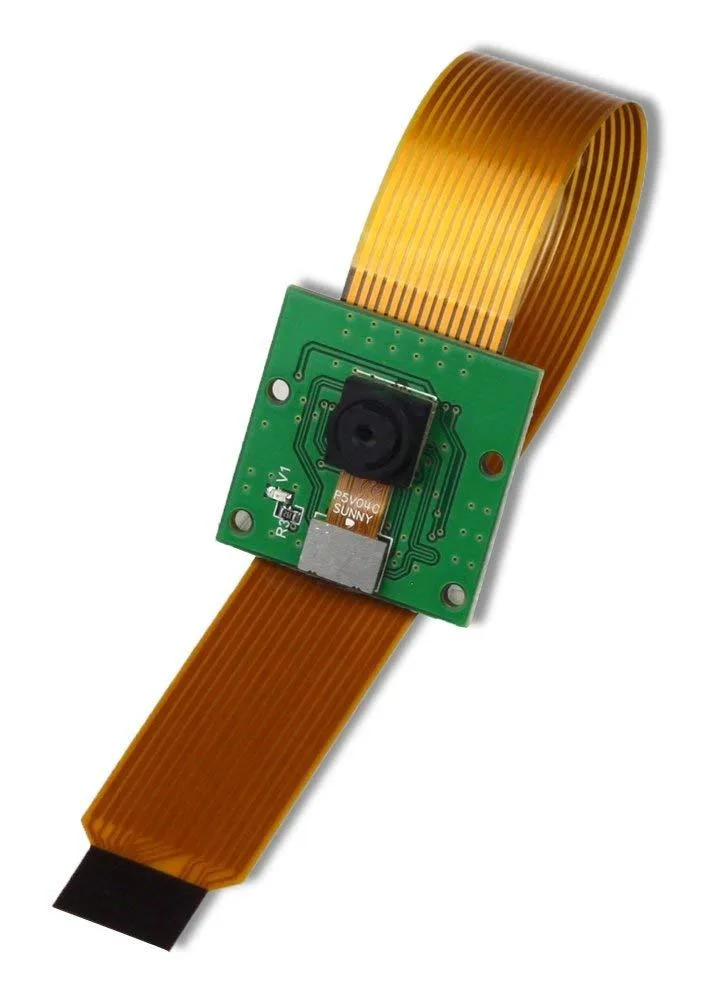

Raspberry Pi Camera Module
The KEHIPI 5MP OV5647 camera module connects to Raspberry Pi boards through the MIPI CSI interface and draws power from the same bus. It runs on Raspbian and other Pi-compatible Linux distributions, making it a drop-in part for existing projects or new builds that need a compact imaging sensor.

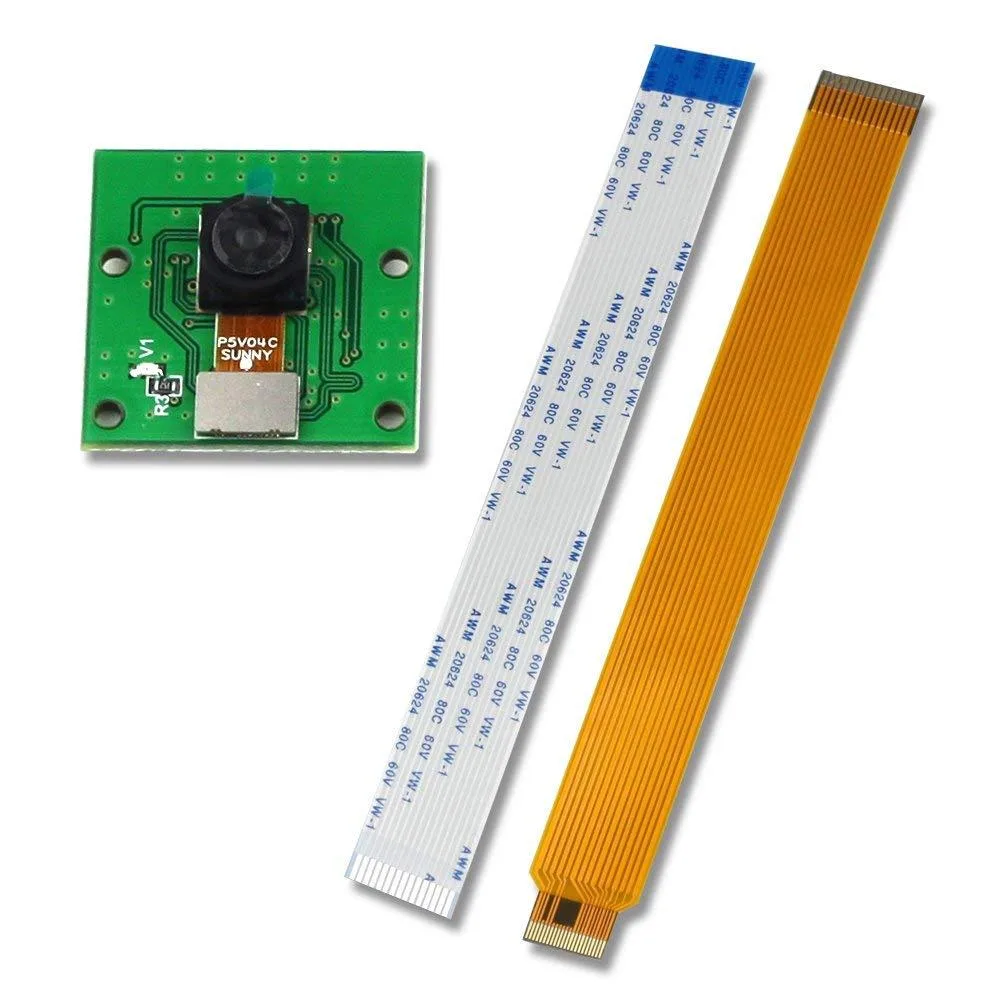

Dual Cables for Pi Zero and Standard Boards
Two ribbon cables are included so the module works with the smaller Pi Zero connector and the larger connector found on Model A and B series boards. This removes the need to source a separate adapter when moving the camera between different Pi form factors.
Makers Building Compact Vision Projects
The 5MP sensor captures 1080p video at 30 fps and 720p at 60 fps, suited to security monitoring, 3D printer oversight or robotics vision in tight spaces. Builders who need higher resolution, global shutter or infrared-cut switching should look at other modules.
Highlights
- Native Raspberry Pi compatibility with all models
- Two cables included for Pi Zero and standard connectors
- 5 MP OV5647 sensor captures 1080p video at 30 fps
- Compact 2.36 × 0.98 × 0.94 in design suits tight projects
- Ready for home security or 3D-printer monitoring
Specifications
| Brand | Arducam |
|---|---|
| Name | Arducam 5MP OV5647 Mini Camera Module |
| Model | Arducam 5MP OV5647 Mini Camera Module |
| Part Number | UCT_B0033+B0087 |
| Color | Extra Pi Zero cable included |
| Interface | MIPI CSI |
| Power Source | MIPI CSI |
| Operating Systems Supported | Raspbian (a version of Linux) |
| Dimension | 2.36 in x 0.98 in x 0.94 in |
| Weight | 0.04 lb |
Questions about this item
What are the exact dimensions of the camera board so I can check it fits my case?
The board measures 2.36 in by 0.98 in by 0.94 in and weighs 0.04 lb.
How do I enable the camera on Raspbian, and what step is often missed?
Run sudo raspi-config, select Interface Options, enable Camera, then reboot; the reboot is the step people forget.
Will the ribbon cable or connector wear out if I swap between Pi Zero and full-size Pi often?
The two included flex cables are rated for repeated insertion; replace a cable if the gold contacts show scratches or the latch feels loose.
