Black metal box with nine HDMI ports on one side, one HDMI and one DVI port on the other, RS232 and optical audio sockets visible

KEHIPI

KEHIPI 3x3 HDMI Video Wall Controller KVM Switch 1080P@60Hz 180° Rotate RS232 13 Modes

SKU CH-2NXH-XBYM6

A 3×3 video-wall controller splits one HDMI or DVI source up to 4K@30 Hz into nine 1080P@60 Hz outputs with 13 display modes, 180° rotation and 5.1-channel optical audio

  • TypeAccessories
  • Create a 3x3 video wall from one source
  • 180° screen rotation for flexible mounting
  • 13 display modes cover many layouts
  • 1-channel optical audio for surround sound

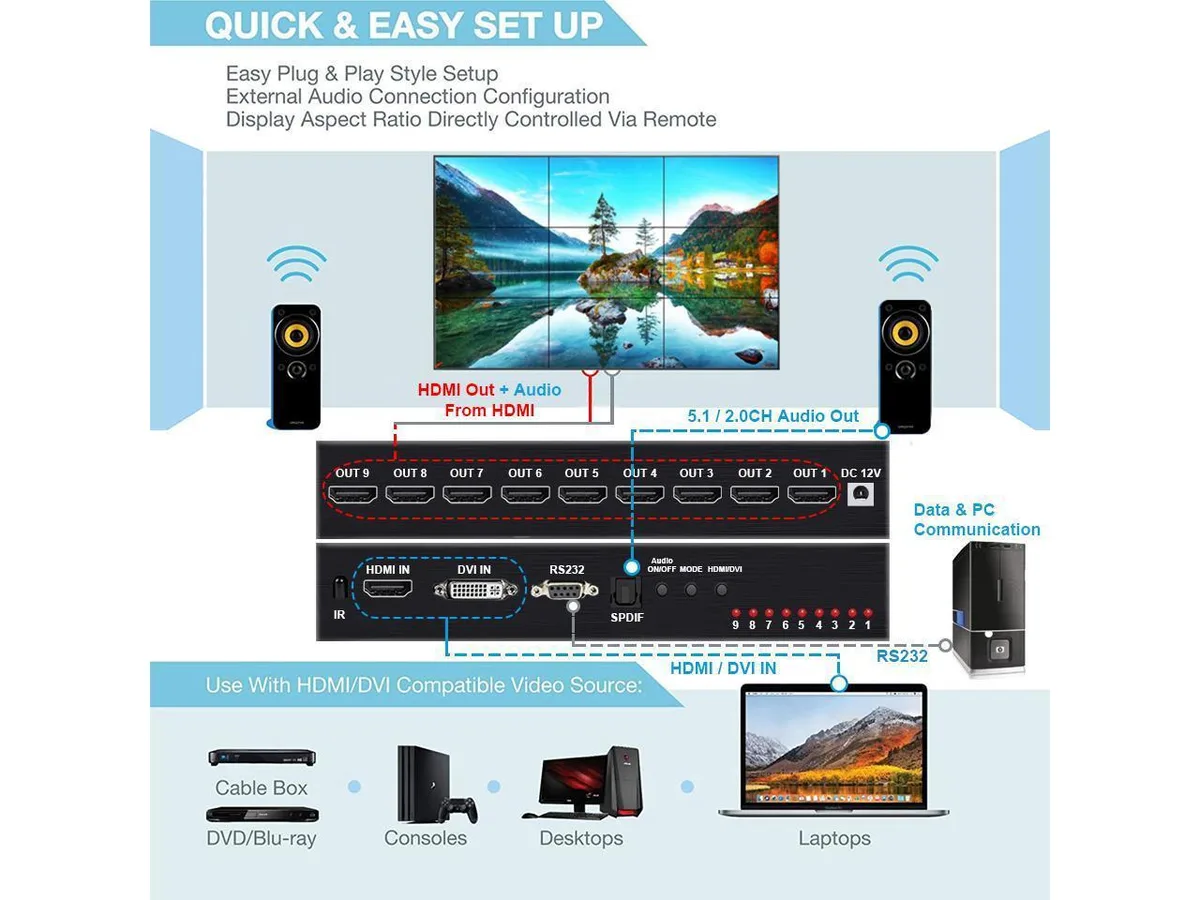

  • Plug-and-play setup with RS-232 control

3x3 HDMI Video Wall Controller

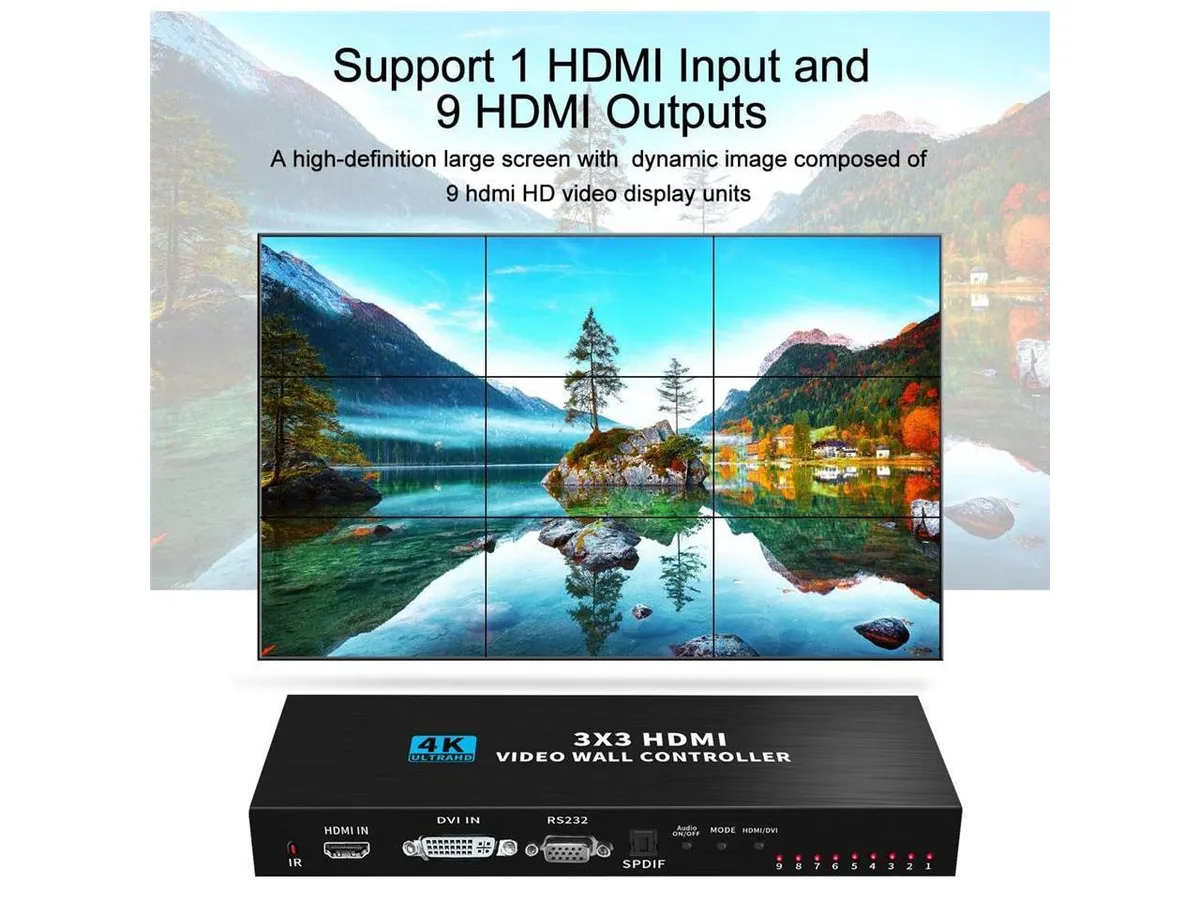

The KEHIPI 3x3 HDMI Video Wall Controller splits one HDMI or DVI source across nine 1080P@60Hz outputs for digital signage or multi-screen installations. It accepts a single 4K@30Hz input and drives a 3x3 grid of displays without additional software. The unit is aimed at installers and operators who need a plug-and-play splicing processor.

Input limited to HDMI 1.4 and HDCP 1.4 at 30 Hz

The processor handles one 3840x2160P@30Hz signal and converts it to nine 1920x1080P@60Hz streams with RGB 4:4:4 24-bit colour. Total output resolution remains 4K across the wall. Audio is restricted to PCM 2-channel stereo via auxiliary or optical ports and may be absent when the source runs at 4K@30Hz. Qualified 19-pin shielded HDMI cables are required for reliable sync.

Metal chassis with RS232 control and 180-degree

A rugged enclosure provides nine HDMI outputs, one HDMI input, one DVI input, an optical audio jack and an RS232 port for automation. The 180-degree rotation function lets each screen be flipped without repositioning the panel. Thirteen preset display modes cover common splicing layouts. The 5.1-channel optical output supports external amplifiers for lossless digital sound.

Highlights

  • Create a 3x3 video wall from one source
  • 180° screen rotation for flexible mounting
  • 13 display modes cover many layouts
  • 1-channel optical audio for surround sound
  • Plug-and-play setup with RS-232 control

Specifications

TypeAccessories

Questions about this item

Which display layout should I pick among the 13 supported modes?

Choose a mode that matches your 3x3 screen grid; each of the 13 presets arranges the nine 1920x1080P@60Hz outputs differently for various aspect ratios and bezel compensation.

What does the 4K input rating mean for my actual 1080P video wall?

The 3840x2160@30Hz input is down-scaled across the nine 1080P@60Hz outputs, giving a combined 4K canvas while each monitor shows a 1080P slice.

How does the HDMI 1.4 interface limit the 3x3 wall in practice?

HDMI 1.4 caps the single input at 3840x2160@30Hz and each of the nine outputs at 1920x1080@60Hz, so 4K@60Hz sources cannot be used.
