Silver dial indicator with white face, black flexible arm, red magnetic base

KEHIPI

KEHIPI 0-1" 0.001" Dial Indicator 13.5" Flexible Arm 176lbs Magnetic Base

SKU CH-BRHS-ZK7N2

Measures 0-1 inch at 0.001 inch resolution on a 13.5 inch flexible arm with 176 lbs magnetic pull

  • Type1 x Dial indicator,1 x Magnetic Base,1 x Rear Cover,1 x Manu
  • Measures 0-1 inch at .001 inch resolution for high-precision tasks
  • 5 inch flexible arm adjusts direction and position with ease
  • Magnetic base holds 176 lbs pull force on thick metal surfaces
  • Laser-etched .001 inch scale under anti-glare lens reads clearly
  • Battery-free mechanical dial resists vibration and works in oily environments

Measurement Range & Resolution

The KEHIPI dial indicator measures from 0 to 1 inch with a resolution of 0.001 inch. It suits machinists, woodworkers and 3D-printer operators who need repeatable readings on small dimensions. The mechanical, battery-free design works continuously in oily or dusty shops.

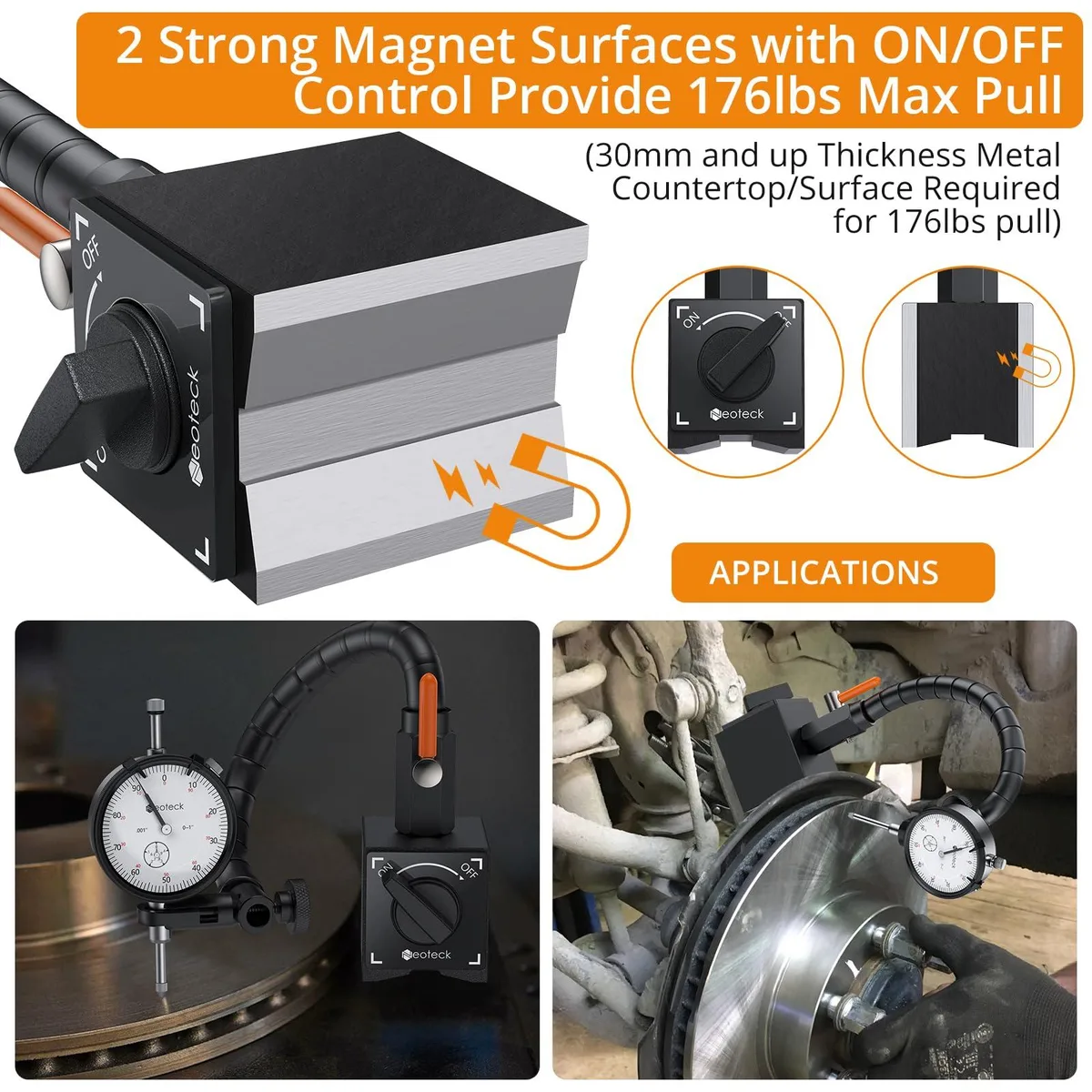

Magnetic Base & Flexible Arm

A 13.5 inch flexible arm mounts on a magnetic base rated for 176 lbs pull force (80 kg). The arm clamps shanks from 0.157 to 0.551 inch and rotates freely for precise positioning. Full holding power requires a ferrous surface thicker than 30 mm.

Critical Surface Requirement

The 176 lbs magnetic force is only achieved on a clean metal workpiece exceeding 30 mm thickness. On thinner plate, non-ferrous metal or uneven surfaces the grip drops sharply and the indicator can shift during use.

Highlights

  • Measures 0-1 inch at .001 inch resolution for high-precision tasks
  • 5 inch flexible arm adjusts direction and position with ease
  • Magnetic base holds 176 lbs pull force on thick metal surfaces
  • Laser-etched .001 inch scale under anti-glare lens reads clearly
  • Battery-free mechanical dial resists vibration and works in oily environments

Specifications

Type1 x Dial indicator,1 x Magnetic Base,1 x Rear Cover,1 x Manual,1 x Portable Box

Questions about this item

What is the measuring range and resolution of the KEHIPI dial indicator?

The dial indicator measures from 0 to 1 inch with a resolution of 0.001 inch, featuring laser-etched graduations under an anti-glare crystal lens for clear readings.

What are the magnetic base specifications and required mounting surface?

The flexible arm magnetic base provides 176 lbs (80 kg) maximum pull force, has a 13.5 inch arm length, and requires a metal working surface thicker than 30 mm for full holding power.

How is the dial indicator set installed and adjusted?

Secure the magnetic base on a metal surface over 30 mm thick, mount the indicator onto the flexible arm, adjust the arm position using the rotating joints, then lock it in place for measurement.
