Two compact lithium-ion batteries and a small black charger with four slots and USB-C cable

Kastar

Kastar NP-BY1 2-pack battery and quadruple charger

SKU CH-DDJ5-61D17

Two lithium-ion batteries and a compact charger that powers four cells simultaneously via USB-C or micro-USB

  • TypeBattery & Charger
  • Pack1 Charger + 2 Batteries
  • ChemicalLi-Ion
  • Capacity4.07 Wh
  • Dimensions3.5*2*2.5 Inch
  • FeaturesQuadruple USB charger, can charge 4 batteries at the same ti
  • Charge four batteries at once with the quadruple USB charger

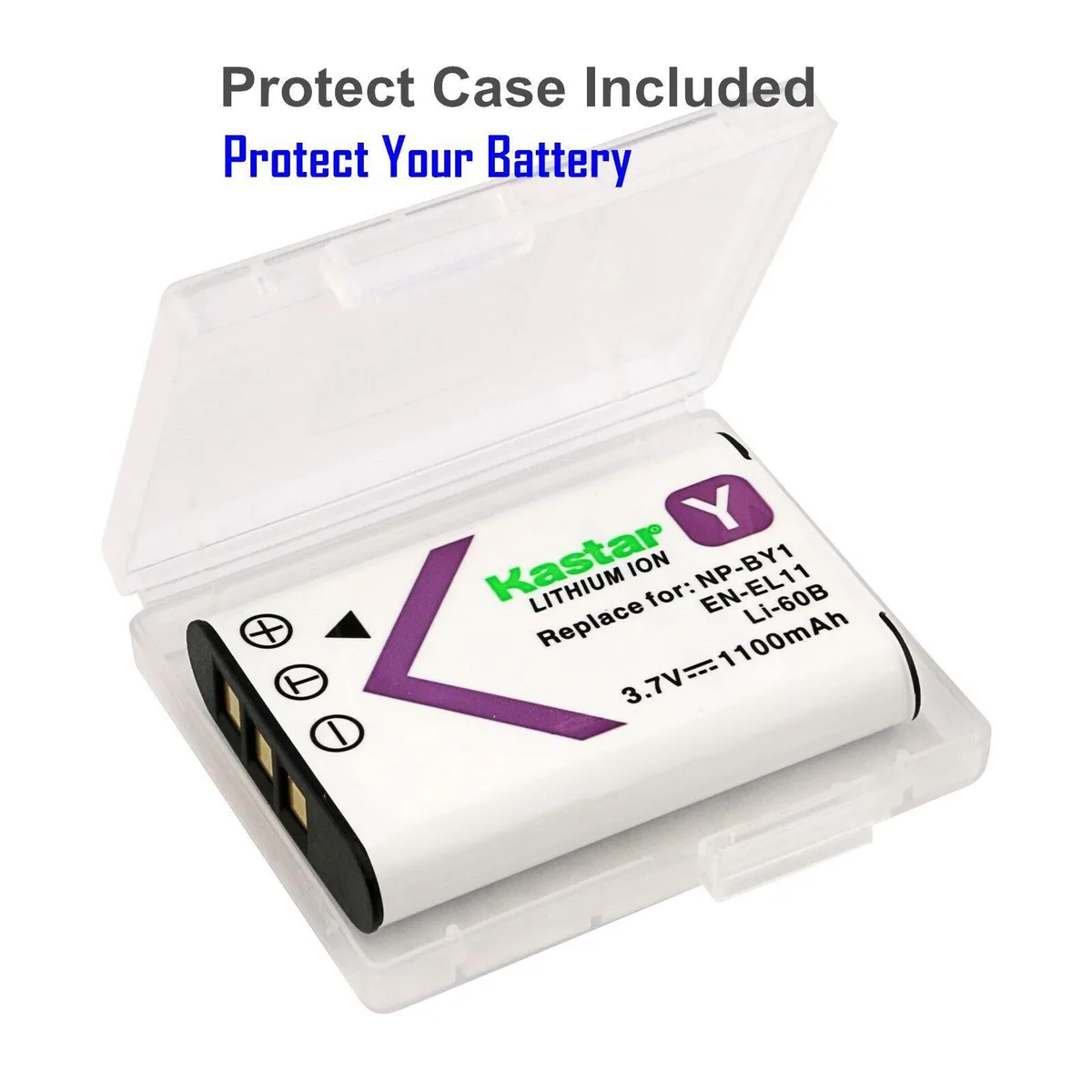

  • Two 1100 mAh lithium-ion batteries deliver 4.07 Wh each
  • Charger accepts Micro-USB and Type-C inputs for flexible power

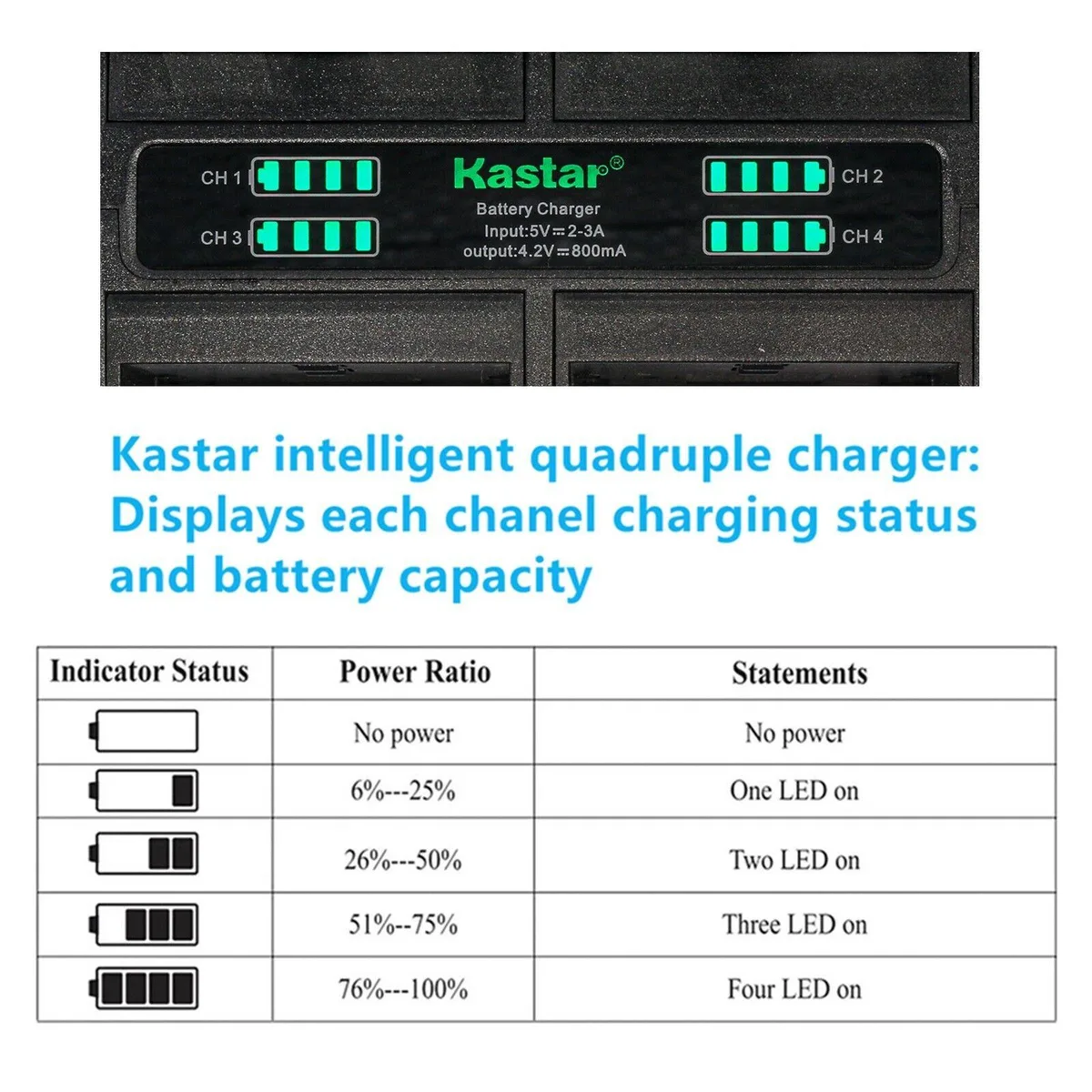

  • Intelligent display shows charging status and battery capacity
  • Compatible with Sony NP-BY1, Pentax D-LI78, Ricoh DB-80 and Sanyo DB-L70

Quadruple charger for four batteries

The kit includes a compact charger that powers up to four NP-BY1 type cells simultaneously. Micro-USB and USB-C inputs accept a standard 5 V supply, and a Type-C cable is provided. Intelligent circuitry shows charge status and remaining capacity for each bay.

Lithium-ion cells rated at 4.07 Wh

Two 3.7 V batteries deliver 1100 mAh each, matching the original D-LI78 and NP-BY1 specifications. The charger adjusts output current automatically: 800 mA when one or two cells are inserted, 500 mA with three or four. No AC adapter is included, so any 15 W USB power source will run it.

Replaces single-bay chargers for multi-camera kits

Photographers carrying several compatible Pentax, Sony, Ricoh or Sanyo models can replenish all spares in one session. The swap-in plate design means the same charger works with other battery types when the appropriate plate is fitted. Single-camera owners who rarely need more than one spare gain less benefit.

Highlights

  • Charge four batteries at once with the quadruple USB charger
  • Two 1100 mAh lithium-ion batteries deliver 4.07 Wh each
  • Charger accepts Micro-USB and Type-C inputs for flexible power
  • Intelligent display shows charging status and battery capacity
  • Compatible with Sony NP-BY1, Pentax D-LI78, Ricoh DB-80 and Sanyo DB-L70

Specifications

BrandKastar
ModelNP-BY1
Part NumberLHD4-2B-BY1-B
TypeBattery & Charger
Pack1 Charger + 2 Batteries
ChemicalLi-Ion
Capacity4.07 Wh
Dimensions3.5*2*2.5 Inch
FeaturesQuadruple USB charger, can charge 4 batteries at the same time

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What Micro-USB and Type-C input power does the Kastar NP-BY1 charger accept?

The charger accepts 5V 2-3A 15W through both Micro-USB and Type-C ports, and a Type-C cable is included.

What are the physical dimensions of the Kastar NP-BY1 quadruple charger?

The charger measures 3.5 by 2 by 2.5 inches, making it compact for travel or desk use.

How do you correctly insert the batteries into the Kastar NP-BY1 charger to start charging?

Align each battery's contacts with the corresponding plate pins; the intelligent display then shows charging status and capacity for each slot.
