Rectangular black battery and compact dual-slot USB charger with LCD screen

Kastar

Kastar LB-060 1700 mAh battery with LTD2 USB charger

SKU CH-VH32-5AD5S

A 1700 mAh lithium-ion battery with a dual USB charger that powers two cells at once and shows charge status on an LCD

  • TypeBattery & Charger
  • Pack1 Charger + 1 Battery
  • ChemicalLi-Ion
  • Capacity6.29 Wh
  • Dimensions5*3*2 Inch
  • FeaturesLCD USB Dual charger, can charge 2 batteries at the same tim
  • 1700 mAh Li-Ion cell powers compatible Pamiel camcorders
  • LCD dual charger shows real-time status and capacity
  • Micro-USB and Type-C inputs give flexible power sources
  • Charges two batteries simultaneously at 800 mA each
  • Compact 5×3×2 in kit includes charger, battery and cable

Replacement battery and charger kit

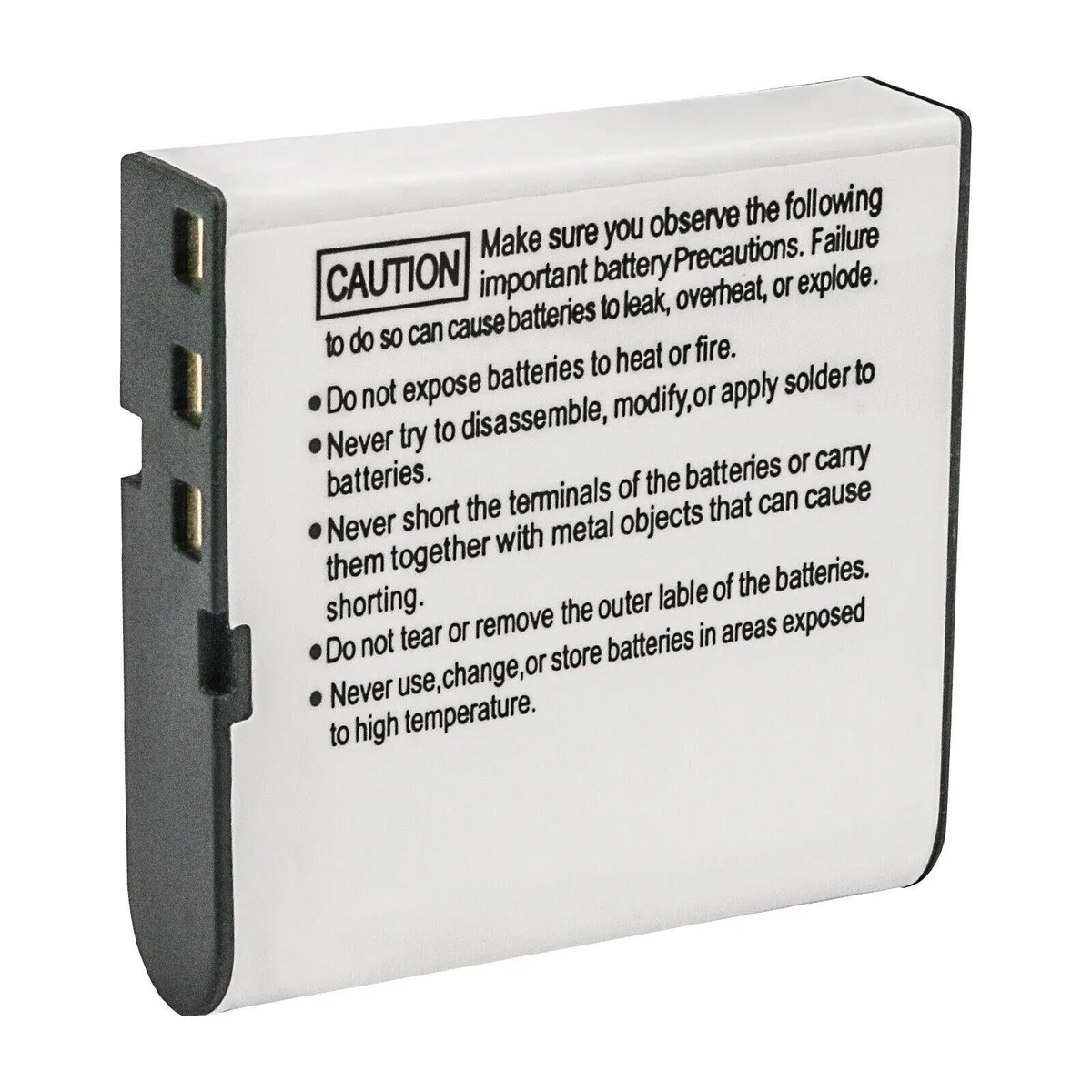

The Kastar LB-060 kit supplies a 1700 mAh lithium-ion cell rated at 3.7 V and 6.29 Wh alongside an LTD2 dual-slot charger. It replaces original packs for numerous Pamiel HD-series camcorders including the HD-53B, HD-55B, HD-58B, HD-63B, HD-66B, HD-68B, HD-69B, HD-316B and HD-350B models as well as the P-F01, HDV-568, HDV-578 and HDV-D503FS units.

Interchangeable plates and USB power

The charger accepts swappable plates so the same dock can service different battery types, and its LCD panel shows charge status and capacity for each bay. Input is provided through both Micro-USB and USB-C ports at 5 V with a 15 W maximum, while output delivers 4.2 V at 800 mA per slot whether one or two cells are fitted. A Micro-USB cable is included for immediate use.

Charging speed and platform limits

Each bay is capped at 800 mA, so a depleted 1700 mAh cell requires roughly two hours to reach full charge regardless of whether the source can supply higher current. The fixed 5 V input means the unit cannot take advantage of faster USB Power Delivery profiles, and the single included battery leaves the second bay empty unless an additional LB-060 or compatible cell is purchased separately.

Highlights

  • 1700 mAh Li-Ion cell powers compatible Pamiel camcorders
  • LCD dual charger shows real-time status and capacity
  • Micro-USB and Type-C inputs give flexible power sources
  • Charges two batteries simultaneously at 800 mA each
  • Compact 5×3×2 in kit includes charger, battery and cable

Specifications

BrandKastar
ModelLB-060
Part NumberCH-LTD2-1B-LB060-T
TypeBattery & Charger
Pack1 Charger + 1 Battery
ChemicalLi-Ion
Capacity6.29 Wh
Dimensions5*3*2 Inch
FeaturesLCD USB Dual charger, can charge 2 batteries at the same time

Other versions of this model

5 more in the same range

Same family, different memory, cooler or clock — compare before you commit.

Questions about this item

What USB standard does the LTD2 charger use for its Micro-USB and Type-C inputs?

The charger accepts 5 V 2–3 A 15 W through either Micro-USB or Type-C, so any USB-A or USB-C source that can deliver up to 15 W will run it at full speed.

What are the charger’s physical dimensions and what clearance does it need?

The unit measures 5 x 3 x 2 inches, so allow at least that footprint plus room for cables and two batteries seated side by side.

How do you start a charge cycle and what common step is missed?

Connect power, insert one or two LB-060 batteries, then press the mode button to select 800 mA single or dual output; forgetting to press the button leaves the charger idle.
