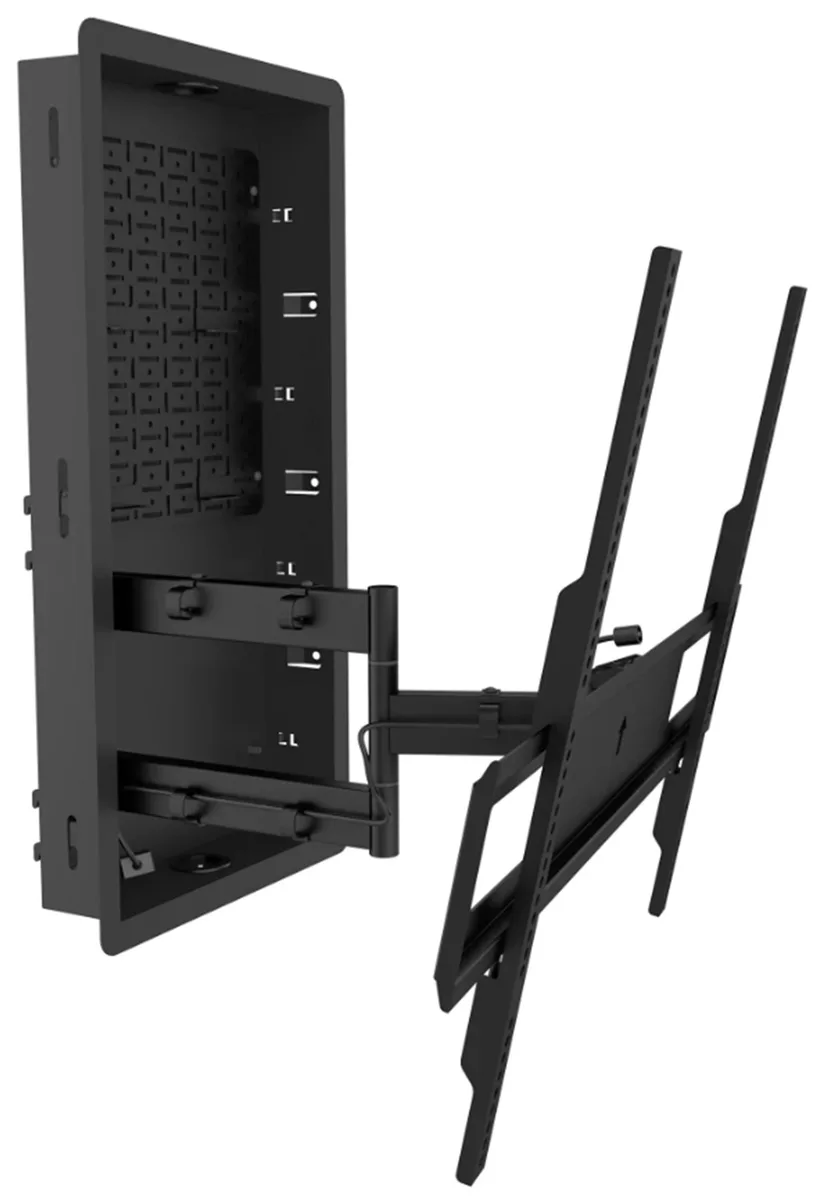

Black rectangular in-wall recessed TV mount with articulated arm extended

Kanto

Kanto R600 In-Wall Recessed Full Motion TV Mount 65-90

SKU CH-9NB5-6XWDK MPN R600

An in-wall recessed full-motion TV mount for 65-90 inch screens up to 135 lbs, extending 18.7 inches with 90-degree swivel and tilt from +10 to -2 degrees

  • TypeIn-Wall Mount
  • Cabinet ColorBlack
  • FeaturesFits Most TVs 65-90", Supports TVs Up to 135lbs, Accommodate

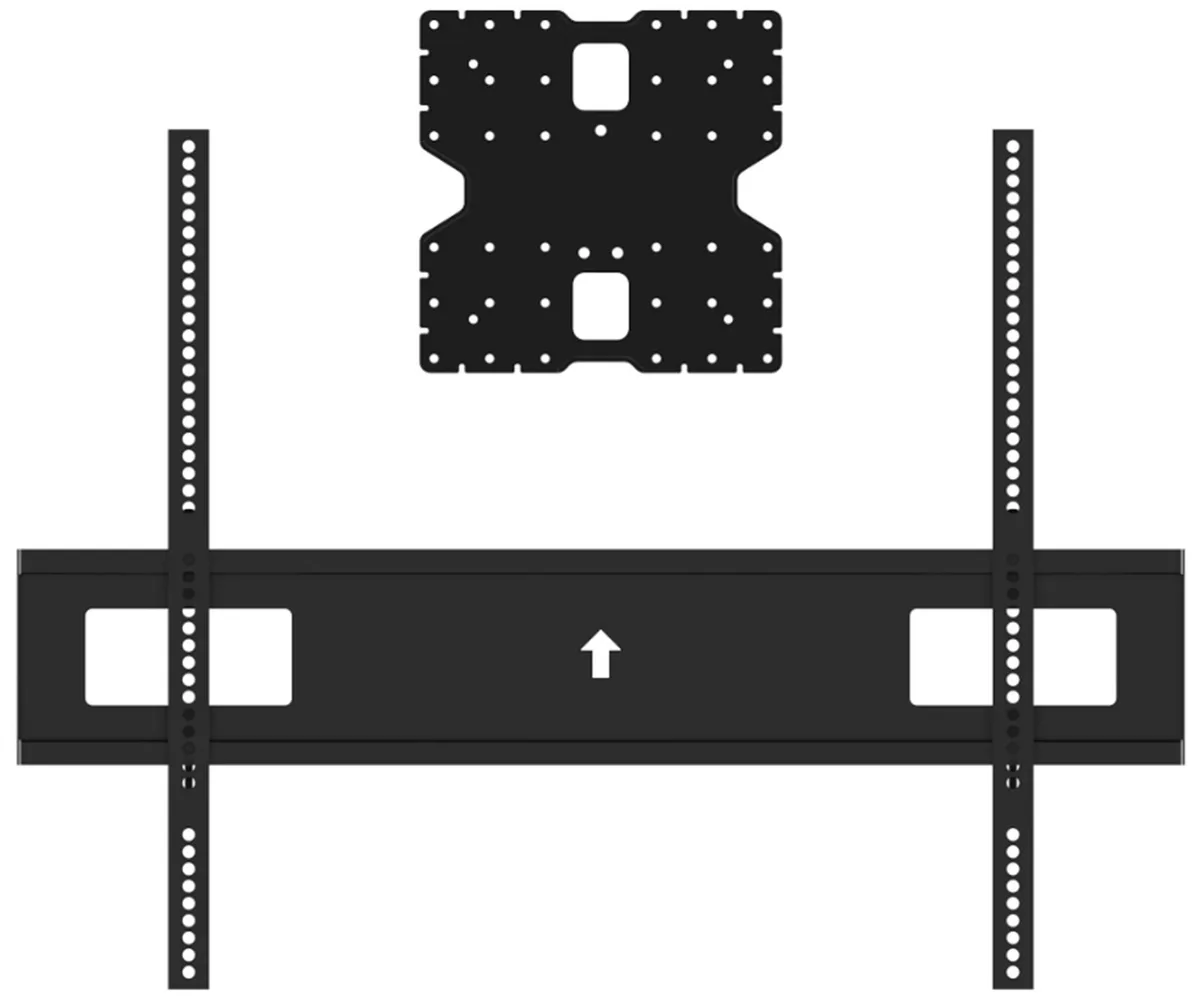

  • Zero-gap fit for TVs up to 300x300 VESA

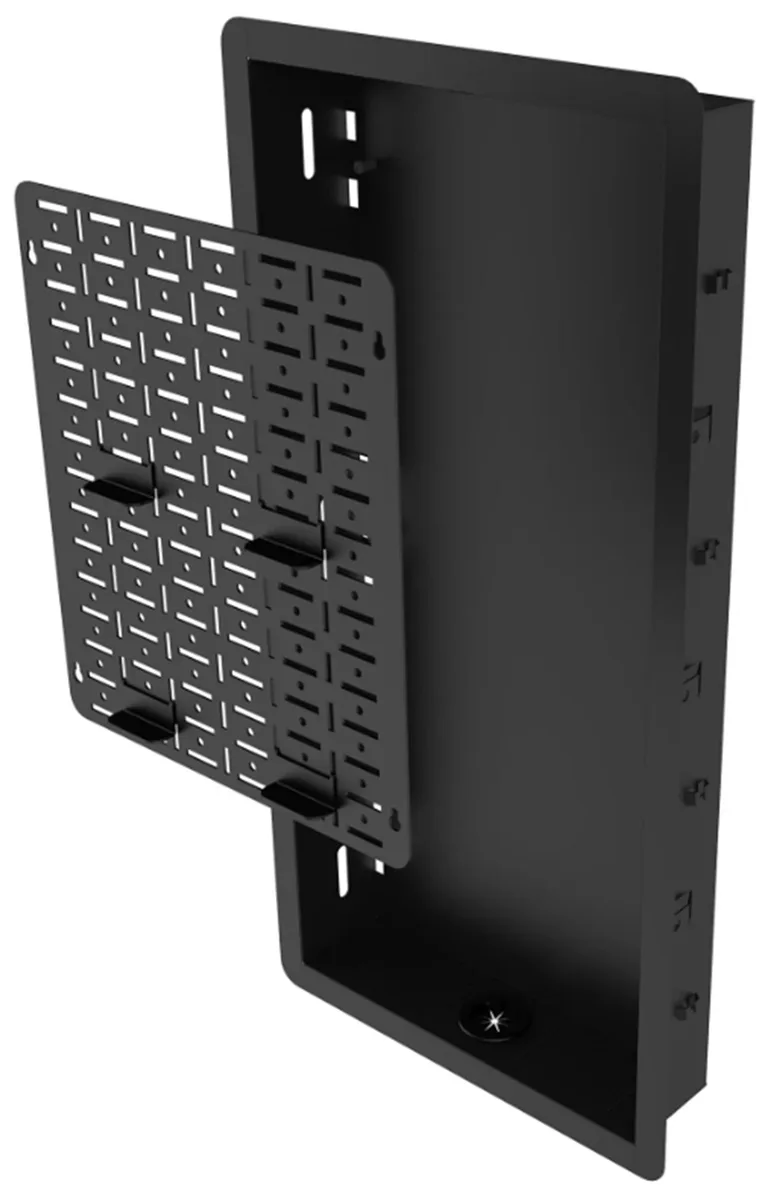

  • Recessed box stores streaming devices inside the wall
  • Foldable template lets contractors run cable and drywall first
  • Metal knock-outs allow in-box power outlets for a clean look
  • Extends 18.7" with 90° swivel and +10/-2° tilt

True Zero-Gap In-Wall Mount

The Kanto R600 is a recessed full-motion TV mount designed for screens from 65 to 90 inches and weighing up to 135 pounds. It supports VESA patterns from 100x100 up to 800x600 and extends 18.7 inches from the wall for wide viewing angles.

Best for New-Build Installations

This unit suits installers running cables and hanging drywall before the mount is unpacked, thanks to its foldable in-wall template and metal knock-outs for power outlets. It does not suit renters or retrofit projects where opening the wall cavity is impractical.

Contractor-Friendly Rough-In

The collapsible template lets crews mark stud locations and route wiring while the mount stays protected in its box, then the finished mount slides in later. Misaligned stud spacing or skipping the template step are the most common reasons the box sits crooked.

Highlights

  • Zero-gap fit for TVs up to 300x300 VESA
  • Recessed box stores streaming devices inside the wall
  • Foldable template lets contractors run cable and drywall first
  • Metal knock-outs allow in-box power outlets for a clean look
  • Extends 18.7" with 90° swivel and +10/-2° tilt

Specifications

BrandKanto
ModelR600
TypeIn-Wall Mount
Cabinet ColorBlack
FeaturesFits Most TVs 65-90", Supports TVs Up to 135lbs, Accommodates TV VESA 100x100 to 800x600, Accessible Tilt Mechanism +10 to -2 Degrees, 90 Degree Swivel in Either Direction, Extends 18.7" from Wall, Adjustable Horizontal Leveling, In-Wall Box Designed for Installation Between 16" Stud Spacing, Integrated Cable Management, Solid Steel Construction, Durable Powder Coated Finish, Manual and All Hardware Included
Shipping weight22.00 kg
Package size935 × 526 × 145 mm

Questions about this item

What VESA pattern must my TV have to sit completely flush against the wall?

A TV with a VESA pattern of 300x300 mm or smaller will sit perfectly flush with zero gap using the standard mounting interface.

Will the articulating arm still extend and swivel if I use the larger 800x600 VESA interface?

Yes, the mount provides full motion articulation including 18.7" extension and 90-degree swivel in either direction even when the larger interface adds a 1.1" profile.

How can I verify the tilt mechanism is functioning correctly after installation?

Adjust the accessible tilt mechanism through its +10 to -2 degree range; the TV should move smoothly and hold each angle securely without drifting.
