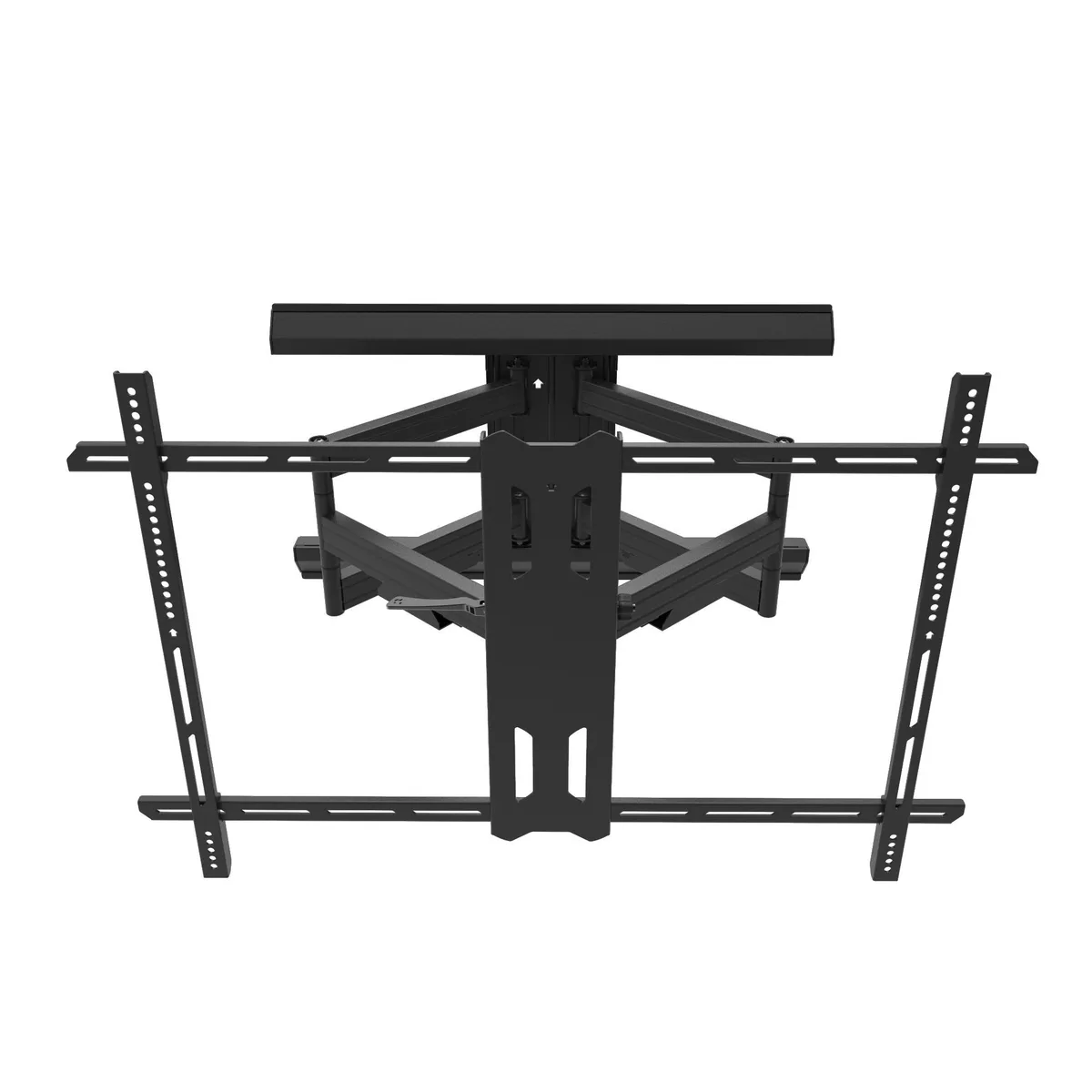

Black steel full-motion TV wall mount with dual-stud plate, articulated arm extended, lag-bolt covers visible

Kanto

Kanto PMX800 Full Motion Dual Stud Mount 55-120" 200 lb

SKU CH-P5Y8-KS5ND MPN PMX800

Full-motion wall mount for 55 to 120 inch displays up to 200 lb with 90 degree swivel, 12 degree tilt, 31.3 inch extension and 22 inch horizontal offset

  • TypeWall Mount
  • Cabinet ColorBlack
  • FeaturesFits most flat panel TVs from 55” to 120”, Supports TVs up t
  • Holds TVs from 55 to 120 inches up to 200 lb
  • Extends 31.3 inches from the wall and retracts to 2.6 inches
  • 90 degrees of swivel each way with tilt from +12 to -3 degrees
  • Mounts on dual studs up to 24 inches apart with 11 inches of horizontal offset

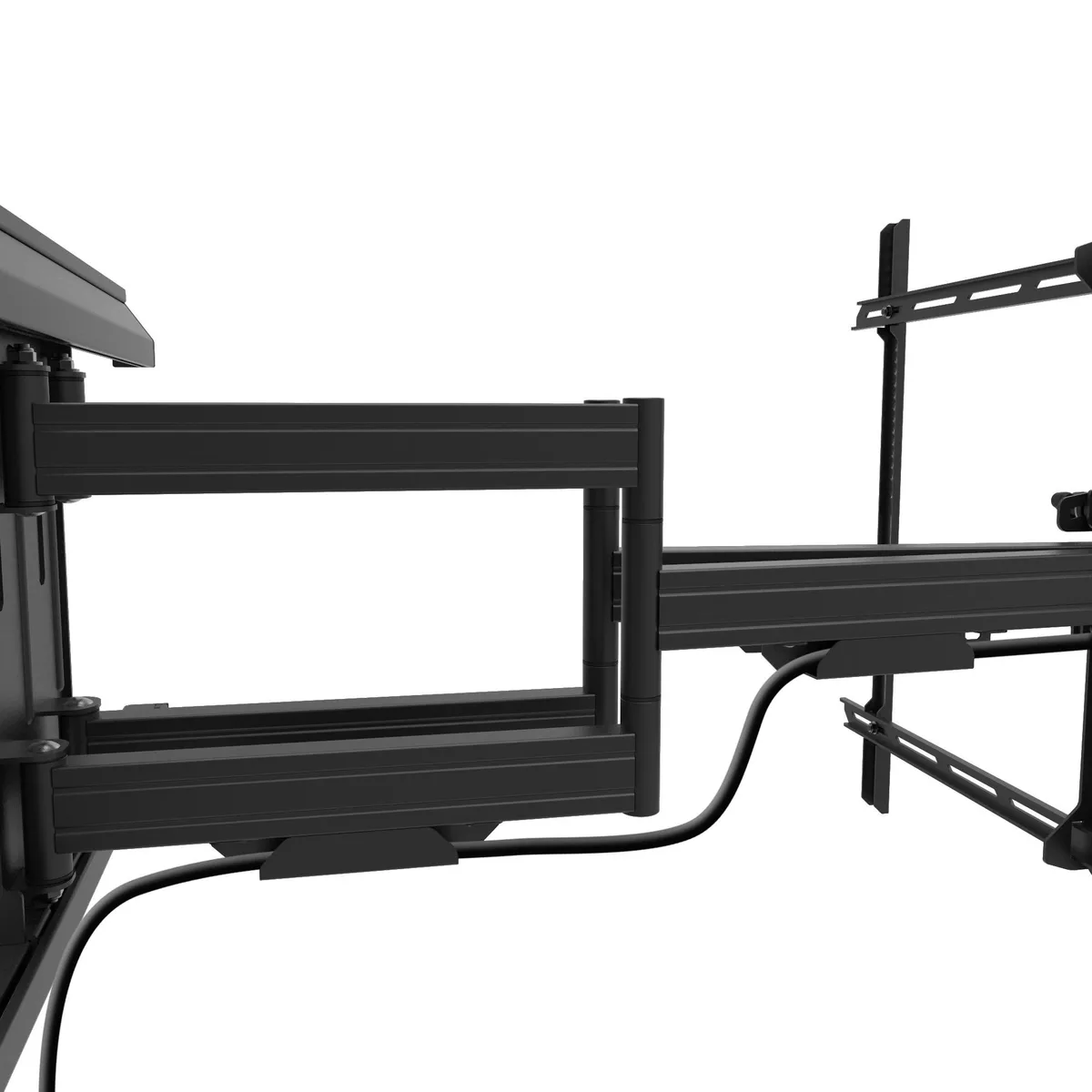

  • Integrated metal cable management and aluminum lag bolt covers for durability

Extra-large TV support

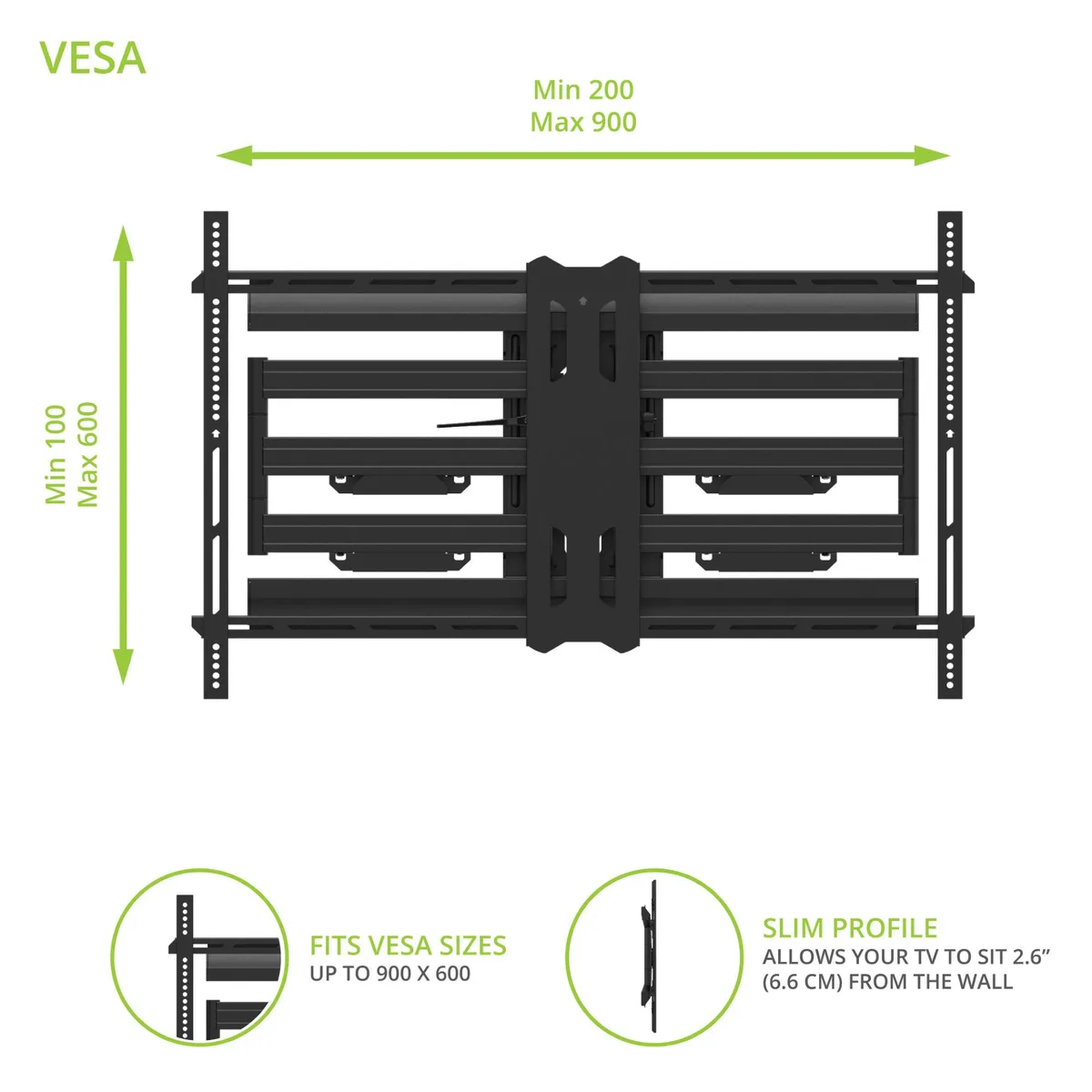

The Kanto PMX800 is a full-motion wall mount built for flat-panel TVs from 55 to 120 inches. A 200 lb weight capacity and VESA compatibility from 200x100 to 900x600 cover most commercial and residential displays. Black powder-coated steel construction and metal cable-management components are designed for long-term service.

Horizontal offset for stud alignment

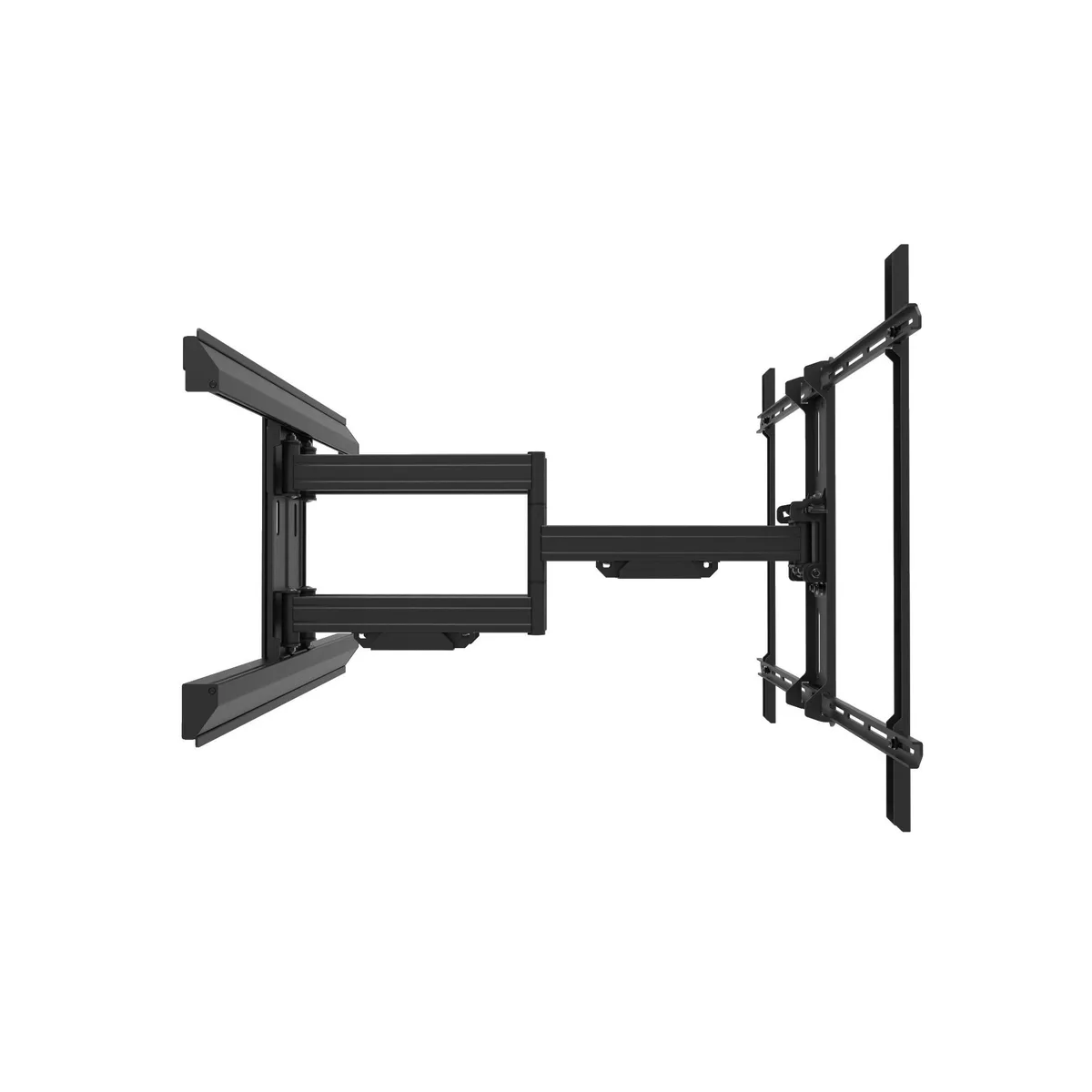

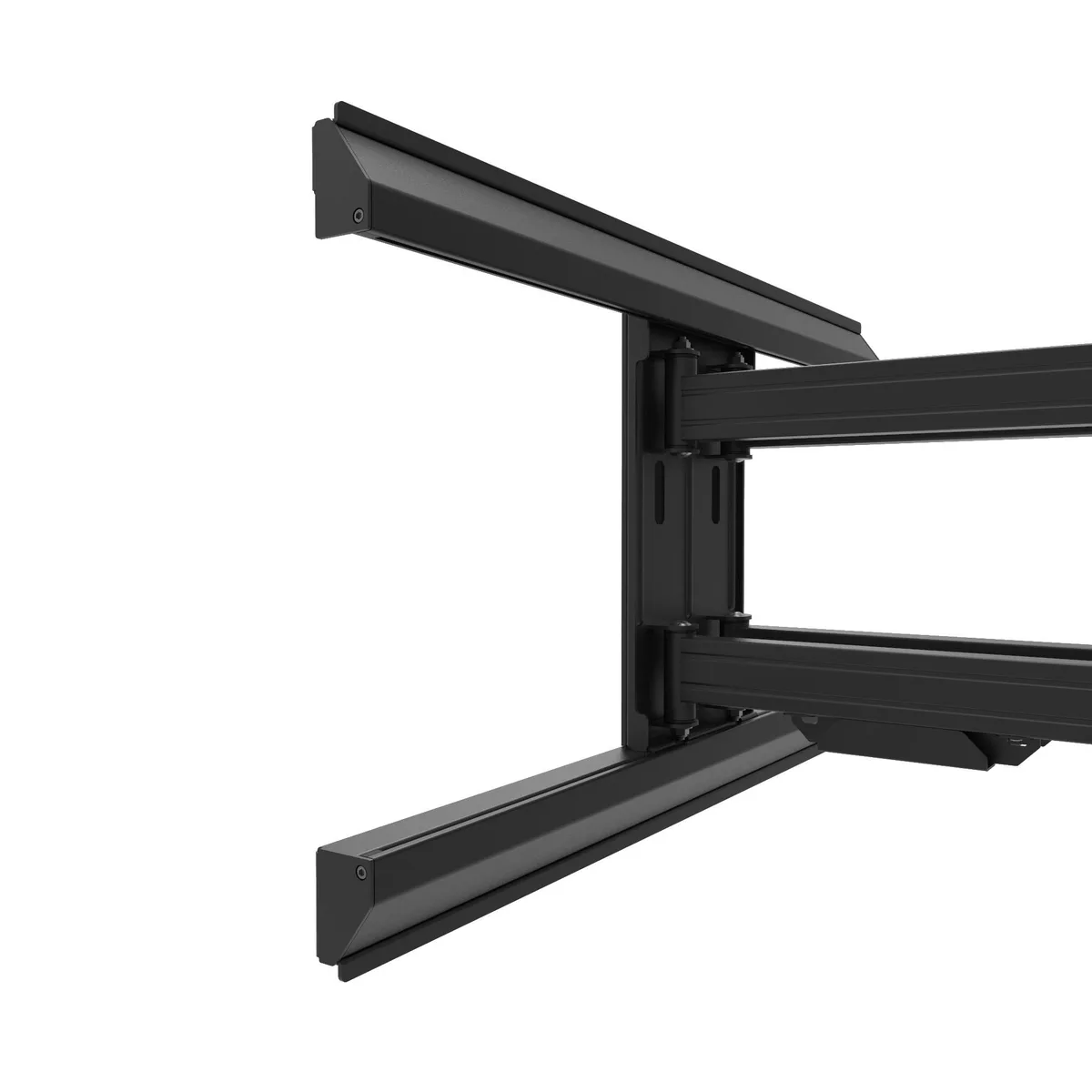

The 32-inch dual-stud wall plate accepts stud spacing up to 24 inches and provides up to 11 inches of horizontal offset per side, giving 22 total inches of lateral adjustment. This lets installers centre the TV even when studs are poorly positioned. The mount retracts to 2.6 inches and extends to 31.3 inches for deep swivel on very large screens.

Tool-free tilt and solid hardware

A toolless cam lever enables tilt from +12° to -3° for on-the-fly viewing-angle changes. Lag bolts and aluminium covers are included, but installers must verify that the wall structure can carry the combined load. Buyers who need a fixed low-profile mount or single-stud installation should consider a different model.

Highlights

  • Holds TVs from 55 to 120 inches up to 200 lb
  • Extends 31.3 inches from the wall and retracts to 2.6 inches
  • 90 degrees of swivel each way with tilt from +12 to -3 degrees
  • Mounts on dual studs up to 24 inches apart with 11 inches of horizontal offset
  • Integrated metal cable management and aluminum lag bolt covers for durability

Specifications

BrandKanto
ModelPMX800
TypeWall Mount
Cabinet ColorBlack
FeaturesFits most flat panel TVs from 55” to 120”, Supports TVs up to 200 lb, Accommodates VESA sizes from 200x100 to 900x600, Accessible tilt mechanism provides +12° to -3° of tilt, 90° of swivel in either direction, depending on screen size, Sits 2.6” when fully retracted, Extends up to 31.3” (79.5 cm) from the wall, Up to ±11” (28 cm) of horizontal offset, Adjustable horizontal leveling, 32" dual stud wall plate accommodates up to 24” stud spacing, Integrated cable management, Aluminum covers conceal lag bolts after installation, Solid steel construction with durable powder coated finish,
Shipping weight26.49 kg
Package size1057 × 541 × 124 mm

Questions about this item

What VESA patterns and stud spacing does the PMX800 support?

The mount fits VESA patterns from 200x100 mm up to 900x600 mm. The dual-stud wall plate is 32 inches wide and accepts stud centres up to 24 inches apart.

How is the PMX800 mounted to the wall, and which step is most often missed?

Secure the 32-inch wall plate to two studs using the supplied lag bolts, then slide the TV brackets onto the rails. The step people forget is tightening the set screws that lock the brackets in their chosen horizontal position.

What maintenance will the PMX800 need over time?

Periodically check that the lag bolts and bracket set screws remain snug, and verify the tilt cam lever still locks firmly. The metal cable-management clips and lag-bolt covers are built to last and do not require replacement.
