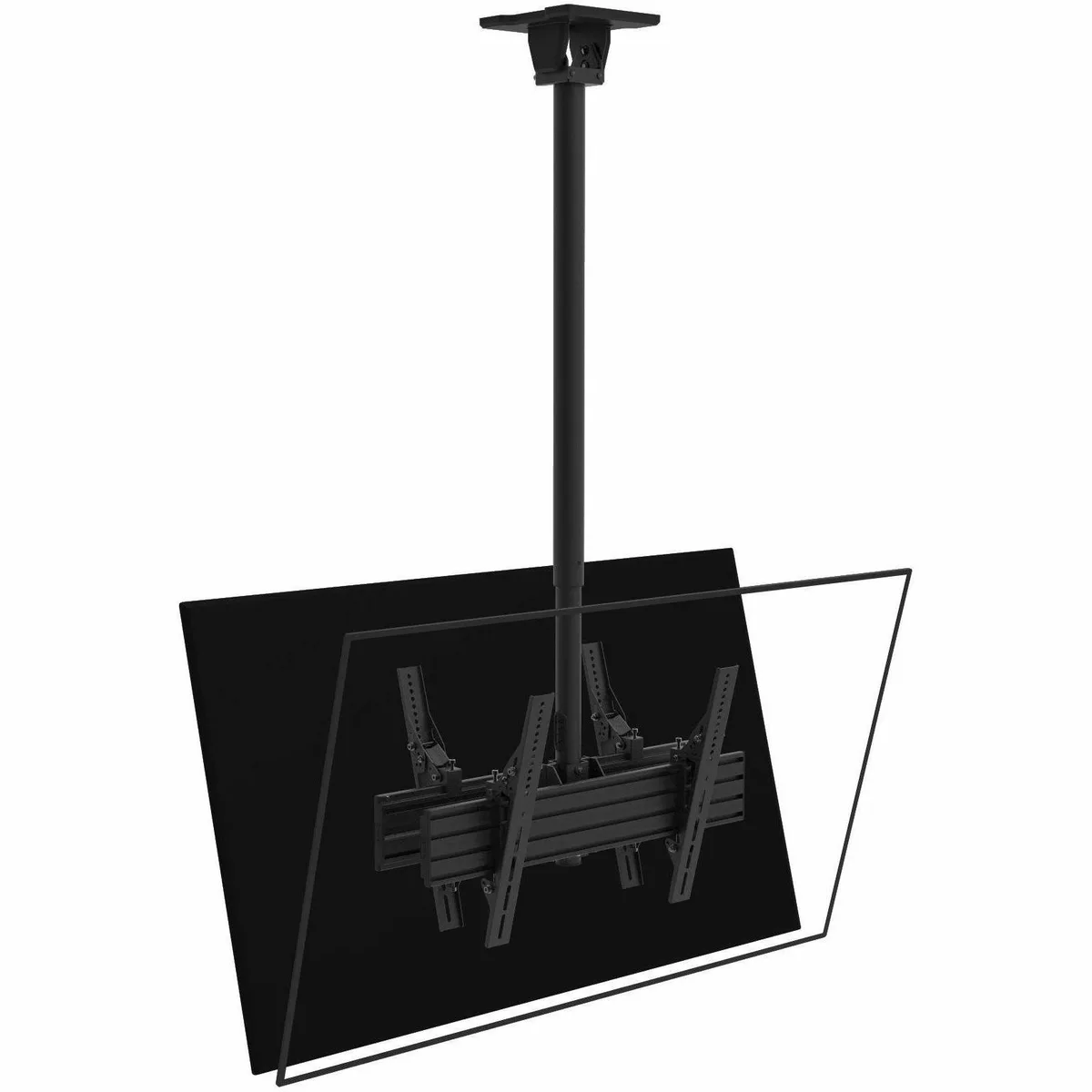

Black metal dual TV ceiling mount with two back-to-back arms and telescoping pole

Kanto

Kanto CM600BTB Back-to-Back Dual-Screen TV Mount 40-80" 100 lb

SKU CH-MSS2-BXJ0X MPN CM600BTB

Ceiling mount holds two 40-80 inch screens back-to-back, each up to 100 lb, with 90° swivel, 15° tilt, and internal cable routing

  • MaterialSolid aluminum and steel construction
  • TV Size Capacity40” to 80”
  • TV Weight Capacity100 lb (45 kg) per screen
  • VESA Compatible75×75 to 600×400
  • Distance from Wall39.1” to 62.6”
  • Swivel Range90°
  • Holds two screens back-to-back for wider visibility
  • Supports 40" to 80" displays up to 100 lb each
  • Adjusts 39.1" to 62.6" from ceiling in 2" increments
  • Swivels 90° and tilts +15° to -6° for precise alignment
  • Hollow pole with internal cable management keeps installation clean

Dual-Screen Ceiling Mount for 40 to 80 Inch Displays

The Kanto CM600BTB mounts two flat-panel TVs back-to-back on a single ceiling pole. Each screen can measure 40 to 80 inches and weigh up to 100 lb. Solid aluminum and steel construction supports commercial or retail installations where dual visibility is required.

VESA 75×75 to 600×400 with 23 Inch Height Travel

The mount accepts VESA patterns from 75×75 mm up to 600×400 mm. A telescoping pole adjusts the centre-to-centre distance from 39.1 to 62.6 inches in two-inch increments. The pivoting ceiling plate accommodates flat, sloped or vertical surfaces up to 90 degrees of swivel.

100 lb Per Screen Weight Rating Determines Fit

Each TV plate carries a maximum load of 100 lb (45 kg). Displays heavier than this limit cannot be mounted safely. The four discrete tilt positions from +15° to -6° and integrated cable channel complete the specification set.

Highlights

  • Holds two screens back-to-back for wider visibility
  • Supports 40" to 80" displays up to 100 lb each
  • Adjusts 39.1" to 62.6" from ceiling in 2" increments
  • Swivels 90° and tilts +15° to -6° for precise alignment
  • Hollow pole with internal cable management keeps installation clean

Specifications

BrandKanto
MaterialSolid aluminum and steel construction
TV Size Capacity40” to 80”
TV Weight Capacity100 lb (45 kg) per screen
VESA Compatible75×75 to 600×400
Distance from Wall39.1” to 62.6”
Swivel Range90°
Tilt Range+15° to -6°
FeatureAdjustable horizontal leveling
Internal cable management
Height43.3?
Width9.7?
Depth6.5?
WeightProduct weight: 28.7 lb (13 kg)
Shipping box weight: 32.4 lb (14.7 kg)
Package ContentCM600BTB Back-to-back hanging TV ceiling mount
Installation manual
All mounting hardware for wood stud installation
Shipping weight14.70 kg
Package size1100 × 254 × 178 mm

Questions about this item

How do I decide between the 40" and 80" size ratings for my two screens?

The CM600BTB fits any VESA pattern from 75×75 mm up to 600×400 mm and holds each TV up to 100 lb; match the VESA holes and weight of your actual panels rather than the diagonal size.

What does the 39.1" to 62.6" distance from the wall mean once the mount is installed?

That range is the adjustable drop from the ceiling to the centre of each screen; the telescoping pole moves in 2" increments over 23" of travel so you can set the exact viewing height.

What ceiling types does the pivoting mounting plate support and what angle does it allow?

The plate mounts to flat, sloped or vertical surfaces and swivels up to 90° to keep the screens level regardless of ceiling angle.
