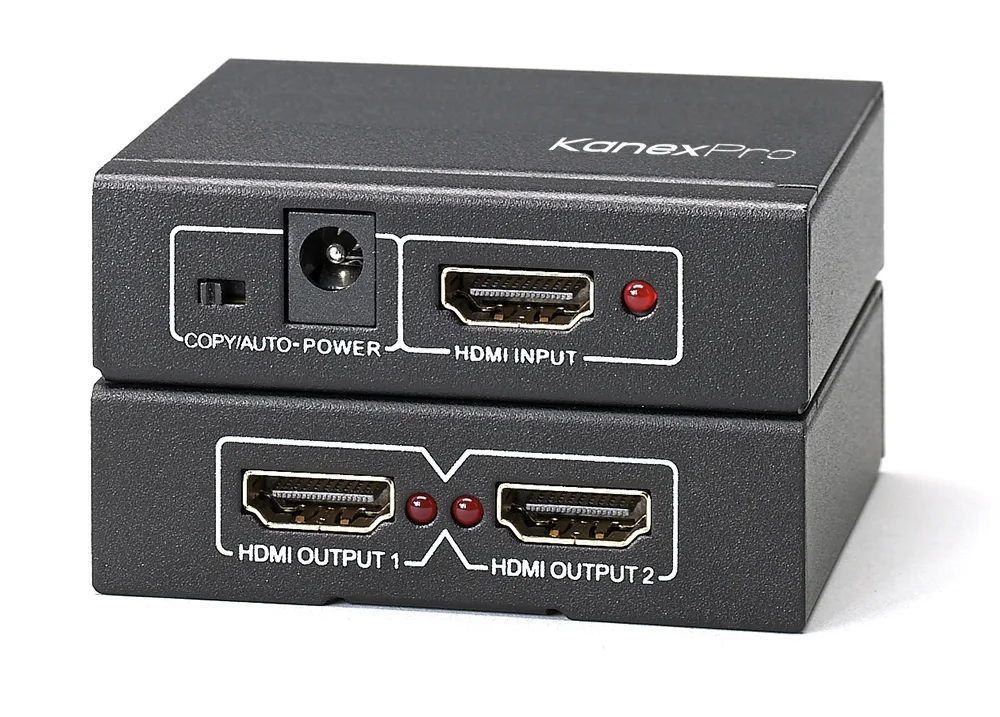

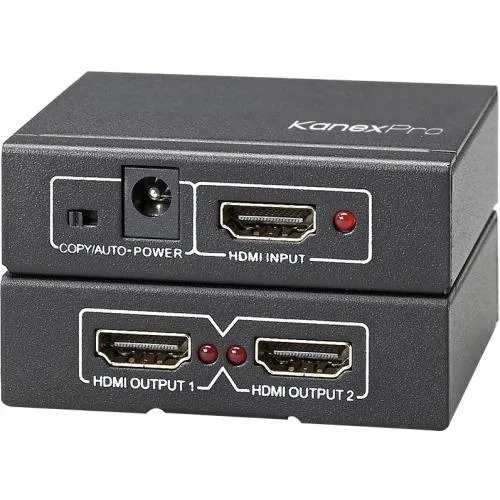

Small black rectangular box with one HDMI input and two outputs, matte finish, compact size

KanexPro

KanexPro SPHD1X24K 4K HDMI 2-Port Splitter

SKU CH-XQ4F-ZE9RE

A 4K@30Hz HDMI splitter duplicates one source to two displays with HDCP compliance and backward compatibility

  • Splitter TypeHDMI
  • SpecificationSignal Inputs/Output Input DDC Signal: 5 volts p-p (TTL) Max
  • Resolution SupportInterlaced (50&60Hz): 480i, 576i, and 1080i Progressive (50&
  • Video Bit Rate/BandwidthVideo Amplifier Bandwidth: 2.97 Gbps
  • HDMIInput: HDMI x 1 Ouput: HDMI x 2
  • Power ConsumptionExternal Power Supply: 5V DC@ 1A Power consumption (Max): 5W
  • Duplicate one source to two displays without signal loss
  • 4K x 2K resolution at 30 Hz for sharp Ultra HD picture
  • HDMI 1.4 with full 3D and HDCP pass-through support
  • Compact 2.51" x 2.36" x .78" design fits tight spaces
  • Powered by 5 V DC 1 A supply consuming only 5 W

4K HDMI 1x2 Splitter

The KanexPro SPHD1X24K duplicates a single HDMI source to two displays while preserving signal integrity. It supports Ultra HD 4K resolution at 30 Hz and is fully HDCP compliant. Backward compatibility covers earlier HDMI revisions down to 480i. The unit draws power from an included 5 V DC adapter.

Build integration and cabling

One HDMI input accepts the source device and two HDMI outputs feed separate screens. The splitter requires the external 5 V power supply to operate. CEC signals pass through so connected displays can retain basic control functions. Its compact 2.51 by 2.36 by 0.78 inch form factor fits easily behind equipment racks or displays.

Upgrade path and fit

This splitter replaces basic passive adapters that cannot maintain 4K at 30 Hz or HDCP handshakes across two outputs. It is the right step up when a single source must drive dual 4K displays without signal degradation. Buyers who need more than two outputs or 4K at 60 Hz will need a different distribution solution.

Highlights

  • Duplicate one source to two displays without signal loss
  • 4K x 2K resolution at 30 Hz for sharp Ultra HD picture
  • HDMI 1.4 with full 3D and HDCP pass-through support
  • Compact 2.51" x 2.36" x .78" design fits tight spaces
  • Powered by 5 V DC 1 A supply consuming only 5 W

Specifications

BrandKanexPro
ModelSPHD1X24K
Splitter TypeHDMI
SpecificationSignal Inputs/Output
Input DDC Signal: 5 volts p-p (TTL)
Maximum Single Link Range: 4K x 2K
Output Video: HDMI 1.4 with full 3D and 4Kx2K@30Hz + HDCP
CEC - Pass through enabled
Operating Frequency
Vertical Frequency Range: 50/60Hz
Environment
Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
Resolution SupportInterlaced (50&60Hz): 480i, 576i, and 1080i
Progressive (50&60Hz): 480p, 576p, 720p, 1080p, and 4Kx2K
Video Bit Rate/BandwidthVideo Amplifier Bandwidth: 2.97 Gbps
HDMIInput: HDMI x 1
Ouput: HDMI x 2
Power ConsumptionExternal Power Supply: 5V DC@ 1A
Power consumption (Max): 5W
FeatureThe KanexPro 1x2 HDMI Splitter is a 4K@30Hz compliant distribution amplifier which lets you duplicate one HDMI source to 2 displays without losing signal integrity and resolution.
The Ultra HD 4K format on the HDMI splitter ensures astounding picture quality, four times the resolution of high-definition 1080p at 30 Hz. This HDCP compliant splitter is also backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices. Even if you don't require 4K video today, it ensures you'll be ready to take advantage of tomorrow's display technology.
Distri
Dimensions2.51" x 2.36" x 0.78"
Weight0.27 lb.

Questions about this item

What is the maximum single-link range this splitter can handle?

The splitter supports a maximum single-link range of 4K x 2K resolution.

How much power does the unit draw at most?

Maximum power consumption is 5W, supplied by the included 5V DC 1A external adapter.

What cables are required to connect a source and two displays?

You need three HDMI cables: one from the source to the input and one from each output to a display.
