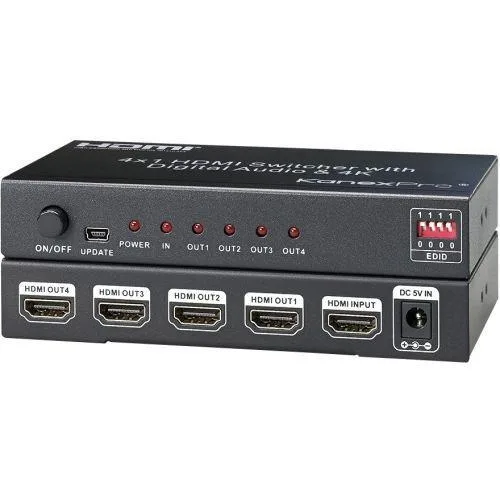

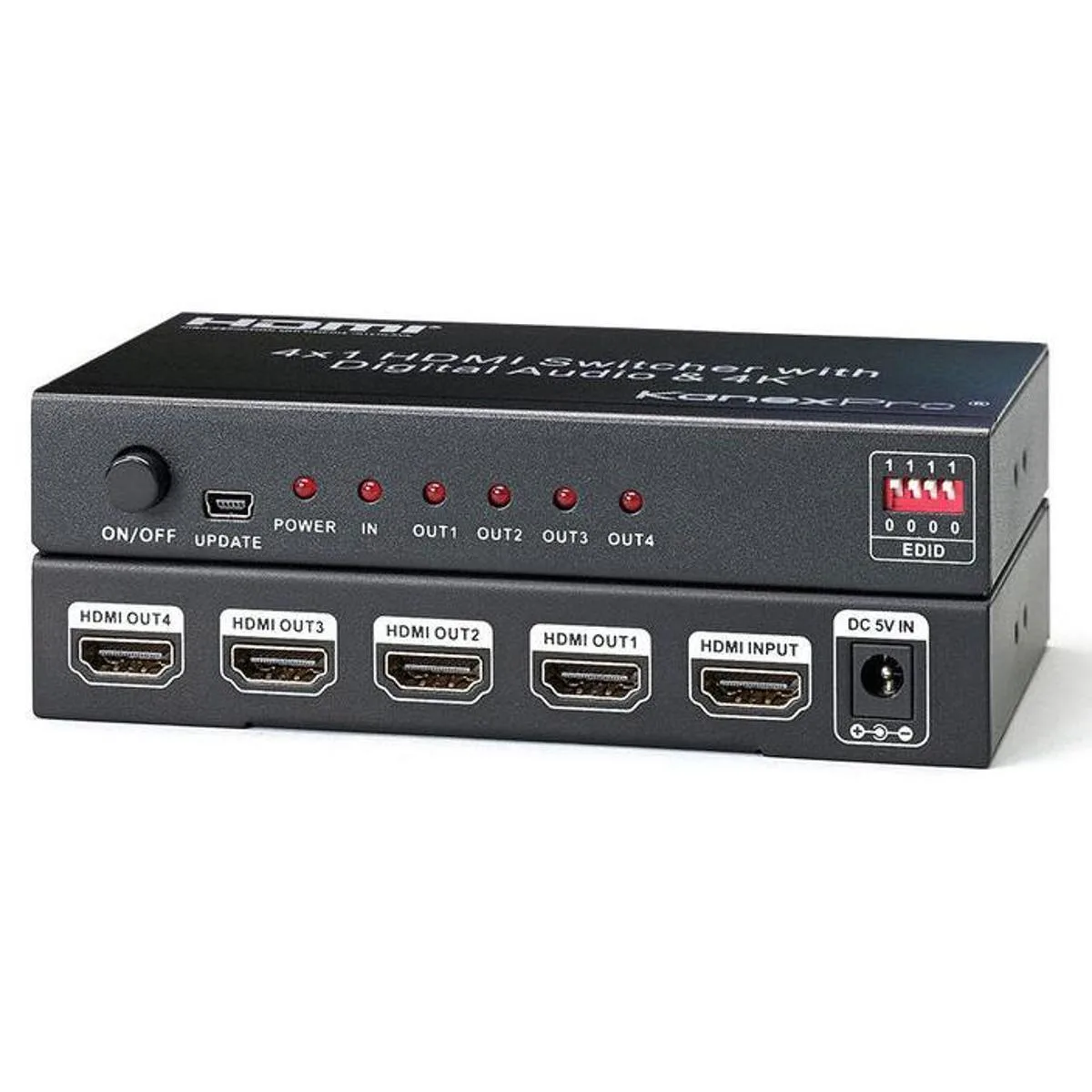

Compact metal box with one HDMI input and four HDMI outputs

KanexPro

KanexPro SP-HD1X44K 1x4 HDMI splitter 4K@30Hz

SKU CH-H411-DKCQ2 MPN SP-HD1X44K

Distributes one HDMI source to four displays at up to 4K resolution and 30 Hz

  • Splitter TypeHDMI
  • SpecificationSignal Inputs/Output Input DDC Signal: 5 volts p-p (TTL) Max
  • Resolution SupportInterlaced (50&60Hz): 480i, 576i, and 1080i Progressive (50&
  • Video Bit Rate/BandwidthVideo Amplifier Bandwidth: 2.97 Gbps
  • HDMIInput: HDMI x 1 Ouput: HDMI x 4
  • Power ConsumptionExternal Power Supply: 5V DC@ 1A Power consumption (Max): 5W
  • One source feeds four displays at 4K 30Hz
  • Signal amplifier keeps 2.97 Gbps bandwidth intact
  • HDCP compliant for protected content playback
  • Supports 1080p 120Hz and 720p legacy screens
  • Metal chassis weighs 0.66 lb for rack use

One input to four outputs

This HDMI splitter takes a single source and duplicates it across four displays while preserving signal integrity and resolution. It handles 4K at 30 Hz and remains backward compatible with 1080p and 720p devices. The unit is HDCP compliant and passes CEC signals through to connected screens.

Installations needing identical images on multiple

Suitable for digital signage, conference rooms or classrooms where the same content must appear on several displays simultaneously. Not suited for setups that require independent images on each output or for sources that demand 4K at 60 Hz.

HDMI 1.4 bandwidth of 2.97 Gbps

This bandwidth ceiling limits the maximum resolution to 4K at 30 Hz and prevents higher refresh rates at that resolution. If the source or displays need 4K at 50 Hz or 60 Hz, a splitter with greater bandwidth is required.

Highlights

  • One source feeds four displays at 4K 30Hz
  • Signal amplifier keeps 2.97 Gbps bandwidth intact
  • HDCP compliant for protected content playback
  • Supports 1080p 120Hz and 720p legacy screens
  • Metal chassis weighs 0.66 lb for rack use

Specifications

BrandKanexPro
ModelSPHD1X44K
Splitter TypeHDMI
SpecificationSignal Inputs/Output
Input DDC Signal: 5 volts p-p (TTL)
Maximum Single Link Range: 4K x 2K@30Hz
Output Video: HDMI 1.4 with full HD 1080p, 1920x1200, 720p, 3D and 4Kx2K + HDCP
CEC - Pass through enabled
Operating Frequency
Vertical Frequency Range: 50/60Hz
Environment
Operating Temperature: 0°C ~ 40°C / 32°F ~ 104°F
Storage Temperature: -20°C ~ 60°C / -4°F ~ 140°F
Resolution SupportInterlaced (50&60Hz): 480i, 576i, and 1080i
Progressive (50&60Hz): 480p, 576p, 720p, 1080p, and 4Kx2K@30Hz
Video Bit Rate/BandwidthVideo Amplifier Bandwidth: 2.97 Gbps
HDMIInput: HDMI x 1
Ouput: HDMI x 4
Power ConsumptionExternal Power Supply: 5V DC@ 1A
Power consumption (Max): 5W
FeatureThe KanexPro 1x4 HDMI Splitter is a 4K@30Hz compliant distribution amplifier which lets you duplicate one HDMI source to four displays without losing signal integrity and resolution.
The Ultra HD 4K format on the HDMI splitter ensures astounding picture quality, four times the resolution of high-definition 1080p. This HDCP compliant splitter is also backward compatible with previous HDMI revisions, supporting 1080p / 720p HDMI video resolution devices. Even if you don't require 4K video today, it ensures you'll be ready to take advantage of tomorrow's display technology.
Dimensions5.7" x 2.7" x 0.98"
Weight0.66 lb.

Questions about this item

Does the splitter come with the power supply or do I need to buy a 5V 1A adapter separately?

The package includes the 1x4 HDMI splitter and a 5V DC 1A power supply, so no separate adapter is required.

Should I choose this 4K@30Hz model or look for a 60Hz version for my 4K display?

This unit supports 4K x 2K at 30 Hz; if your display needs 4K at 50 or 60 Hz you will need a splitter rated for HDMI 2.0 bandwidth.

What does the 2.97 Gbps bandwidth mean for the picture I actually see on four screens?

The 2.97 Gbps limit carries 4K@30Hz, 1080p at 60 Hz, 720p, 480p, 576p and interlaced formats to all four outputs simultaneously.
