Handheld digital clamp meter, dark grey body with red accents, hinged jaw at top, LCD screen and rotary dial below

KAIWEETS HT206D Digital Clamp Meter 6000 Counts

SKU CH-QXJD-RGRYB

A True-RMS clamp meter measuring AC/DC current to 600 A, voltage to 600 V, resistance, capacitance, frequency, duty cycle.

  • FeaturesIec 61010-1:2000-1, Cat III 600v, Battery Powered, false
  • Height7.5 L x 2.8 W x 1.3 H inches
  • Width7.5 L x 2.8 W x 1.3 H inches
  • Length7.5 L x 2.8 W x 1.3 H inches
  • Weight0.48 pounds
  • Sports Team1 Piece
  • True-RMS accuracy on non-linear loads
  • LowZ and LPF prevent ghost-voltage errors
  • NCV detects live wires without contact
  • Red backlight warns above 80 V or 3 A
  • IEC 61010-1 CAT III 600 V safety rating

Purpose-built measurement tool

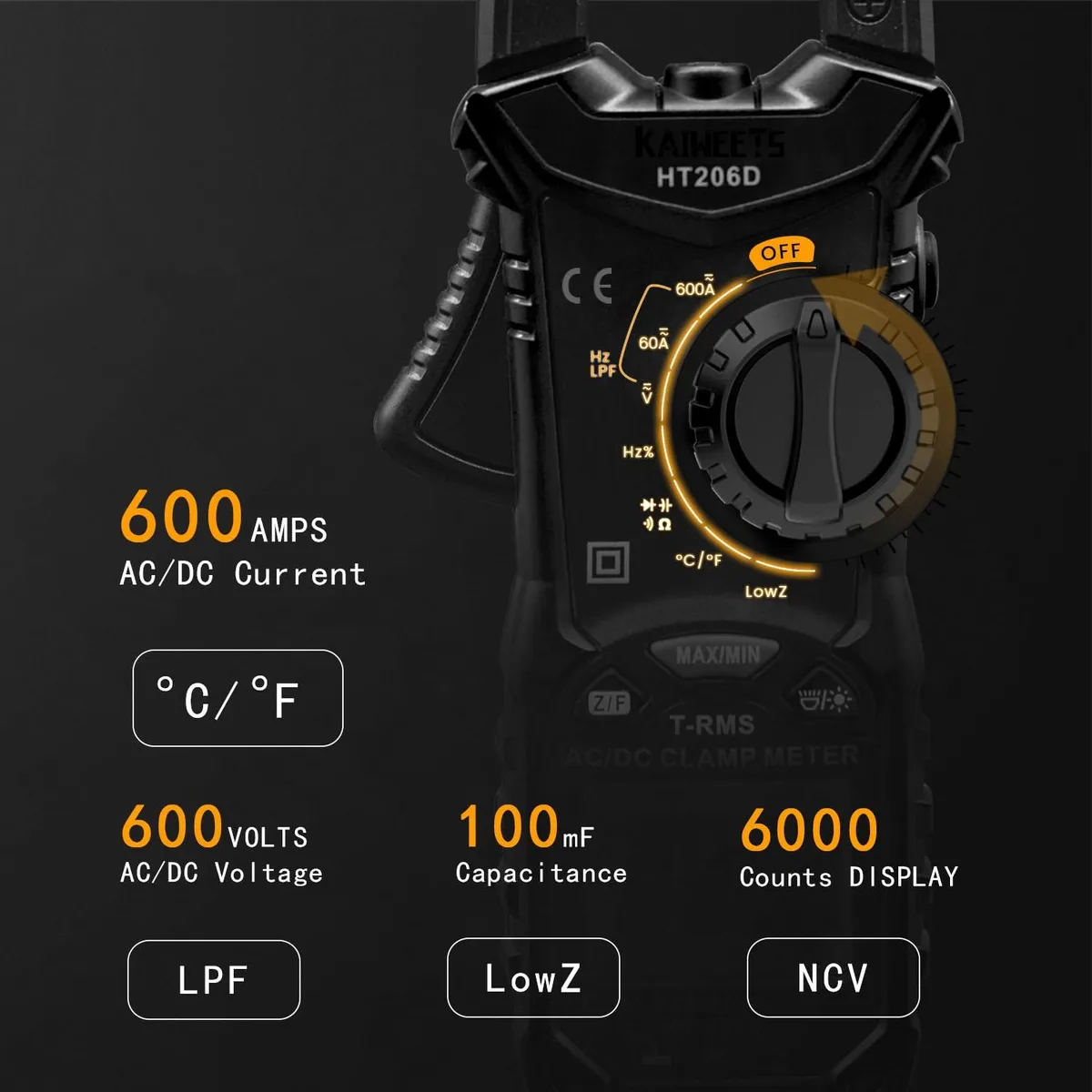

The KAIWEETS HT206D is a true-RMS digital clamp meter rated for CAT III 600 V environments. It measures AC and DC current up to 600 A, AC and DC voltage up to 600 V, plus resistance, capacitance, frequency, duty cycle, temperature and continuity. Electricians, HVAC technicians and DIY users gain a single instrument for panel work, motor drives and household circuits.

Jaw layout and daily handling

The clamp jaw is marked with the maximum rated voltage and current values for quick reference and is designed for one-hand operation. A low-impedance input reduces ghost-voltage errors while a low-pass filter improves accuracy on variable-frequency drive signals. Non-contact voltage detection activates with a thumb press on the right-side button and the two-colour backlit display turns red when voltage exceeds 80 V or current exceeds 3 A.

Interface and safety limits

The meter conforms to IEC 61010-1 and provides double insulation for CAT III 600 V service. Auto-ranging covers six ranges each for voltage, current and resistance up to 60 MΩ. Readings are presented on a 6000-count display. The device powers from a battery and shuts down automatically after 15 minutes of inactivity. It does not suit measurements above 600 V or 600 A, nor installations requiring CAT IV ratings.

Highlights

  • True-RMS accuracy on non-linear loads
  • LowZ and LPF prevent ghost-voltage errors
  • NCV detects live wires without contact
  • Red backlight warns above 80 V or 3 A
  • IEC 61010-1 CAT III 600 V safety rating

Specifications

BrandKAIWEETS
FeaturesIec 61010-1:2000-1, Cat III 600v, Battery Powered, false
Height7.5 L x 2.8 W x 1.3 H inches
Width7.5 L x 2.8 W x 1.3 H inches
Length7.5 L x 2.8 W x 1.3 H inches
Weight0.48 pounds
Sports Team1 Piece
TypeMultimeters, Tach & Dwell Meters

Questions about this item

What safety category and voltage rating does the IEC 61010-1 standard give this clamp meter?

It complies with IEC 61010-1 and is rated CAT III 600V, meaning it is suited for distribution-level circuits up to 600 volts.

What are the physical dimensions and weight of the HT206D?

The meter measures 7.5 inches long, 2.8 inches wide and 1.3 inches high, weighing 0.48 pounds for one-hand operation.

How do you measure current correctly with this clamp meter?

Clamp the jaw around a single conductor only, not the whole power cord, and select AC or DC current range 60A or 600A.
