Orange handheld clamp meter with D-shaped jaw and LCD display

KAIWEETS Digital Clamp Meter Multimeter D-Shaped Jaw 4000 Counts

SKU CH-XH8S-ND1CZ

Measures AC/DC current to 400 A and voltage to 600 V with a D-shaped jaw opening to 1.1 inches, 4000-count display, NCV alerts, flashlight and auto power-off

  • FeaturesClamp Meter, Test Leads, Thermocouple, Battery, Case, Iec610
  • Height19.35 L x 7.9 W x 3.45 H centimeters
  • Width19.35 L x 7.9 W x 3.45 H centimeters
  • Length19.35 L x 7.9 W x 3.45 H centimeters
  • Weight0.41 kilograms
  • Sports Team1 Piece
  • True-RMS accuracy for AC/DC current and voltage up to 600 V
  • D-shaped jaw opens 1.1 inches for secure cable clamping
  • Non-contact voltage detection with audible and visual alarms
  • Backlit LCD and built-in flashlight for clear readings in dim areas
  • Auto power-off after 15 minutes extends battery life

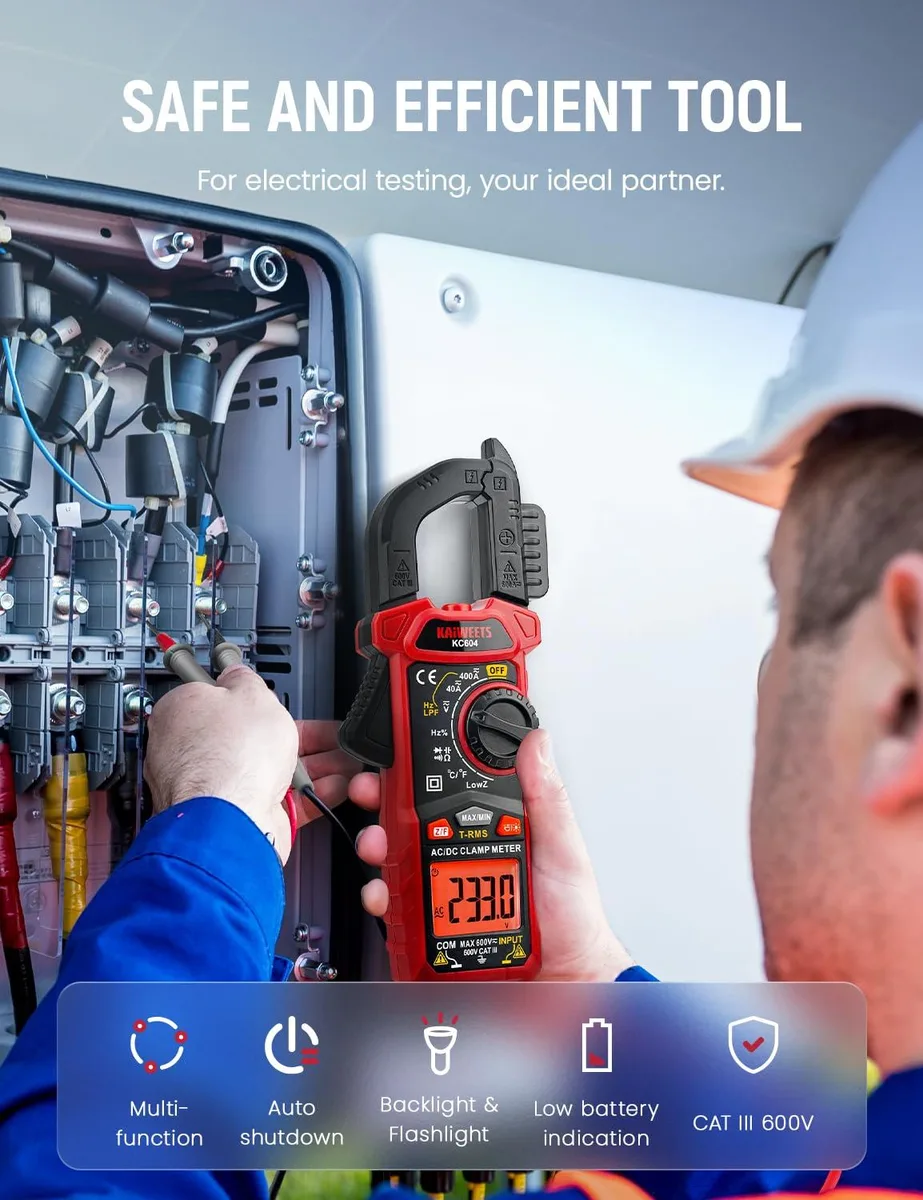

True-RMS Clamp Meter for Electrical Work

This KAIWEETS digital clamp meter measures AC and DC current, AC and DC voltage, resistance, capacitance, frequency, temperature, continuity and diode. It includes a thermocouple, test leads, battery and carrying case. The instrument meets IEC 61010-1 CAT III 600 V safety requirements and is suited for electricians, automotive technicians, solar installers and DIY troubleshooting.

4000 Count Display with 40 A and 400 A Ranges

The 4000-count LCD provides readings on the 40 A and 400 A current ranges, 400 mV to 600 V voltage ranges and resistance up to 40 MΩ. Auto-ranging selects the appropriate scale automatically. Measurements beyond 400 A AC or DC, or above 600 V AC or DC, exceed the meter's capability and require a higher-rated instrument.

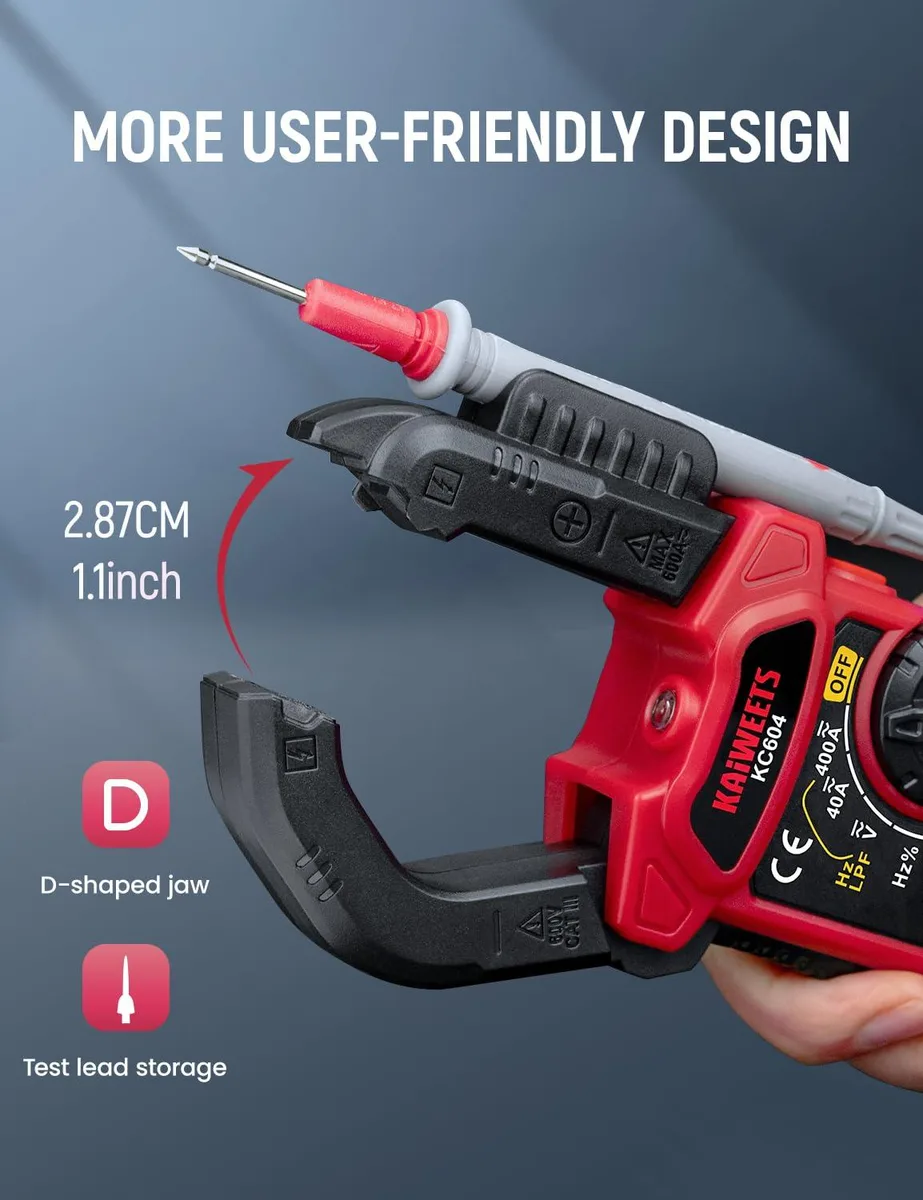

D-Shaped Jaw Opens to 1.1 Inches

The distinctive D-shaped clamp jaw opens to 1.1 inches, allowing secure clamping on larger conductors or bundled cables where standard round jaws may not fit. This physical aperture is the key specification that determines whether the meter can access the wiring in a given panel or conduit.

Highlights

  • True-RMS accuracy for AC/DC current and voltage up to 600 V
  • D-shaped jaw opens 1.1 inches for secure cable clamping
  • Non-contact voltage detection with audible and visual alarms
  • Backlit LCD and built-in flashlight for clear readings in dim areas
  • Auto power-off after 15 minutes extends battery life

Specifications

BrandKAIWEETS
FeaturesClamp Meter, Test Leads, Thermocouple, Battery, Case, Iec61010-1, Cat Iii 600v, Battery Powered, true
Height19.35 L x 7.9 W x 3.45 H centimeters
Width19.35 L x 7.9 W x 3.45 H centimeters
Length19.35 L x 7.9 W x 3.45 H centimeters
Weight0.41 kilograms
Sports Team1 Piece
TypeMultimeters, Tach & Dwell Meters

Questions about this item

Will the 1.1 inch D-shaped jaw fit around the same cables as my older clamp meter?

The jaw opens to 1.1 inches, so it will accommodate any conductor that fits within that diameter; compare the cable's outer insulation to 1.1 inches before purchasing

How can I verify the 4000-count display is reading correctly after setup?

Select a known voltage source such as a household outlet, confirm the auto-ranging display shows the expected AC voltage within the 600 V range, and check that the backlight and flashlight illuminate

Which accessories are included and what must I buy separately for temperature measurements?

The box contains the clamp meter, test leads, a thermocouple for temperature, a battery and a carrying case; no additional items are required for temperature readings
