Satin chrome mortise cylinder, solid brass, 1-1/8 inch length, Arrow AR1 keyway

Kaba Group

Kaba Group 7185AA1-26D 1-1/8" mortise cylinder door lock

SKU CH-94S8-1WEB5 MPN 7185AA1-26D

Solid brass mortise cylinder with Arrow AR1 keyway, 1-1/8" length and standard cam for 1.150 x 32 UNS threads

  • FinishSatin Chrome
  • Selling UnitBox
  • KeyingKeyed Different
  • Solid brass construction resists wear and corrosion
  • Satin chrome finish matches modern door hardware
  • 1-1/8 inch length fits standard mortise lock prep
  • Standard cam #1 works with most mortise lock bodies
  • Arrow AR1 keyway provides 5-pin tumbler security

Solid brass mortise cylinder for standard doors

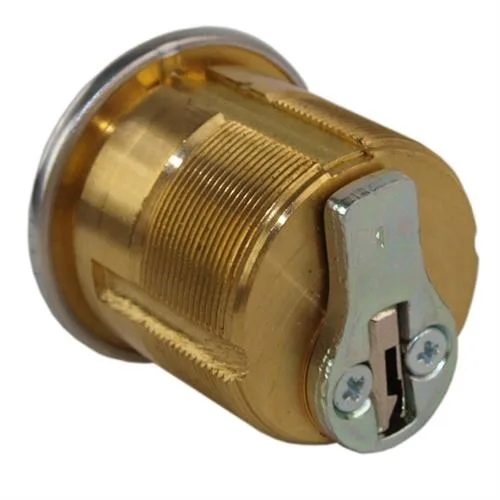

This Ilco 7185AA1-26D cylinder is machined from solid brass with a satin chrome US26D finish. It measures 1-1/8 inches in length and uses a 5 pin tumbler with an Arrow AR1 keyway. The cylinder face is 1.360 inches in diameter and the thread size is 1.150 x 32 UNS.

Suits replacements needing a Standard Cam #1

It fits mortise locks that accept a Standard Cam #1 and the specified thread and face dimensions. Buyers who need a different cam profile, a different keyway, or a cylinder length matched to another door thickness should look at something else.

Verify thread, face diameter and cam before ordering

Check that the existing lock uses a 1.150 x 32 UNS thread and a 1.360 inch cylinder face. Confirm the cam required is Standard Cam #1 and that the 1-1/8 inch length matches the door preparation.

Highlights

  • Solid brass construction resists wear and corrosion
  • Satin chrome finish matches modern door hardware
  • 1-1/8 inch length fits standard mortise lock prep
  • Standard cam #1 works with most mortise lock bodies
  • Arrow AR1 keyway provides 5-pin tumbler security

Specifications

BrandIlco
Model7185AA1-26D
FinishSatin Chrome
Selling UnitBox
KeyingKeyed Different

Questions about this item

What mortise lock body thread size must I already have for the 1.150 x 32 UNS cylinder to install correctly?

Your existing mortise lock body must use a 1.150 x 32 UNS thread so the cylinder screws in and aligns with the Standard Cam #1.

Will the Arrow AR1 keyway work with the Arrow AR1 keys I already use on other doors?

Yes, the cylinder uses the Arrow AR1 keyway, so keys cut for that keyway will operate this lock alongside your current hardware.

How can I confirm the 1.360 diameter face sits flush after installation?

After threading the cylinder in, the 1.360 (34.5 mm) face should sit flat against the lock trim with the Standard Cam #1 engaging the latch bolt smoothly.
