Satin chrome solid brass cylinder lock with three tailpieces

Kaba Group

Kaba Group 15395AA-26D Satin Chrome Door Lock Arrow AR1 Keyway

SKU CH-W7ZC-GMC38 MPN 15395AA-26D

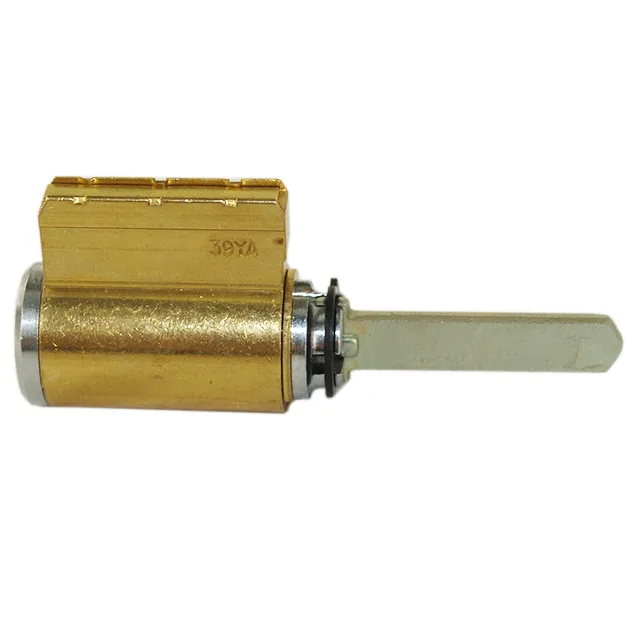

Solid brass replacement cylinder with Arrow AR1 keyway, five pins and three rigid tailpieces for knob or lever handles

  • FinishSatin Chrome
  • Selling UnitBox
  • KeyingKeyed Different
  • Solid brass construction resists wear
  • Satin chrome US26D finish matches modern hardware
  • Five-pin tumbler provides reliable security
  • Three rigid tailpieces fit multiple knob depths
  • Arrow AR1 keyway works with existing keys

Replacement Cylinder for Key-In-Knob / Lever Locks

The Ilco 15395AA-26D is a solid brass replacement cylinder designed for key-in-knob and key-in-lever locksets. It uses the Arrow AR1 keyway and comes keyed different from the factory. A satin chrome US26D finish matches common commercial hardware.

Upgrade from worn or incompatible cylinders

This unit replaces an existing cylinder when the original mechanism is worn, damaged or uses a different keyway. The jump is worth it when you need a solid brass body with a 5 pin tumbler and three rigid tailpieces included. The three tailpieces measure .75, 1.11 and 1.30 inches to cover common lever and knob depths.

Verify tailpiece length and keyway before ordering

Check that your lockset accepts a standard key-in-knob or key-in-lever cylinder with a rigid tailpiece. Confirm the Arrow AR1 keyway matches your existing key system or master key plan. Ensure the tailpiece length required by your hardware matches one of the three supplied pieces.

Highlights

  • Solid brass construction resists wear
  • Satin chrome US26D finish matches modern hardware
  • Five-pin tumbler provides reliable security
  • Three rigid tailpieces fit multiple knob depths
  • Arrow AR1 keyway works with existing keys

Specifications

BrandIlco
Model15395AA-26D
FinishSatin Chrome
Selling UnitBox
KeyingKeyed Different

Questions about this item

What tailpiece lengths are included for the 15395 cylinder?

The cylinder ships with three rigid tailpieces: AA at .75 inch, AB at 1.11 inch, and AC at 1.30 inch.

How is the cylinder installed in a key-in-knob or lever lock?

Remove the existing cylinder, choose the tailpiece that matches the lock chassis, insert the cylinder with the key turned to the installation position, and secure it with the set screw.

Can the cylinder be re-keyed later if keys are lost?

Yes, the 5-pin Arrow AR1 cylinder can be re-pinned by a locksmith to a new key combination without replacing the entire unit.
