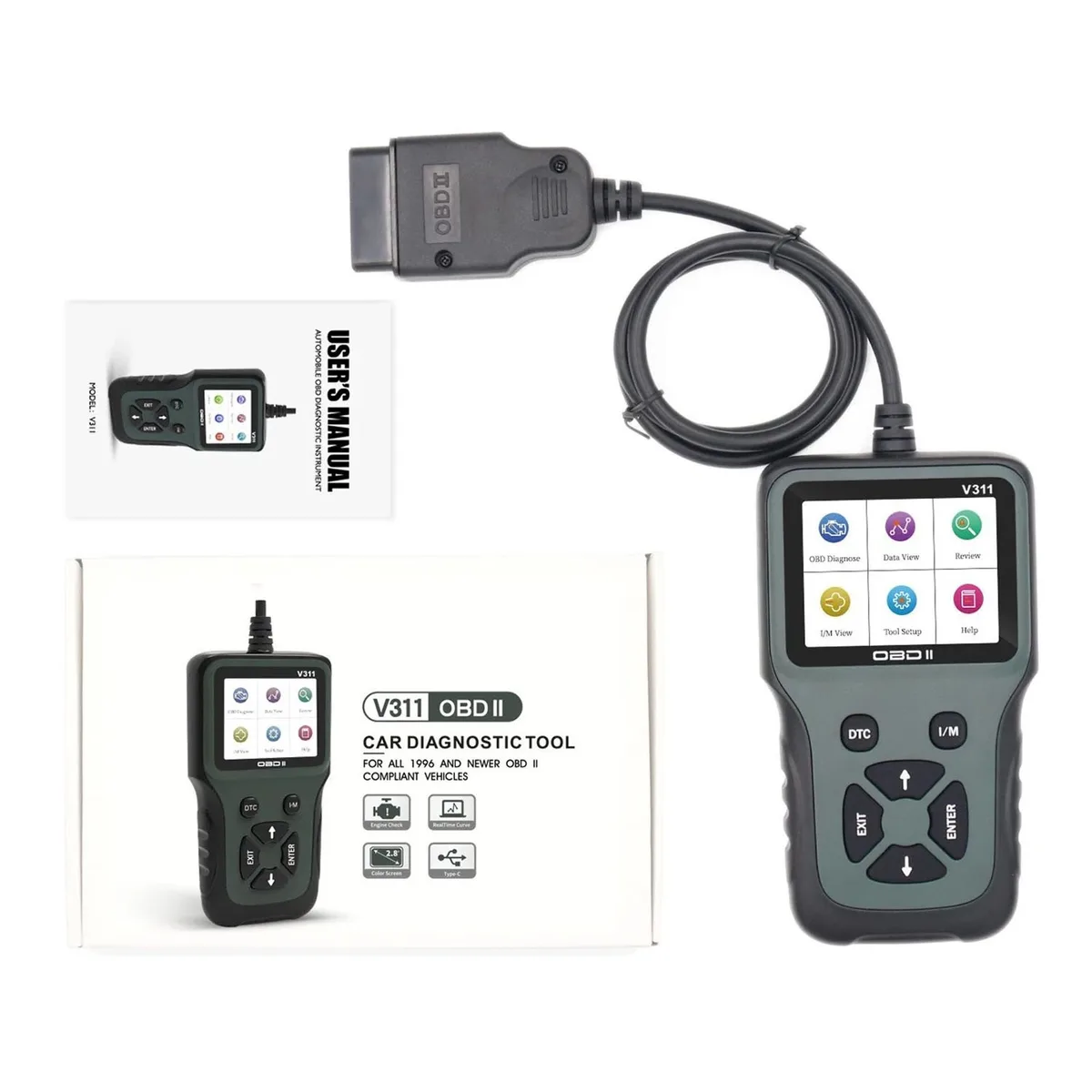

Black rectangular OBD2 scanner with 2.8 inch colour screen and cable

JinTaoRui

JinTaoRui OBD2/EOBD Diagnostic Scanner 2.8" TFT 8-36V Black

SKU CH-PJV0-BA9GX

Reads OBD2/EOBD codes, streams live data and waveforms for over 16 parameters on a 2.8" TFT screen, supports four languages and 8–36V systems

  • Reads fault codes and live data via OBD2 and EOBD protocols
  • 8-inch TFT colour screen shows real-time parameter waveforms
  • Stores and plays back recorded data for later review
  • Operates on 8–36 V supply with over-current and over-voltage protection
  • Four-foot extension cable allows use outside the vehicle

Handheld OBD2/EOBD scanner for DIY diagnostics

This JinTaoRui unit reads and clears fault codes on vehicles that follow the OBD2 or EOBD standards. A 2.8-inch TFT colour screen shows live data and waveforms for over sixteen engine parameters such as coolant temperature and fuel trim. The tester operates from 8 to 36 volts, draws 58 mA, and includes over-current and over-voltage protection for workshop safety.

Four-foot extension cable and multilingual interface

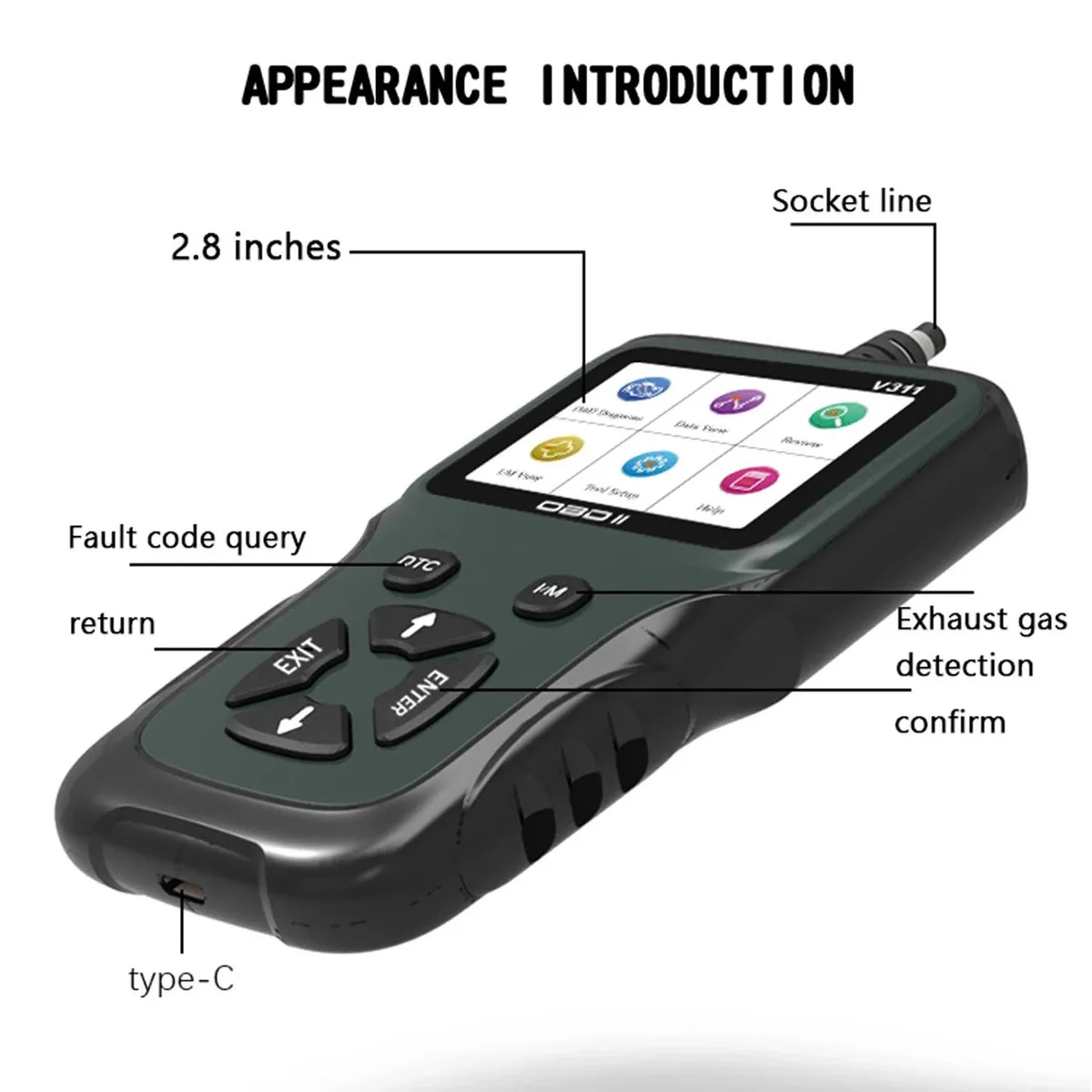

A 4-foot cord lets you position the 156 by 88 by 24 mm handset outside the cabin while the OBD plug stays connected. Menus and the built-in DTC database appear in English, Chinese, German or French, and three units of measurement are selectable. One-button I/M readiness, screen and button self-test, plus data storage and playback complete the onboard toolkit without extra software.

Suits home mechanics needing code reading

Technicians who require bi-directional control, ABS or airbag coverage, or manufacturer-specific modules will need a more advanced platform. The device weighs 198 grams and fits in a 200 by 130 by 43 mm box, making it portable for occasional use but limited to the standard OBD2/EOBD feature set.

Highlights

  • Reads fault codes and live data via OBD2 and EOBD protocols
  • 8-inch TFT colour screen shows real-time parameter waveforms
  • Stores and plays back recorded data for later review
  • Operates on 8–36 V supply with over-current and over-voltage protection
  • Four-foot extension cable allows use outside the vehicle

Specifications

No published specifications for this item yet.

Questions about this item

Will the 2.8 inch TFT screen or the built-in buzzer need replacement after long use?

The 2.8 inch TFT color display and buzzer are solid-state parts with no user-replaceable bulbs; the unit includes a screen/button self-test to verify operation.

Does the 58 mA operating current at 8 to 36 V limit how long I can run the scanner continuously?

The 58 mA draw is very low, so the 8 to 36 V supply range and overcurrent protection let it run all day from the vehicle battery without draining it.

How hot or noisy does the scanner get when left plugged in for a full workday?

With only 58 mA current draw and no fan, the plastic housing stays cool and silent; the only sound is the brief buzzer tone for alerts.
