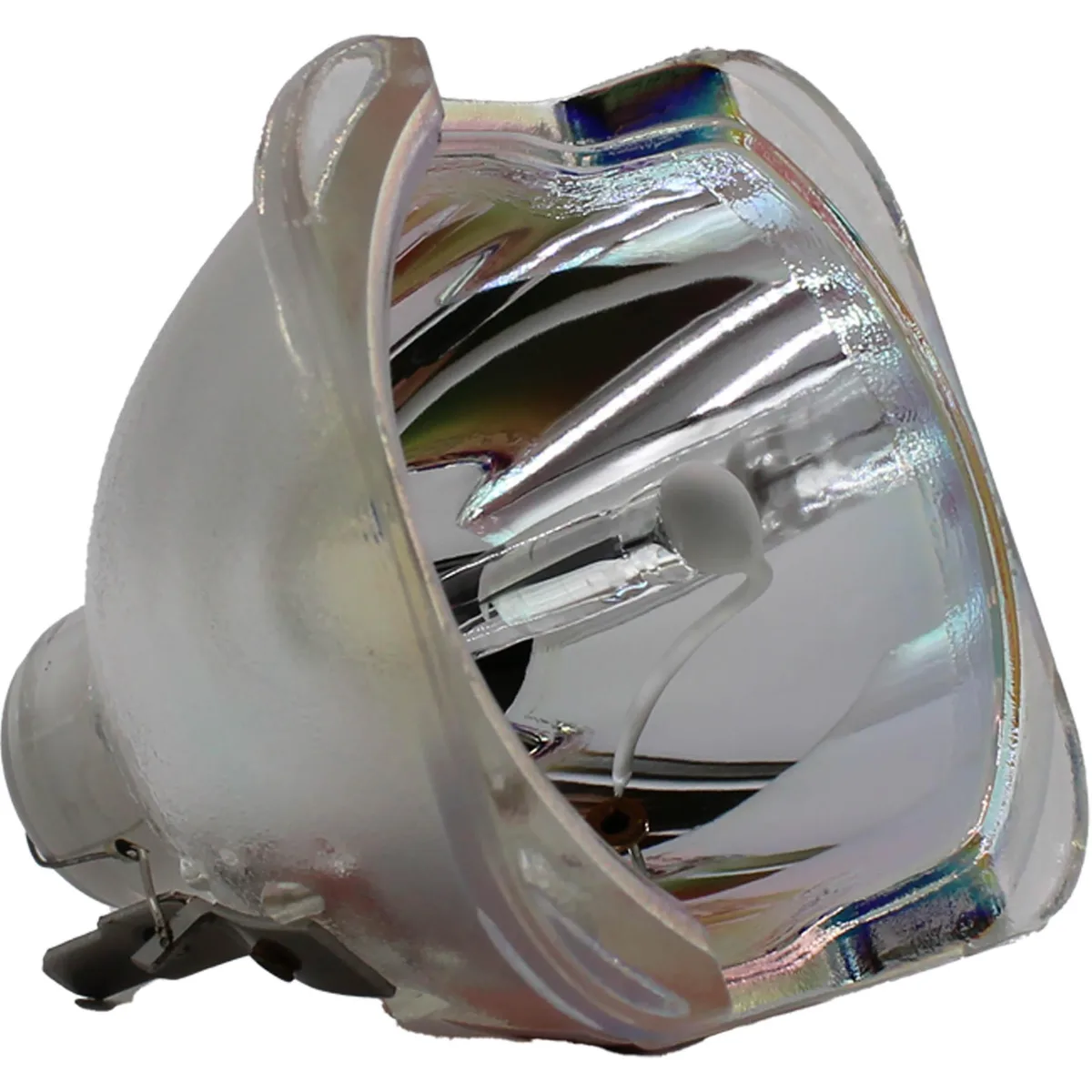

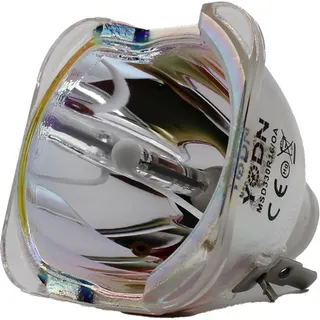

Bare 330 W discharge arc lamp, compact rectangular housing 56 by 56 by 63 mm

Jaspertronics

Jaspertronics YODN 330W 16R/OA GTD-330 II BSW DLP Replacement Lamp

SKU CH-F219-69A06

330 W short-arc discharge lamp delivering 13,000 lm at 7,800 K with a 1.3 mm arc gap, 1,500 h rated life and universal burning position for GTD-330 II BSW and compatible moving-head fixtures

  • TypeProject Lamp
  • Weight0.2000
  • High intensity output from 330W arc discharge lamp
  • Reliable 1,500-hour average life reduces replacement frequency
  • Compact 56 x 56 x 63 mm dimensions fit multiple fixtures
  • High 7,800K color temperature with 75 CRI for accurate rendering
  • 13,000 lumen output delivers bright beam for stage applications

Compatible Fixtures

This 330W discharge lamp fits the GTD Lighting GTD-330 II BSW moving-head fixture and a wide range of other professional units including Chauvet Legend 330SR Beam, DTS Raptor, GTD Lighting GTD-330 FS, Lightsky Bumblebee and F330 series, PR Lighting XR 330 Spot and Showtec Infinity iB-16R. It is designed for stage, theatre, club and house-of-worship lighting applications.

Verify Fixture Compatibility

Before ordering, confirm that your moving-head fixture appears on the supported model list and that the lamp code MSD330R16/OA matches the original equipment specification. Check that the fixture operates with a 65V arc supply and accepts a lamp with a 1.3mm arc gap and 36mm working distance. Ensure the burning position requirement of any orientation is acceptable for your rigging layout.

Performance Characteristics

The lamp delivers 13,000 lumens at a 7,800K colour temperature with a CRI of 75, providing high-intensity output for beam and spot effects. Average rated life is 1,500 hours under normal operating conditions. The compact 56x56x63mm bare-bulb design allows direct replacement without additional modules, and the unit weighs 0.2000kg for easy handling during maintenance.

Highlights

  • High intensity output from 330W arc discharge lamp
  • Reliable 1,500-hour average life reduces replacement frequency
  • Compact 56 x 56 x 63 mm dimensions fit multiple fixtures
  • High 7,800K color temperature with 75 CRI for accurate rendering
  • 13,000 lumen output delivers bright beam for stage applications

Specifications

BrandJaspertronics
ModelGTD Lighting GTD-330 II BSW-LAMP
Part NumberGTD Lighting GTD-330 II BSW-LAMP
TypeProject Lamp
Weight0.2000

Questions about this item

What comes in the box and is a housing or reflector included?

The package contains the bare YODN 330W 16R/OA discharge lamp only; no housing, reflector or mounting hardware is supplied.

Which lamp code matches the GTD-330 II BSW fixture?

The correct part code is MSD330R16/OA, rated at 330 W with a 1.3 mm arc gap for the GTD-330 II BSW and the other listed moving-head models.

What does the 13,000 lumen rating mean in actual use?

At 7,800 K colour temperature and 75 CRI, the lamp delivers 13,000 lumens from a 330 W arc with a 1,500-hour average life in any burning position.
