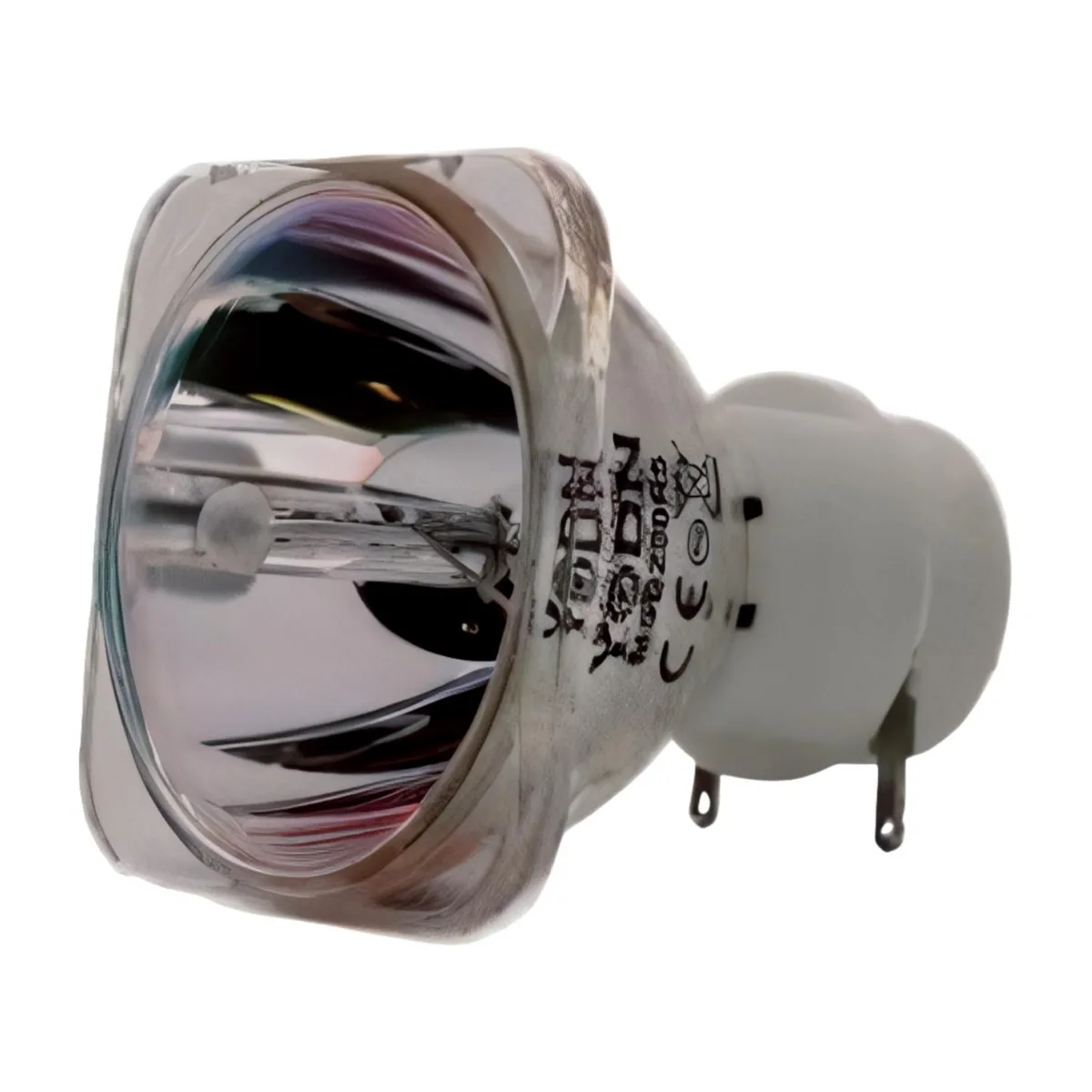

Compact bare discharge lamp with ceramic base, 51 by 61 mm, silver electrodes visible inside quartz arc tube

Jaspertronics

Jaspertronics Varytech Beam R5-LAMP 200W DLP Replacement Lamp

SKU CH-WMEH-C8PZC

200 W discharge arc lamp with 7,200 lm output and 8,000 K colour temperature for Varytech Beam R5 fixtures

  • TypeProject Lamp
  • Weight0.2000
  • 7,200 lumens deliver intense stage brightness
  • 8,000 K colour temperature ensures crisp white output
  • 3,000-hour rated life reduces replacement frequency
  • 1 mm arc gap enables precise optical focus
  • 200 W discharge lamp fits Varytech Beam R5 fixture

Compatible Fixture

The Jaspertronics Varytech Beam R5-LAMP is a 200W discharge lamp built for the Varytech Beam R5 moving-head fixture. It serves venues such as houses of worship, clubs, concerts, stages and theatres that need a direct replacement for the original light source.

Fixture Verification

Confirm that the fixture accepts a lamp with a 1.1 mm arc gap, 75 V operating voltage and a 34.5 mm working distance. The lamp measures 51 x 51 x 61 mm and weighs 0.2 kg, so the lamp housing and alignment mechanism must match those dimensions exactly.

Build and Daily Use

The bare bulb uses an arc discharge design rated for 3 000 hours at 7 200 lumens and 8 000 K colour temperature with a CRI of 70. Its any-position burning capability allows flexible fixture orientation, while the compact outline simplifies routine lamp changes during maintenance windows.

Highlights

  • 7,200 lumens deliver intense stage brightness
  • 8,000 K colour temperature ensures crisp white output
  • 3,000-hour rated life reduces replacement frequency
  • 1 mm arc gap enables precise optical focus
  • 200 W discharge lamp fits Varytech Beam R5 fixture

Specifications

BrandJaspertronics
ModelVarytech Beam R5-LAMP
Part NumberVarytech Beam R5-LAMP
TypeProject Lamp
Weight0.2000

Questions about this item

What comes in the box and does it include the lamp housing?

The box contains the bare YODN 200W 5R discharge lamp only; the projector housing is not included and must be reused or purchased separately.

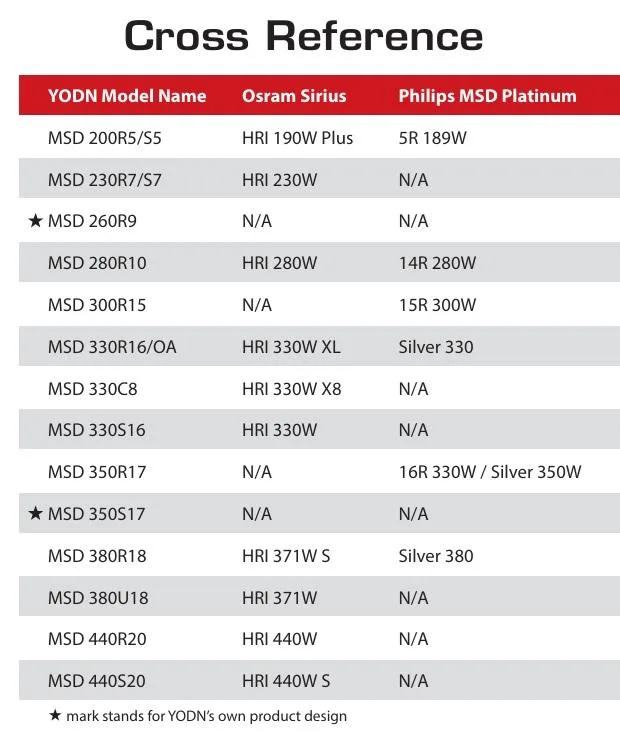

Which lamp code matches the Varytech Beam R5 fixture?

The compatible product codes are MSD200R5 and MSD200S5, both rated at 200W with a 1.1mm arc gap.

How bright is the 7,200 lumen output on stage?

At 8,000K colour temperature and CRI 70, the 7,200 lumen output delivers high-intensity cool-white light suitable for clubs, concerts and houses of worship.
