Jaspertronics U-Stage 5R High Pressure Stage Lamp for Elation Platinum Beam 5R 189W 8000 lm 2000 h

U-Stage 5R Replacement Lamp

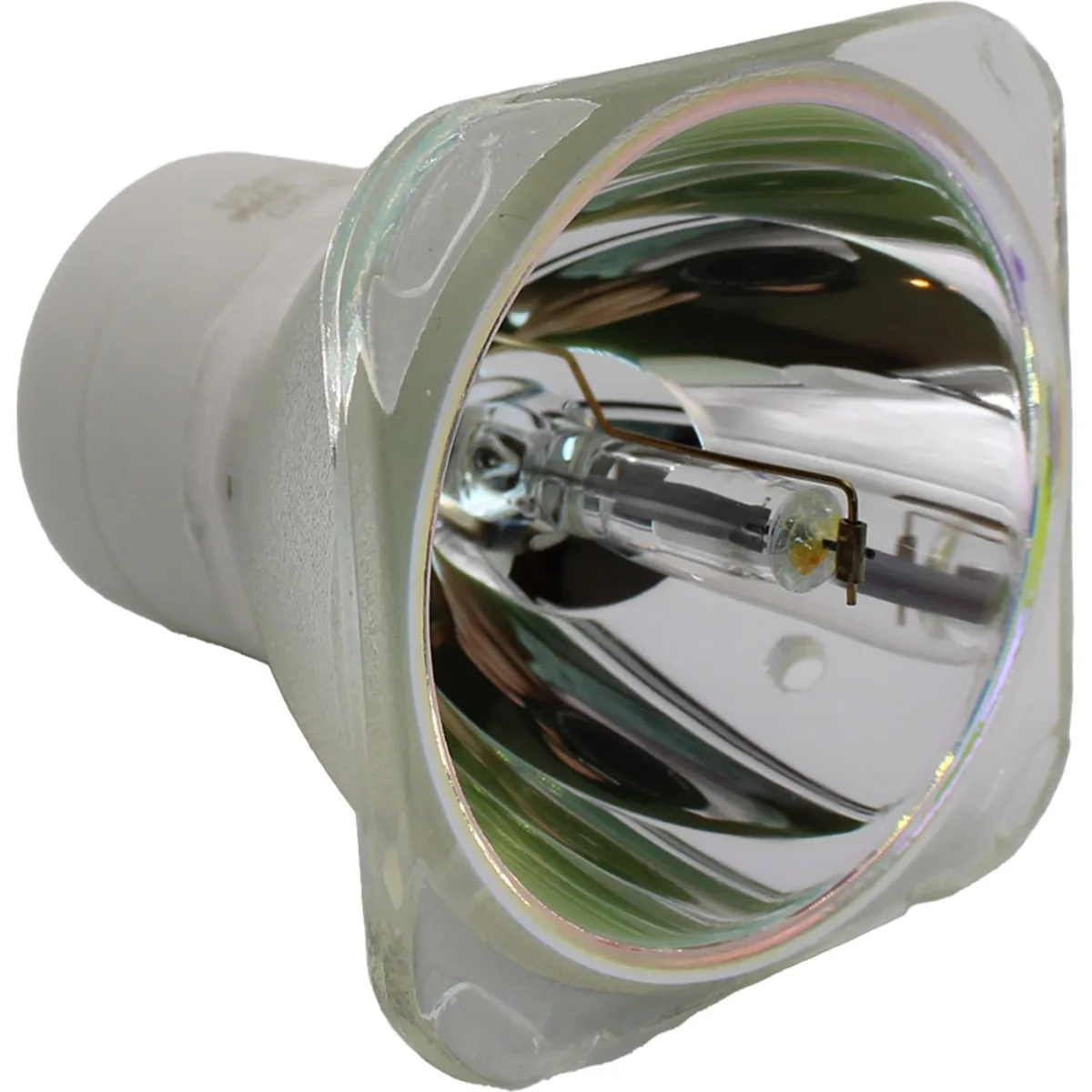

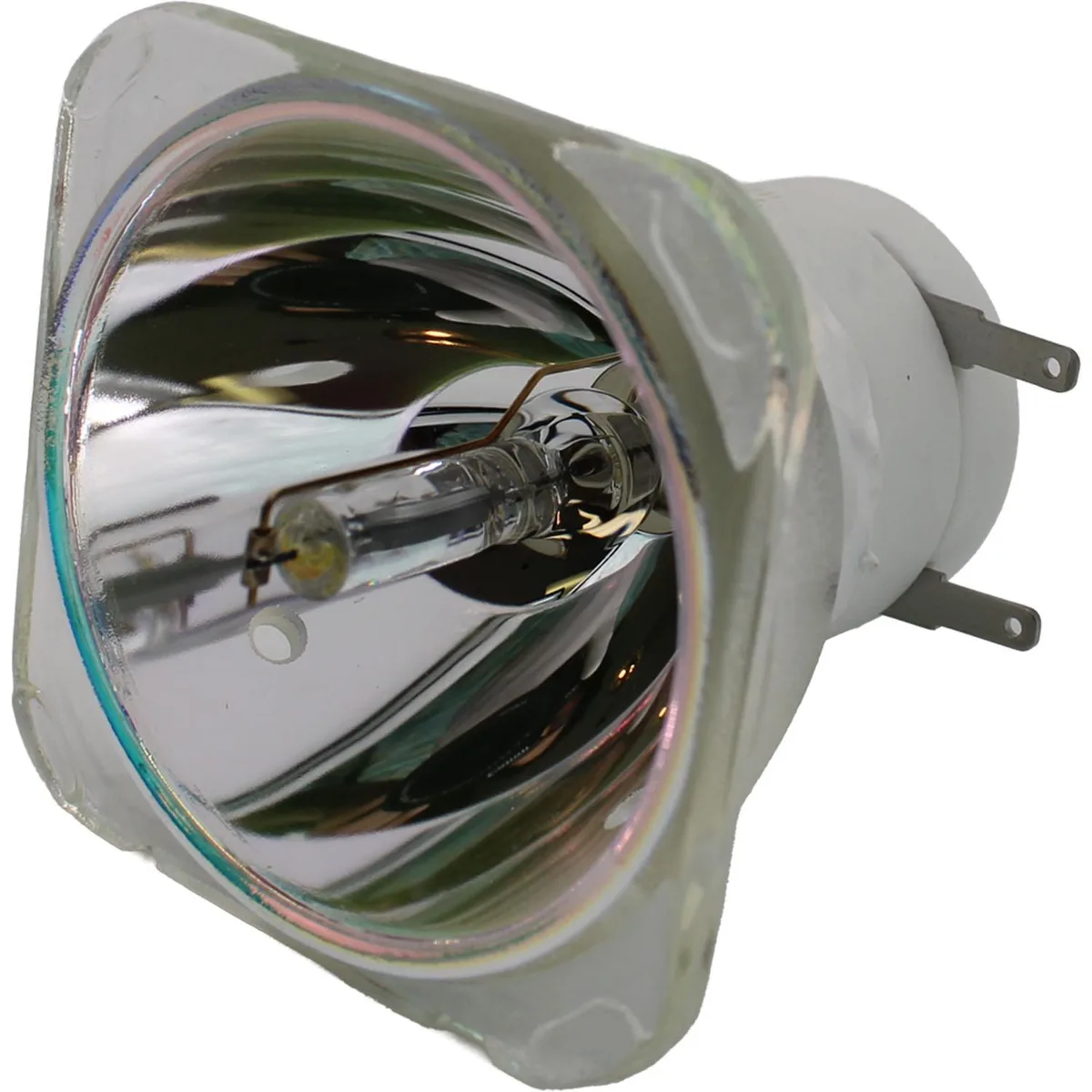

The Jaspertronics U-Stage 5R is a high-pressure short-arc discharge lamp built as a direct replacement for the Elation Platinum Beam 5R moving-head fixture. It delivers 8000 lm output at an 8000K colour temperature from a 189 W arc tube. The lamp operates at 75 V with a 0.9 mm arc gap and a 34.5 mm working distance, suited for stage, concert and nightclub lighting applications.

Universal Burn Position and Arc Constraints

The lamp is rated for universal burn position, allowing installation in any orientation the fixture requires. Its short-arc design with a 0.9 mm gap demands precise alignment within the optical system to maintain focus and output stability. The 34.5 mm working distance fixes the lamp's location relative to the reflector, so mechanical compatibility with the fixture's lamp holder is essential for proper operation.

2000-Hour Life and Output Headroom

Average rated life is 2000 hours at full 189 W power, providing a predictable maintenance interval for high-intensity shows. The 8000 lm output covers medium-throw beam and spot duties in clubs and theatres, but larger venues or longer throws will exceed its comfortable range. When the arc ages beyond the rated hours, output drops and colour shift increases, signalling the need for replacement.
