Jaspertronics
Jaspertronics U-Stage 5R High Pressure Stage Lamp 189W 8000lm
High-pressure short-arc stage lamp delivering 8000 lm at 8000K with 2000-hour rated life
- TypeProject Lamp
- ColorAssorted
- 8000 lumen output for bright stage projection
- 189 watt high-pressure short arc lamp technology
- 2000 hour rated life reduces replacement frequency
- 8000K colour temperature delivers crisp white light
- Compatible with ADJ Vizi Spot 5RX and other moving heads
Direct replacement for ADJ Vizi Spot 5RX
The Jaspertronics U-Stage 5R is a 189 W high-pressure short-arc stage lamp rated at 8000 lumens and 8000 K colour temperature. It matches the ADJ Vizi Spot 5RX-LAMP part number and is built for moving-head fixtures in concert, club and theatre environments.

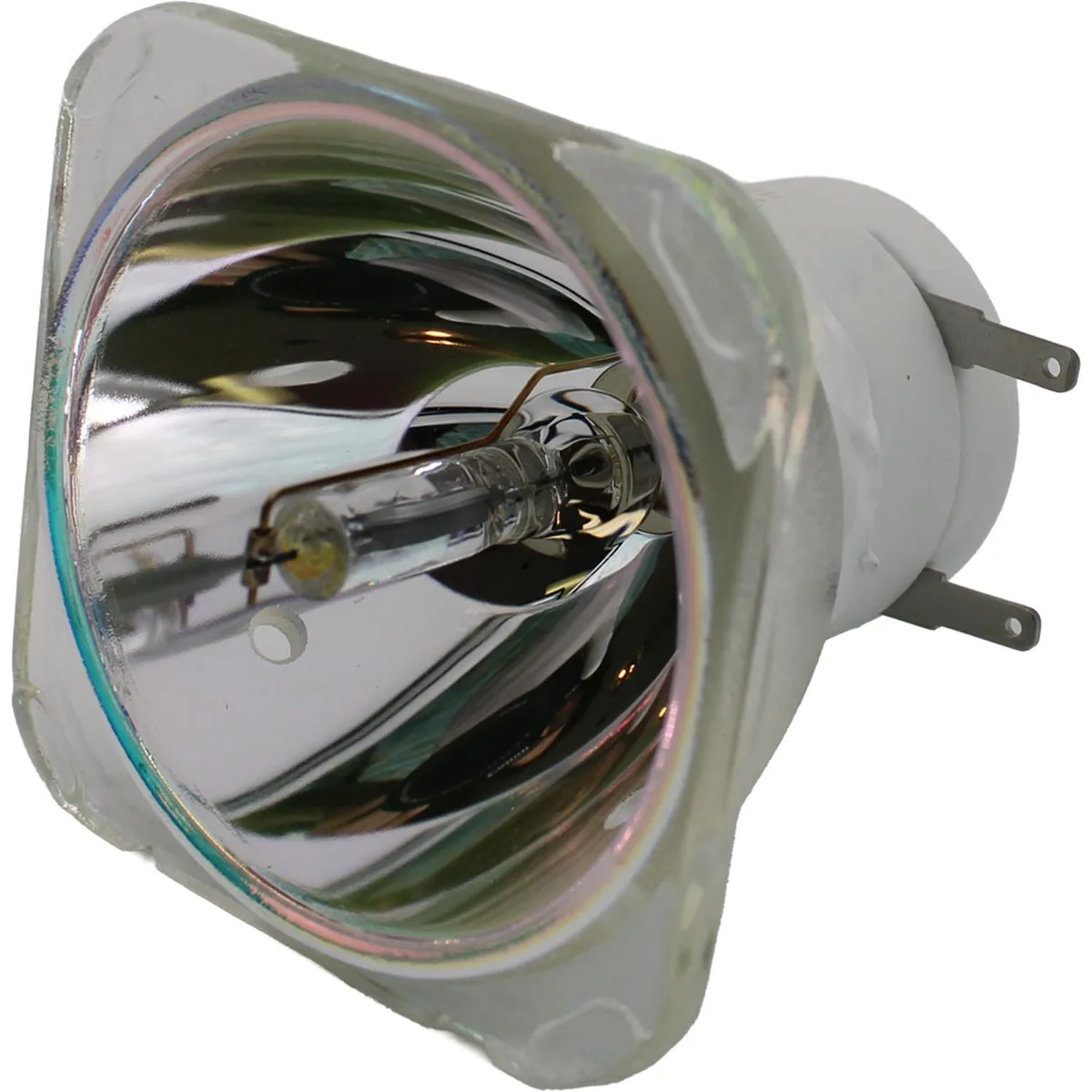

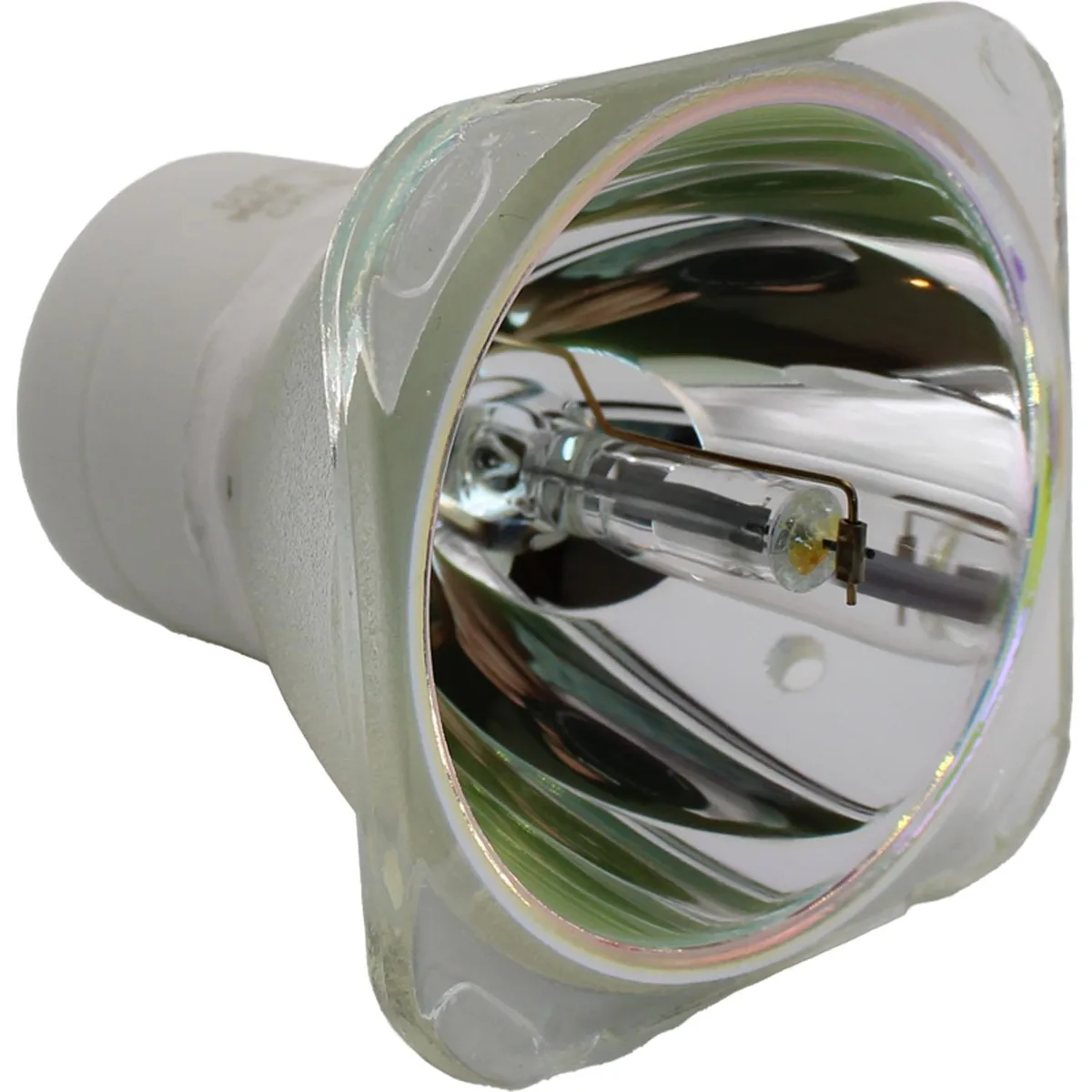

Compact quartz envelope with universal burn position
The 51 mm by 56 mm envelope houses a 0.9 mm arc gap at a 34.5 mm working distance, operating at 75 V. Universal burn positioning allows the lamp to be mounted in any orientation without affecting output stability or rated life.
Replaces worn NSL-189 5R lamps in listed moving
Swapping a dimmed or expired lamp restores full 8000 lm output and 2000-hour rated life across compatible Clay Paky, Elation, Martin, Mega Lite, ADJ, Artfox, Moown and Sagitter fixtures. The upgrade is justified when output drop-off or colour shift degrades show quality.
Highlights
- 8000 lumen output for bright stage projection
- 189 watt high-pressure short arc lamp technology
- 2000 hour rated life reduces replacement frequency
- 8000K colour temperature delivers crisp white light
- Compatible with ADJ Vizi Spot 5RX and other moving heads
Specifications
| Brand | Jaspertronics |
|---|---|
| Model | ADJ Vizi Spot 5RX-LAMP |
| Part Number | ADJ Vizi Spot 5RX-LAMP |
| Type | Project Lamp |
| Color | Assorted |
Questions about this item
What is the arc gap and how does it relate to the 8000 lumen output?
The 0.9 mm arc gap in this high-pressure short arc lamp enables the 189 W discharge to produce 8000 lm at 8000 K colour temperature.
What are the physical dimensions and working distance required for the fixture?
The lamp measures 51 x 56 mm with a 34.5 mm working distance, matching the ADJ Vizi Spot 5RX and other listed moving-head fixtures.
How is the lamp installed and which orientation step is critical?
Insert the lamp into the fixture's socket, secure the retaining clip, and reset the hour counter; the universal burn position means orientation does not affect operation.
