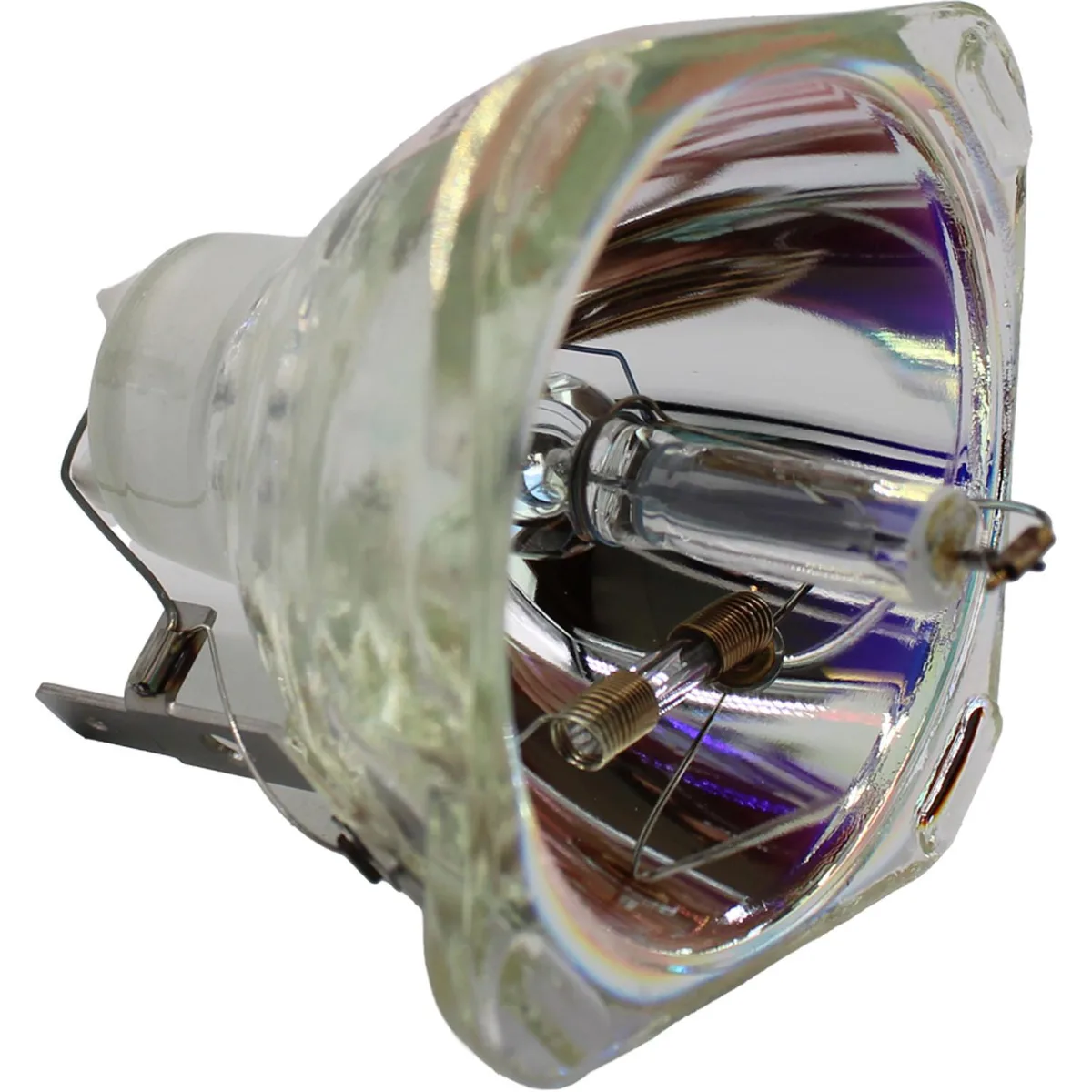

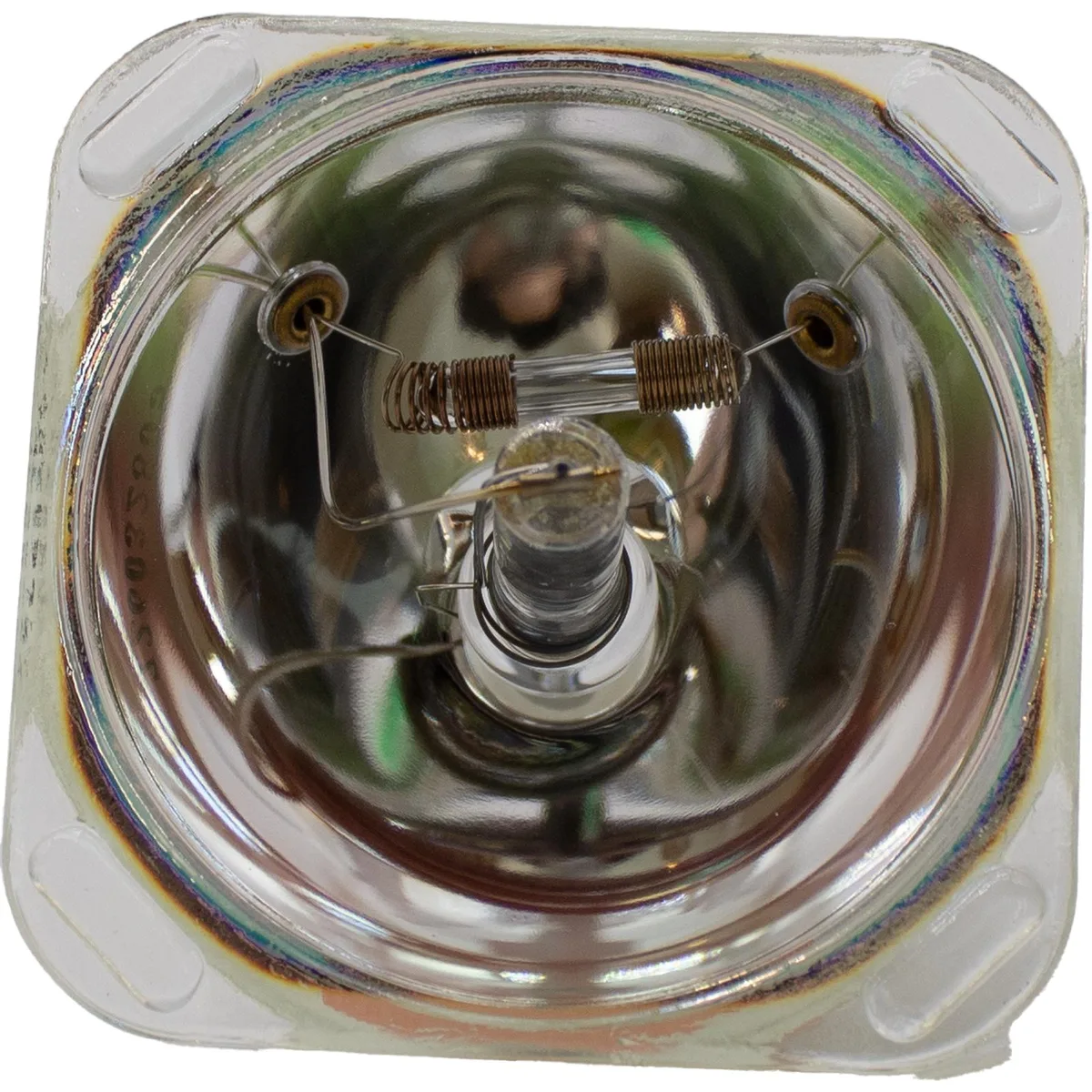

Compact high-pressure stage lamp with silver electrodes and ceramic base, 46 by 45 mm

Jaspertronics

Jaspertronics U-Stage 2R High-Pressure Stage Lamp for Microh Ultra Trinity 150

SKU CH-C13B-P23ZW

High-pressure short-arc lamp rated 5150 lumens at 8000K with 6000-hour life for Microh Ultra Trinity 150 moving heads

  • TypeProject Lamp
  • ColorAssorted
  • High lumen output of 5150 lm for bright stage illumination
  • High color temperature of 8000K delivers crisp white light
  • Long average rated life of 6000 hours reduces replacement frequency
  • Universal burn position allows flexible fixture mounting
  • Compatible with Microh Ultra Trinity 150 and other 2R moving head fixtures

Compatible Fixtures

This high-pressure short-arc stage lamp replaces the original module in the Microh Ultra Trinity 150 moving-head fixture. It also fits a wide range of 2R-class beam, spot and hybrid heads from brands such as Elation, Martin, Chauvet, ADJ, Robe and others listed in the manufacturer data. The lamp delivers 5150 lm at 8000K colour temperature for bright, cool-white output in concert, club and theatrical installations.

Upgrade Considerations

The lamp is a direct replacement for the Ushio NSL-132 2R and carries the same 132 W, 69 V and 0.8 mm arc-gap specifications. Swapping to this unit is worthwhile when the existing lamp has reached or exceeded the 6000 h rated life, when output has visibly dimmed, or when colour consistency across multiple fixtures has drifted. No electrical or optical redesign is required because the form factor and burn position are identical.

Installation Notes

Installation follows the fixture manufacturer's standard lamp-change procedure: power down, allow the lamp to cool, open the head, remove the old module and insert the new one, ensuring the 37.7 mm working distance seats correctly. The universal burn position allows any mounting orientation. Common issues include touching the quartz envelope with bare fingers, which creates hot spots and shortens life, and failing to reset the fixture's lamp-hour counter after replacement.

Highlights

  • High lumen output of 5150 lm for bright stage illumination
  • High color temperature of 8000K delivers crisp white light
  • Long average rated life of 6000 hours reduces replacement frequency
  • Universal burn position allows flexible fixture mounting
  • Compatible with Microh Ultra Trinity 150 and other 2R moving head fixtures

Specifications

BrandJaspertronics
ModelMicroh Ultra Trinity 150
Part NumberMicroh Ultra Trinity 150
TypeProject Lamp
ColorAssorted

Questions about this item

What are the lamp's physical dimensions and working distance for the Microh Ultra Trinity 150 fixture?

The lamp measures 46 x 45 mm with a working distance of 37.7 mm, designed to fit the Microh Ultra Trinity 150 moving head fixture.

How is the U-Stage 2R lamp installed, and what orientation step is critical?

Install by inserting the lamp into the fixture's socket; the burn position is universal, so no specific orientation is required during installation.

When should the lamp be replaced based on its rated lifespan?

The average rated life is 6000 hours; plan replacement around this interval to maintain the 5150 lumen output and 8000K color temperature for stage use.
