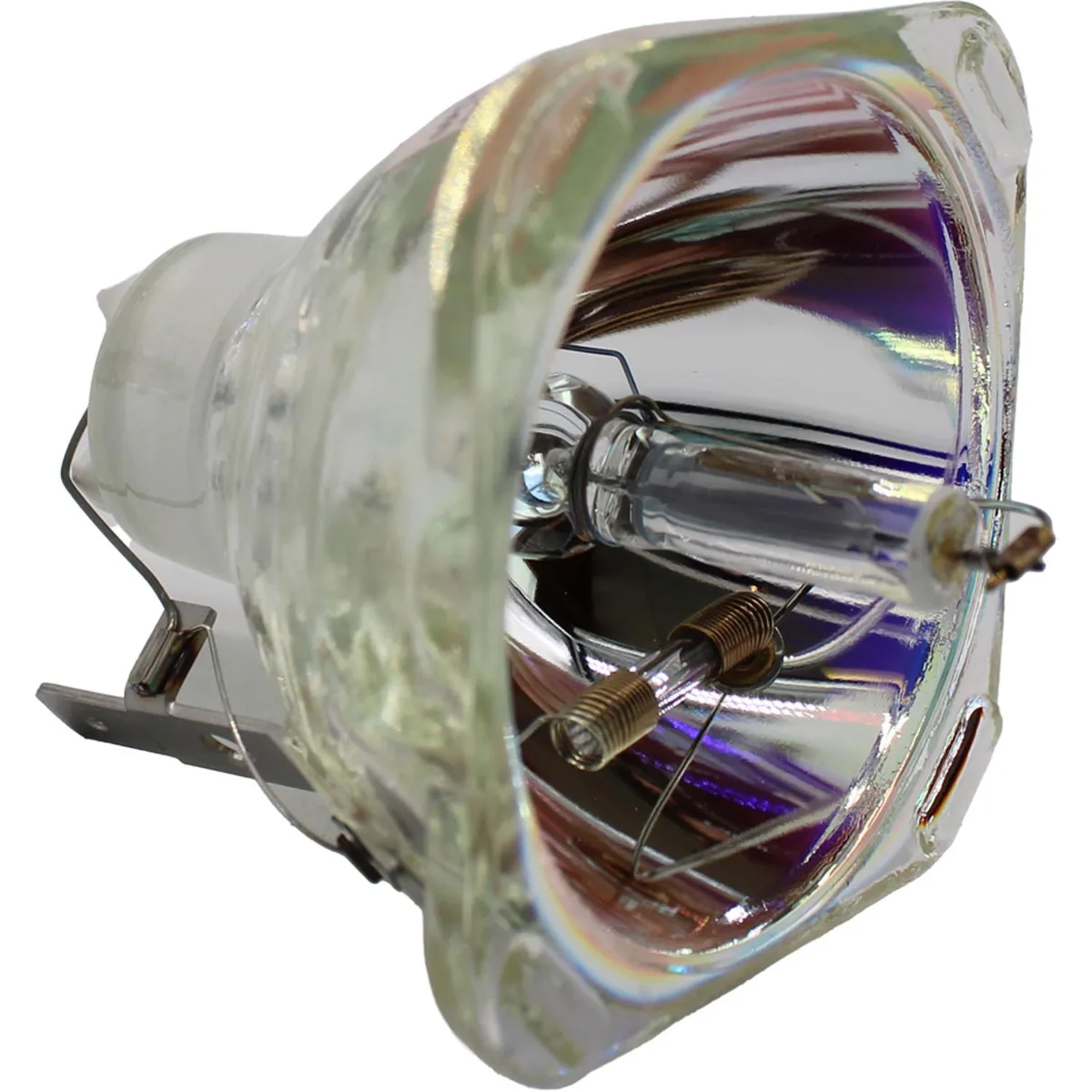

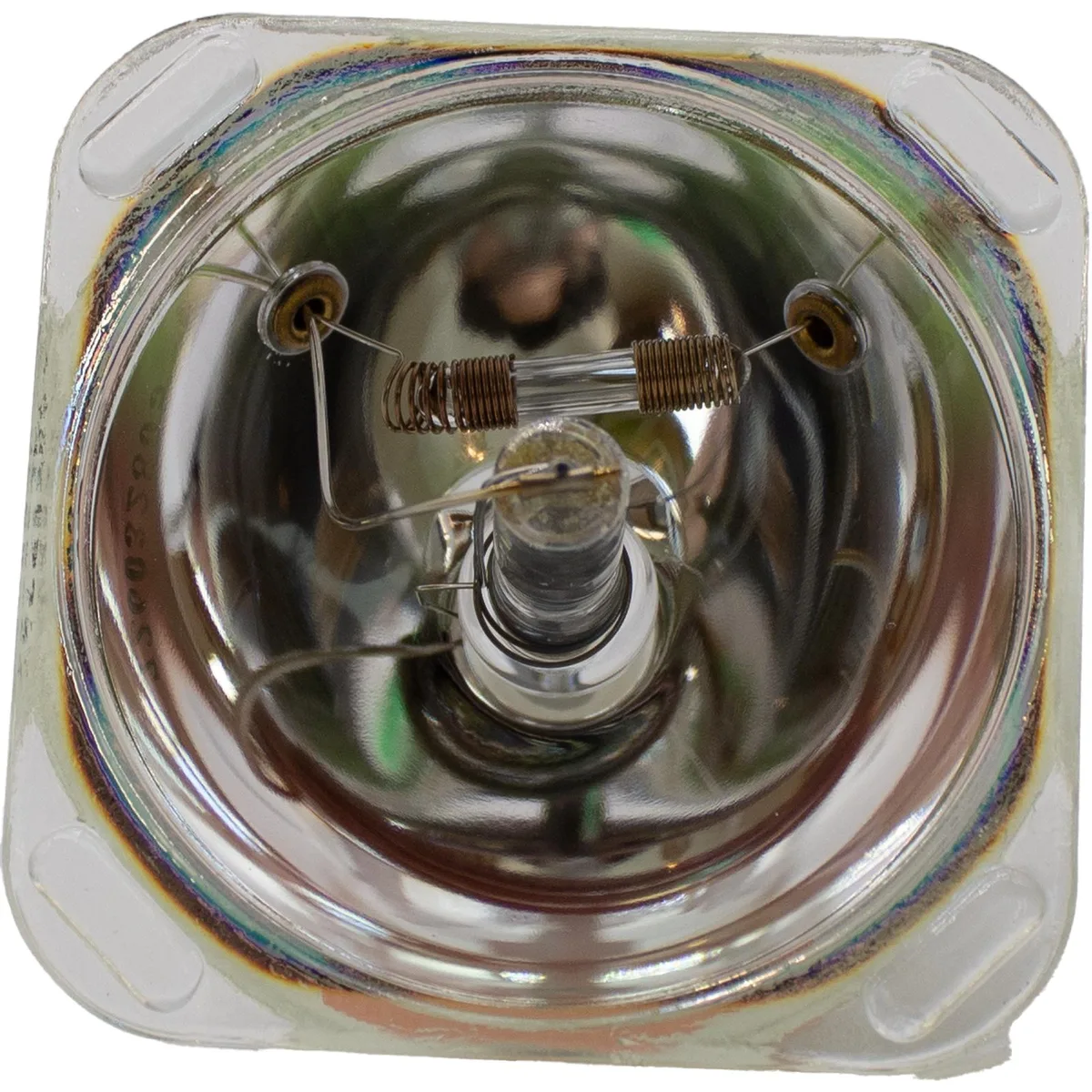

Compact high-pressure arc lamp with ceramic base and clear glass envelope, 46 by 45 mm

Jaspertronics

Jaspertronics U-Stage 2R 132W 69V High-Pressure Stage Lamp

SKU CH-2G8Q-PB5T6

A 132 W high-pressure short-arc lamp delivering 5150 lumens at 8000 K with a 6000-hour rated life for compatible moving-head fixtures

  • TypeProject Lamp
  • ColorAssorted
  • Delivers 5150 lumens for bright stage output
  • 8000 K colour temperature produces cool white light
  • 132 W at 69 V for efficient high-pressure operation
  • 6000-hour rated life reduces replacement frequency
  • Universal burn position suits any fixture orientation

Stage lamp for moving-head fixtures

The Jaspertronics U-Stage 2R is a high-pressure short-arc discharge lamp rated at 132 W and 69 V. It produces 5150 lm at an 8000 K colour temperature with a 0.8 mm arc gap. The universal burn position allows installation in any orientation required by compatible moving-head units.

Output and service life

The lamp delivers high lumen output for beam and spot effects in concerts, night clubs and stage productions. Average rated life is 6000 hours under normal operating conditions. A working distance of 37.7 mm and compact 46 x 45 mm dimensions fit the optical path of designated 2R fixtures without modification.

Direct replacement for 2R moving heads

This unit replaces Ushio NSL-132 2R lamps in fixtures such as Elation Rayzor Beam 2R, Chauvet Rogue R1 Beam, Martin Rush MH4 and Youming Light Audio 200W Beam. The upgrade is worthwhile when an existing lamp has reached its rated hours or when output has visibly dropped below the 5150 lm specification.

Highlights

  • Delivers 5150 lumens for bright stage output
  • 8000 K colour temperature produces cool white light
  • 132 W at 69 V for efficient high-pressure operation
  • 6000-hour rated life reduces replacement frequency
  • Universal burn position suits any fixture orientation

Specifications

BrandJaspertronics
ModelYouming Light and Audio 200W Beam
Part NumberYouming Light and Audio 200W Beam
TypeProject Lamp
ColorAssorted

Questions about this item

Will the 69 V arc fit the power supply in my existing moving-head fixture?

The lamp runs at 69 V and 132 W with a 0.8 mm arc gap, matching the electrical spec of the original 2R lamps used in fixtures such as the Elation Rayzor Beam 2R and Chauvet Rogue R1 Beam.

How can I confirm the lamp is performing correctly once installed?

Expect a 8000 K white output at 5150 lm from a universal burn position; the rated life is 6000 hours, so consistent brightness and colour over the first few shows indicate proper operation.

Does the box include a reflector or mounting hardware, or must I order them separately?

Only the U-Stage 2R lamp (part code 5002463) measuring 46 × 45 mm with a 37.7 mm working distance is supplied; reflectors, lenses and fixture-specific mounts are not included.
