Jaspertronics U-Stage 2R 132W 69V 5150lm 8000K Arc Lamp
High-pressure arc lamp delivering 5150 lumens at 8000K for compatible moving-head fixtures
- TypeProject Lamp
- ColorAssorted
- High lumen output for bright stage effects with 5150 lm
- High colour temperature creates crisp white light at 8000K
- Efficient 132 W arc lamp runs on 69 V supply
- Universal burn position allows flexible fixture mounting
- 6000 hour rated life reduces replacement frequency

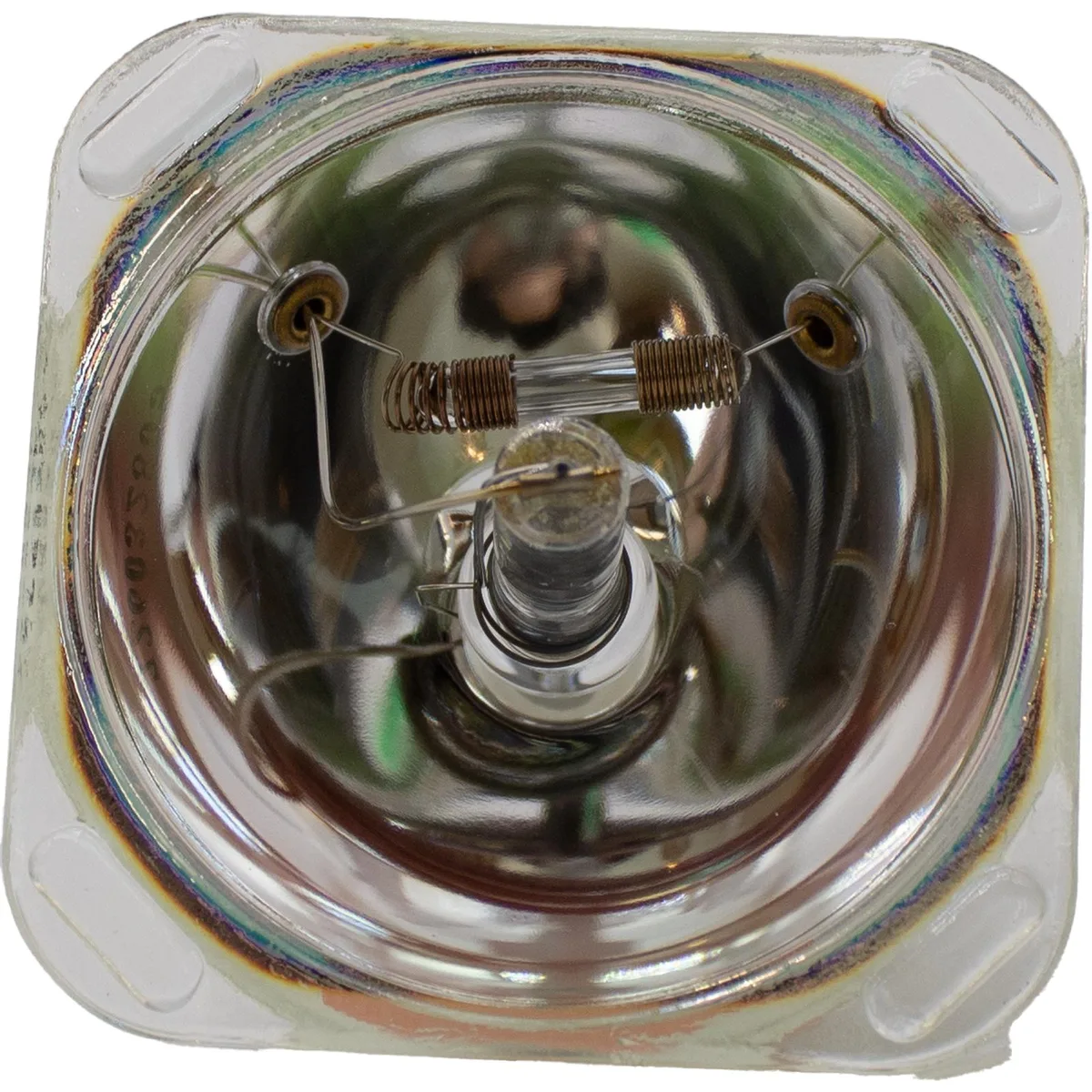

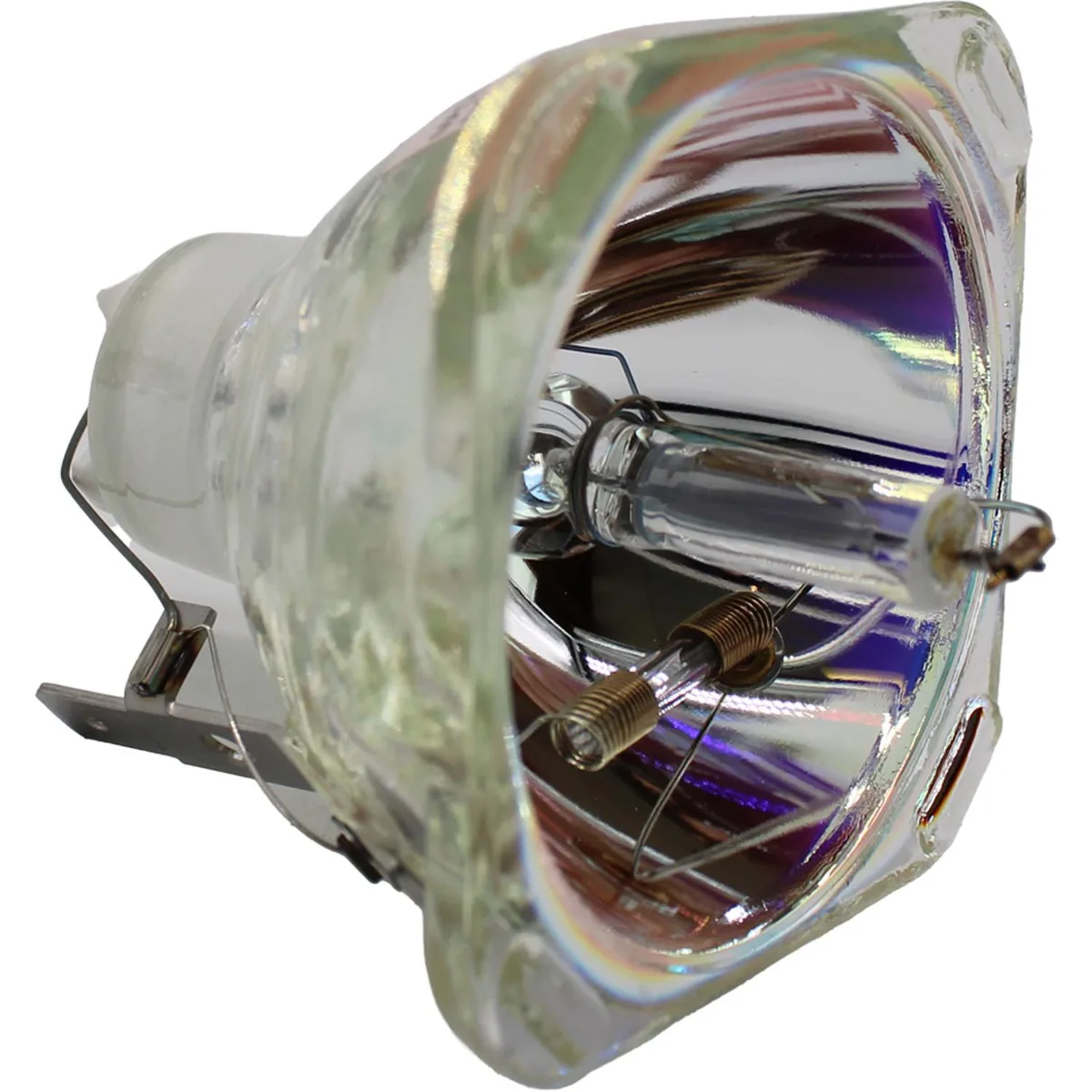

High-Pressure Arc Lamp for Moving-Head Fixtures
The Jaspertronics U-Stage 2R is a 132 W high-pressure short-arc lamp rated at 69 V. It produces 5150 lumens at an 8000 K colour temperature and is built as a direct replacement for the Youming Light and Audio 200 W Spot moving-head fixture.
Universal Burn Position and Compact Arc Gap
A 0.8 mm arc gap and 37.7 mm working distance allow the lamp to operate in any orientation without special mounting hardware. The 46 x 45 mm envelope fits existing reflector housings, freeing technicians from alignment shims or custom brackets during relamping.
Upgrades Older 2R Discharge Lamps in Listed Heads
The lamp replaces earlier 2R discharge burners in fixtures such as the Elation Sniper 2R, Chauvet Rogue R1 Beam and Martin Rush MH4. The 6000-hour rated life extends service intervals, making the change worthwhile when venues need longer runs between lamp swaps.
Highlights
- High lumen output for bright stage effects with 5150 lm
- High colour temperature creates crisp white light at 8000K
- Efficient 132 W arc lamp runs on 69 V supply
- Universal burn position allows flexible fixture mounting
- 6000 hour rated life reduces replacement frequency
Specifications
| Brand | Jaspertronics |
|---|---|
| Model | Youming Light and Audio 200W Spot |
| Part Number | Youming Light and Audio 200W Spot |
| Type | Project Lamp |
| Color | Assorted |
Questions about this item
How long does the lamp maintain output before the rated 6000-hour life ends?
The average rated life is 6000 hours under universal burn position.
What heat or power load should I expect from the 132W arc running continuously?
It draws 132W at 69V with a 0.8 mm arc gap, producing high lumen output in a compact 46 x 45 mm envelope.
Which fixture models are confirmed compatible with this 2R lamp?
Compatible fixtures include Elation Sniper 2R, Martin Rush MH4, ADJ Vizi Beam RXONE, Chauvet Rogue R1 Beam, Robe MiniPointe, and Youming Light Audio 200W Spot.
