Bare 200 W discharge lamp with arc gap 1.1 mm, dimensions 51 x 51 x 61 mm

Jaspertronics

Jaspertronics Triton Blue 5R-Spot-LAMP 200W DLP Replacement Lamp

SKU CH-3RH5-5VG4J

200 W discharge arc lamp delivering 7,200 lumens at 8,000 K for Triton Blue 5R-Spot fixtures

  • TypeProject Lamp
  • Weight0.2000
  • 200 W discharge lamp delivers high-intensity output for stage fixtures
  • 7 200 lumen rating provides bright projection in clubs and theatres
  • 8 000 K colour temperature produces crisp white light for accurate colour rendering
  • 1 mm arc gap enables compact optical design with reliable ignition
  • 3 000 hour average life reduces replacement frequency in heavy-use venues

Compatible Fixture

This replacement lamp is built for the Triton Blue 5R-Spot moving-head fixture. It supplies a 200 watt discharge arc that delivers 7,200 lumens at an 8,000 kelvin colour temperature. The lamp carries a three-month warranty and is rated for 3,000 hours of average life.

Who It Suits

Technicians maintaining a Triton Blue 5R-Spot will find the correct arc gap of 1.1 millimetres and a working distance of 34.5 millimetres. Venues needing a bare bulb for quick changeovers in any burning position are also covered. Buyers who need a lamp with a different wattage or base configuration should look elsewhere.

Deciding Specification

The lamp wattage of 200 watts determines whether this unit matches the fixture's power supply and optical system. Verify that the fixture calls for exactly 200 watts before ordering.

Highlights

  • 200 W discharge lamp delivers high-intensity output for stage fixtures
  • 7 200 lumen rating provides bright projection in clubs and theatres
  • 8 000 K colour temperature produces crisp white light for accurate colour rendering
  • 1 mm arc gap enables compact optical design with reliable ignition
  • 3 000 hour average life reduces replacement frequency in heavy-use venues

Specifications

BrandJaspertronics
ModelTriton Blue 5R-Spot-LAMP
Part NumberTriton Blue 5R-Spot-LAMP
TypeProject Lamp
Weight0.2000

Questions about this item

Does the box contain only the bare 200 W arc lamp or are any mounting parts included?

The package supplies the bare YODN 200 W 5R discharge lamp with a 1.1 mm arc gap and 51 × 51 × 61 mm envelope; no brackets, cables or reflectors are included.

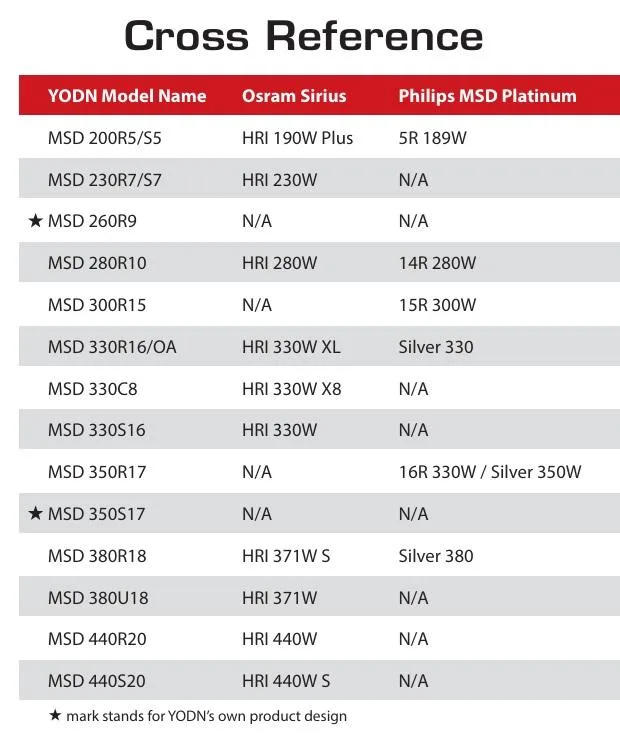

Should I choose the MSD200R5 or the MSD200S5 version for my Triton Blue 5R-Spot?

Both part codes refer to the same 200 W 5R beam lamp rated at 7 200 lm, 8 000 K and 3 000 h average life, so either code fits the fixture.

What does the 7 200 lumen rating mean once the lamp is installed in the moving head?

It delivers 7 200 lm at 8 000 K with a CRI of 70 from a 75 V, 200 W arc, providing high-intensity output for stage, club or worship venues.
