Bare 200 W discharge lamp, 51 by 51 by 61 mm, 0.2 kg

Jaspertronics

Jaspertronics Terbly PT160B-LAMP 200W DLP Replacement Lamp

SKU CH-JFT6-JC576

A 200 W arc discharge lamp delivering 7 200 lumens at 8 000 K for the Terbly PT160B moving-head fixture

  • TypeProject Lamp
  • Weight0.2000
  • 200 W discharge arc delivers 7,200 lumens for bright stage projection
  • 8,000 K colour temperature produces crisp white light ideal for theatre and clubs
  • 1 mm arc gap and compact 51 × 51 × 61 mm body fit the Terbly PT160B fixture
  • Rated 3,000 hours average life reduces replacement frequency in heavy-use venues
  • Operates in any burning position for flexible moving-head mounting

Compatible Fixture & Purpose

The Jaspertronics Terbly PT160B-LAMP is a 200W discharge lamp built for the Terbly PT160B moving-head fixture. It serves venues such as houses of worship, clubs, concerts, and theatres that need a reliable arc source with high intensity output.

Capacity & Headroom

The lamp delivers 7,200 lumens at an 8,000K colour temperature with a CRI of 70. Its 1.1mm arc gap and 75V operating voltage support the rated 3,000-hour average life, after which output will fall below usable levels for professional shows.

Upgrade Context

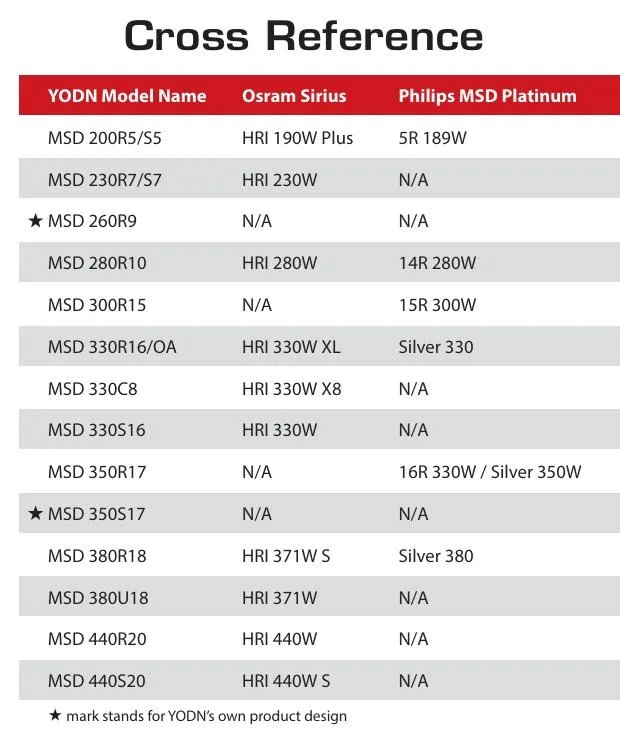

This unit replaces a spent MSD200R5 or MSD200S5 beam lamp in the same fixture. The jump is worth it when the existing lamp reaches end of life or when a spare is needed to avoid downtime during multi-day productions.

Highlights

  • 200 W discharge arc delivers 7,200 lumens for bright stage projection
  • 8,000 K colour temperature produces crisp white light ideal for theatre and clubs
  • 1 mm arc gap and compact 51 × 51 × 61 mm body fit the Terbly PT160B fixture
  • Rated 3,000 hours average life reduces replacement frequency in heavy-use venues
  • Operates in any burning position for flexible moving-head mounting

Specifications

BrandJaspertronics
ModelTerbly PT160B-LAMP
Part NumberTerbly PT160B-LAMP
TypeProject Lamp
Weight0.2000

Questions about this item

Will the 200 W 5R lamp fit the Terbly PT160B fixture I already own?

Yes, the lamp is built for the Terbly PT160B and matches the 200 W 5R specification used by that fixture.

How can I verify the lamp is operating correctly once installed?

The lamp should strike at 75 V with a 1.1 mm arc gap and deliver 7,200 lumens at 8,000 K colour temperature.

Does the box include a housing or only the bare bulb?

The package contains the bare YODN 200 W 5R discharge lamp; any reflector housing or mounting hardware must be sourced separately.
