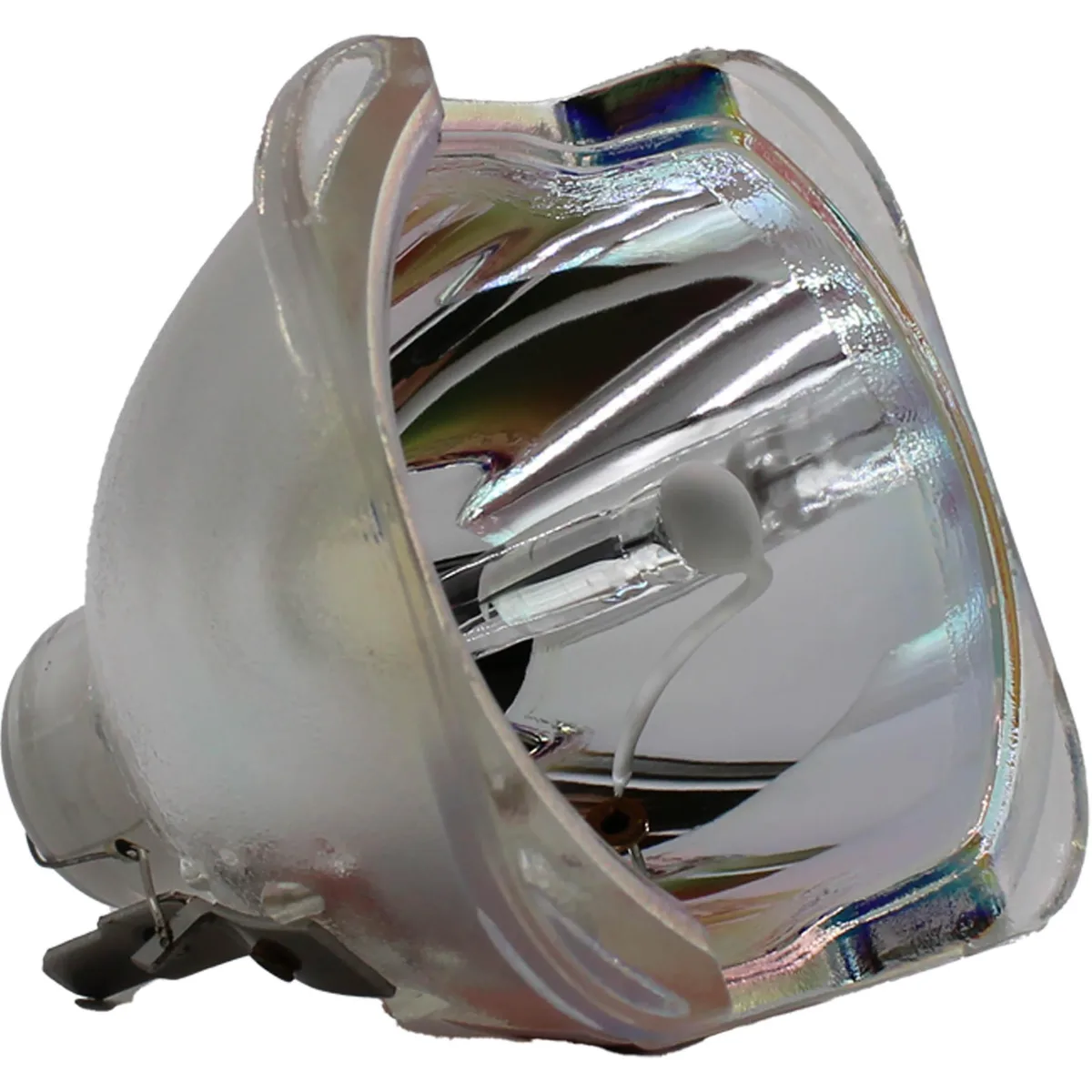

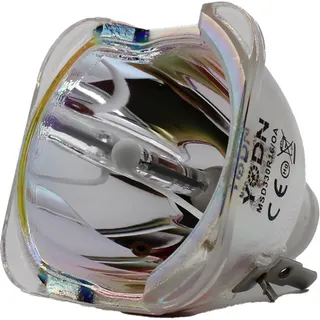

A compact bare discharge lamp with a silver metal base and clear glass arc tube, roughly 56 by 56 by 63 millimetres

Jaspertronics

Jaspertronics Showtec Infinity iB-16R-LAMP 330W dlp replacement lamp

SKU CH-R4GP-49TAK

A 330 W discharge lamp for the Showtec Infinity iB-16R moving head, delivering 13,000 lumens at 7,800 K with a 1.3 mm arc gap and 1,500-hour rated life

  • TypeProject Lamp
  • Weight0.2000
  • 330 W discharge lamp powers bright moving-head beams
  • 13,000 lm output with 7,800 K colour temperature
  • 3 mm arc gap enables compact optical design
  • 1,500-hour rated life for extended show runs
  • Compatible with Showtec Infinity iB-16R and other 330 W fixtures

Compatible Fixtures

This 330W discharge lamp fits the Showtec Infinity iB-16R and a wide range of moving-head fixtures from Chauvet, DTS, GTD, Lightsky, PR Lighting and others. It is built for venues such as houses of worship, clubs, concerts, stages and theatres where reliable high-output projection is required.

Build Integration

The bare-bulb design measures 56 x 56 x 63 mm with a 36 mm working distance and a 1.3 mm arc gap, allowing direct installation in compatible fixtures without additional housings. Operating at 65 V with an any-position burning angle, it frees the lighting designer from orientation constraints during rigging.

Performance Gains

Rated at 13,000 lumens and 7,800 K colour temperature with a CRI of 75, the lamp delivers intense cool-white output for beam and spot applications. Average life is 1,500 hours, supported by a three-month warranty, reducing relamp frequency in demanding production schedules.

Highlights

  • 330 W discharge lamp powers bright moving-head beams
  • 13,000 lm output with 7,800 K colour temperature
  • 3 mm arc gap enables compact optical design
  • 1,500-hour rated life for extended show runs
  • Compatible with Showtec Infinity iB-16R and other 330 W fixtures

Specifications

BrandJaspertronics
ModelShowtec Infinity iB-16R-LAMP
Part NumberShowtec Infinity iB-16R-LAMP
TypeProject Lamp
Weight0.2000

Questions about this item

How many hours of continuous operation before the 330 W discharge lamp reaches its rated 1 500 h average life?

The lamp is rated for an average life of 1 500 hours at 330 W output.

What is the lamp power draw and arc temperature during all-day operation?

It draws 330 W at 65 V with a 7 800 K colour temperature and 1.3 mm arc gap.

Which fixture or housing must I already own to install this bare MSD330R16/OA bulb?

It fits the Showtec Infinity iB-16R and the listed Chauvet, DTS, GTD, Lightsky and PR Lighting moving-head models.
