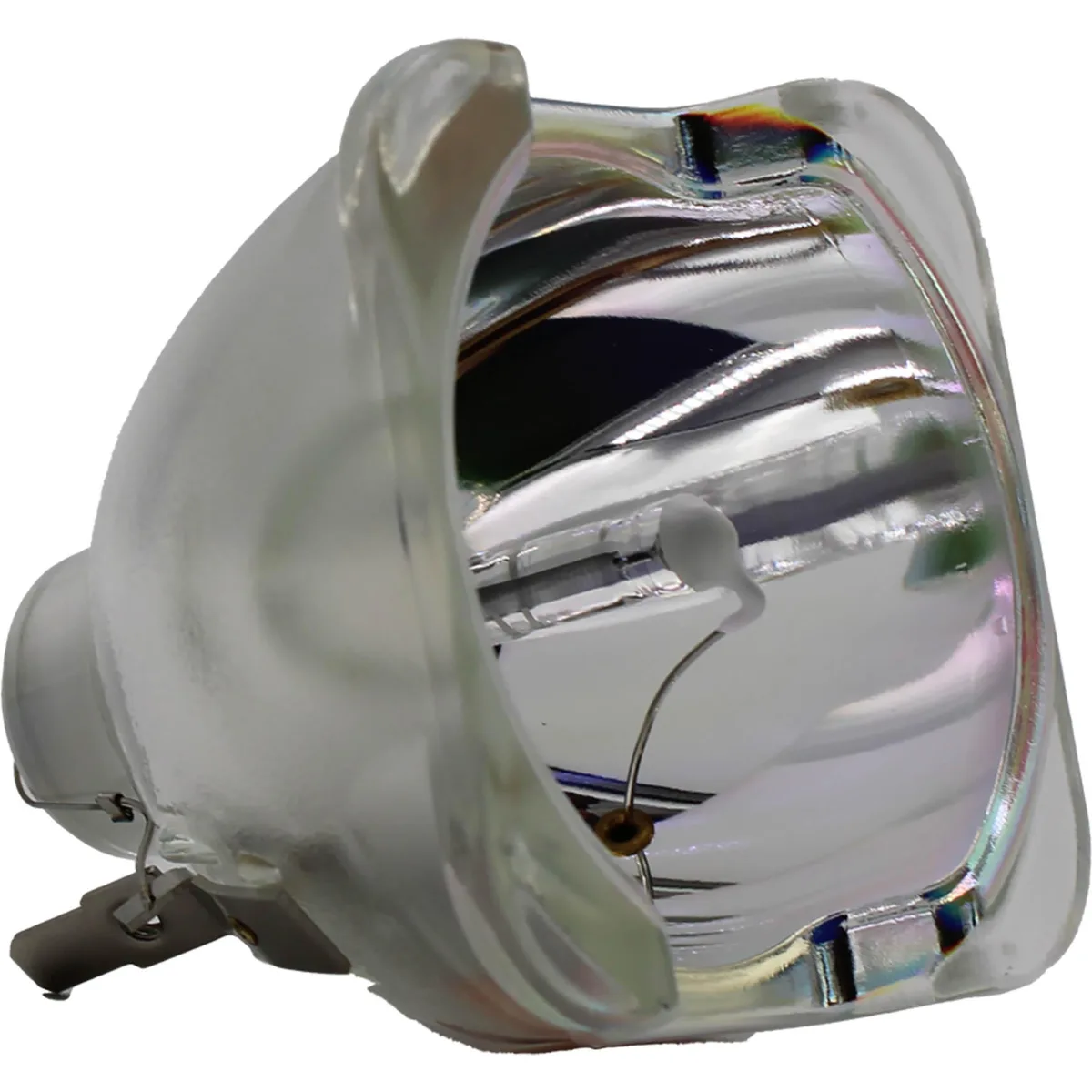

Compact bare discharge lamp, 58 by 58 by 66 mm, 1.3 mm arc gap

Jaspertronics

Jaspertronics MSD350R17 350W 17R dlp replacement lamp

SKU CH-JHCR-83T61

350 W short-arc discharge lamp with 1.3 mm gap and 15,000 lumen output fits Elation Platinum, Philips Vari-Lite Hydrus and compatible moving-head fixtures

  • TypeProject Lamp
  • Weight0.2000
  • 350 W discharge arc delivers 15 000 lm output
  • Compact 58 x 58 x 66 mm size fits tight fixtures
  • 3 mm arc gap enables high intensity beam
  • Compatible with Elation Platinum and Vari-Lite Hydrus heads
  • New bare bulb weighs only 0.2000 kg

Compatible fixtures

The MSD350R17 replaces the original discharge lamp in moving-head units from Blizzard Lighting, Elation, Fine Art, Microh, Pearl River, Philips Vari-Lite, PR Lighting, Showline, Terbly, Triton Blue and VariLite. It fits beam, spot, wash and hybrid models including the Kryo Mix CYM, Platinum BX, Platinum SBX series, Fine 350BSW, ULTRA TRINITY IP350, PR XR 350 BWS, Hydrus 350, G10, G10B and Mega Beam fixtures.

Arc-gap constraint

A 1.3 mm arc gap fixes the optical focus point, so the lamp only works in fixtures designed for that precise geometry. The 350 W power draw and 15,000 lumen output demand a matching ballast and thermal design; using the lamp in an incompatible housing will cause misalignment or premature failure.

Bare-bulb handling

Supplied as a bare bulb weighing 0.2000 kg with 58 x 58 x 66 mm dimensions, the lamp requires careful installation without touching the quartz envelope. The compact form factor allows direct retrofit in tight fixture heads, but oils from skin can create hot spots that shorten the 350 W discharge source’s service life.

Highlights

  • 350 W discharge arc delivers 15 000 lm output
  • Compact 58 x 58 x 66 mm size fits tight fixtures
  • 3 mm arc gap enables high intensity beam
  • Compatible with Elation Platinum and Vari-Lite Hydrus heads
  • New bare bulb weighs only 0.2000 kg

Specifications

BrandJaspertronics
ModelMSD350R17
Part NumberMSD350R17
TypeProject Lamp
Weight0.2000

Questions about this item

Which lamp model fits my Elation Platinum SBX Beam?

The MSD350R17 is listed for the Elation Platinum SBX Beam and other fixtures such as Blizzard Lighting Kryo Mix CYM and VariLite Showline Hydrus 350.

What does the 350 W rating mean for my moving head?

The lamp draws 350 W and produces 15,000 lumens with a 1.3 mm arc gap for high intensity output.

How does the bare-bulb design affect installation?

The bare bulb measures 58 x 58 x 66 mm and weighs 0.2000 kg; it installs directly into compatible moving head fixtures without a housing.
