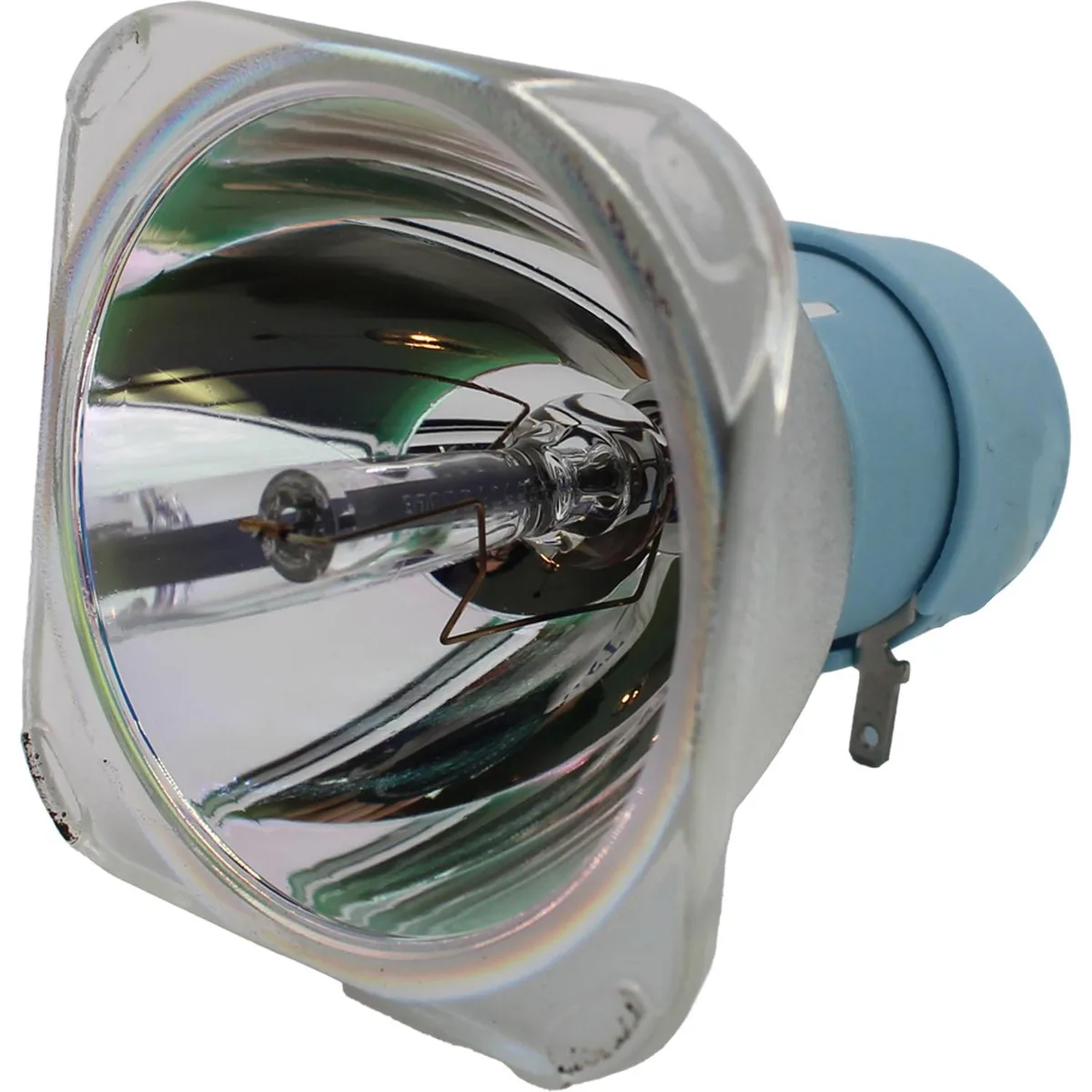

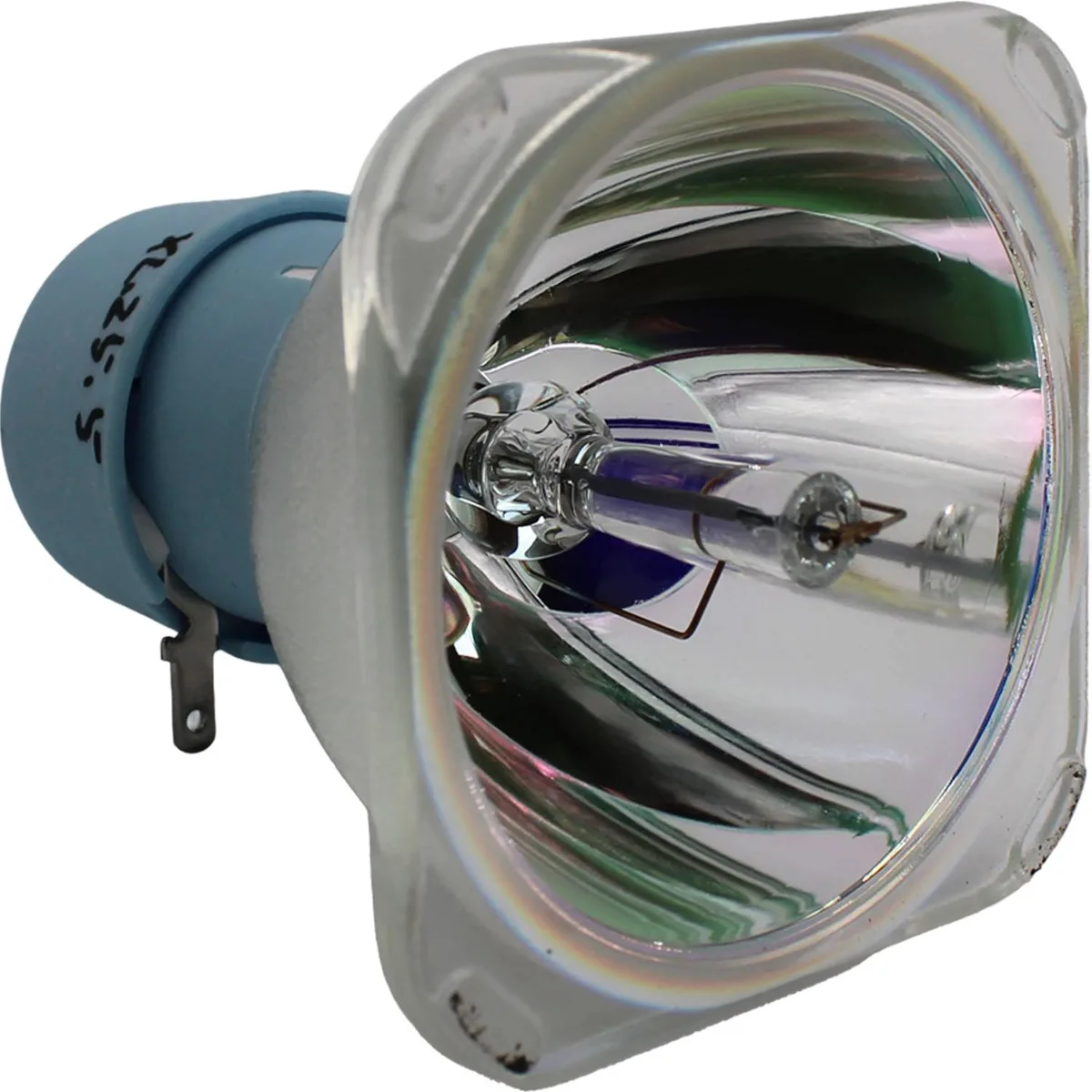

Compact high-intensity discharge lamp, metal halide, single-ended, clear quartz envelope, ceramic base with two pins

Jaspertronics

Jaspertronics MSD Platinum 5R Lamp 189W for Clay Paky Sharpy

SKU CH-1R14-XSEVR

189 W high-intensity discharge lamp fits Clay Paky Sharpy and compatible moving heads

  • TypeHigh Intensity Discharge Bulbs
  • ColorAssorted
  • 189 W discharge lamp delivers 7950 initial lumens for bright output
  • 8000 K colour temperature produces cool white light suited to stage use
  • 3000-hour rated life reduces replacement frequency in moving-head fixtures
  • Universal burning position allows installation in any orientation
  • Compatible with Clay Paky Sharpy and over twenty other 5R moving-head models

MSD Platinum 5R Replacement Lamp

The Jaspertronics MSD Platinum 5R is a 189 watt high-intensity discharge bulb designed as a direct replacement for the Clay Paky Sharpy moving head and a wide range of compatible 5R fixtures. It uses metal halide technology with a 1 mm arc gap to produce a concentrated beam for professional stage and event lighting.

Fixture Compatibility and Electrical Check

Confirm that your fixture is listed among the supported models such as Clay Paky Sharpy, American DJ Vizi Beam 5R, Elation Platinum Spot 5R or the Terbly PT series. Verify the unit accepts a single-ended lamp with a 57.1 mm overall length, 51.4 mm diameter and a 34.5 mm working distance, and that the power supply can deliver 150 to 189 watts.

Suited for 5R Moving Heads, Not for General Lighting

This lamp suits lighting technicians and rental houses maintaining 5R beam, spot or hybrid moving heads that require 7,950 initial lumens at 8,000 K with a 75 CRI and a rated 3,000 hour life. It is not intended for continuous architectural lighting, residential use or fixtures that demand a different wattage, base type or colour temperature.

Highlights

  • 189 W discharge lamp delivers 7950 initial lumens for bright output
  • 8000 K colour temperature produces cool white light suited to stage use
  • 3000-hour rated life reduces replacement frequency in moving-head fixtures
  • Universal burning position allows installation in any orientation
  • Compatible with Clay Paky Sharpy and over twenty other 5R moving-head models

Specifications

BrandJaspertronics
ModelCLAY PAKY SHARPY-LAMP
Part NumberCLAY PAKY SHARPY-LAMP
TypeHigh Intensity Discharge Bulbs
ColorAssorted

Questions about this item

Does the MSD Platinum 5R lamp ship with any extra hardware or do I need to buy a socket separately?

The lamp is a single-ended HID bulb with a 34.5 mm working distance and 51.4 mm diameter; it fits the fixture's existing socket so no extra hardware is required.

The specs list a wattage range of 150W-189W — which figure applies to this lamp?

This replacement lamp is rated at 189 watts, matching the Clay Paky Sharpy's original specification.

What does the 7,950 lumen rating mean for actual stage brightness?

At 8000 K colour temperature and 75 CRI the lamp delivers 7,950 initial lumens with a 1 mm arc for tight beam focus in compatible moving heads.
