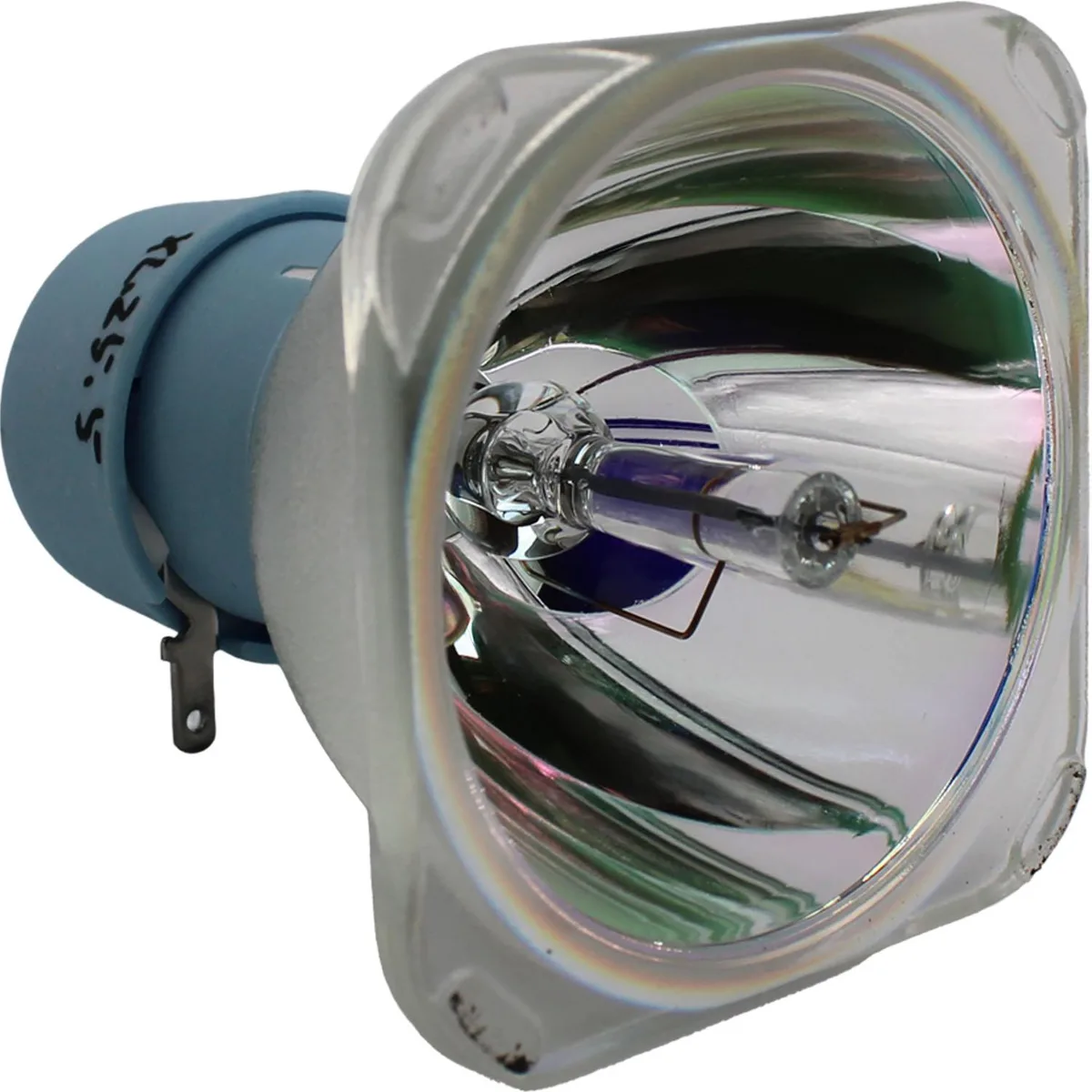

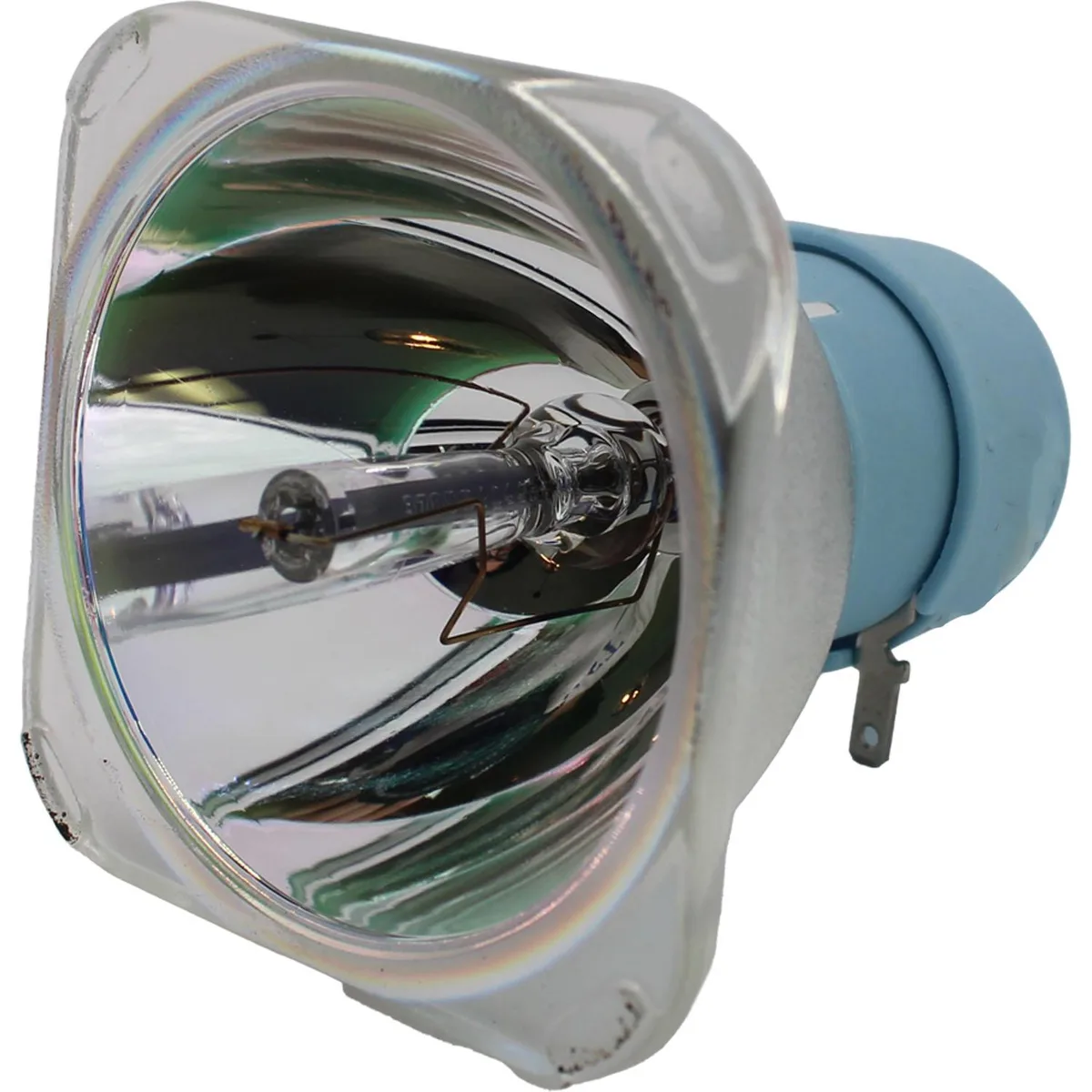

Compact metal-halide discharge lamp with ceramic arc tube and single-ended base

Jaspertronics

Jaspertronics MSD Platinum 5R Lamp 189W 8000K 3000h

SKU CH-ZGGR-1GETR

High-intensity discharge metal halide lamp delivers 7,950 lumens at 8000 K for compatible moving-head fixtures

  • TypeHigh Intensity Discharge Bulbs
  • ColorAssorted
  • 189 w HID lamp powers professional moving heads
  • 8000 K colour temperature delivers crisp white output
  • 7 950 initial lumens provide high-intensity projection
  • 3 000 hour rated life reduces replacement frequency
  • Universal burning position allows flexible fixture mounting

Compatible Moving-Head Fixtures

This 189 W MSD Platinum 5R lamp fits the Triton Blue 5R-Beam-Pro and a wide range of professional moving-head units including models from American DJ, Clay Paky, Elation, Futurelight, Jolly, PR Lighting and Terbly. It is intended for venues, rental houses and lighting designers who need a direct replacement for the original discharge source in these fixtures.

Physical And Electrical Fit Check

Verify that your fixture accepts a single-ended metal-halide lamp with a 57.1 mm overall length, 51.4 mm diameter and a 34.5 mm working distance. The lamp operates at 150–189 W with an 8000 K colour temperature and a universal burning position, so the housing must accommodate the 350 °C pinch temperature and 1 mm arc length.

Upgrade From Worn 5R Discharge Lamps

Replacing an aged 5R lamp restores the rated 7 950 initial lumens and 75 CRI output that drops off after the 3 000-hour rated life. The jump is worth it when output has faded, colour has shifted or the arc has become unstable, ensuring the fixture meets its original photometric specification for beam or spot applications.

Highlights

  • 189 w HID lamp powers professional moving heads
  • 8000 K colour temperature delivers crisp white output
  • 7 950 initial lumens provide high-intensity projection
  • 3 000 hour rated life reduces replacement frequency
  • Universal burning position allows flexible fixture mounting

Specifications

BrandJaspertronics
ModelTRITON BLUE 5R-BEAM-PRO-LAMP
Part NumberTRITON BLUE 5R-BEAM-PRO-LAMP
TypeHigh Intensity Discharge Bulbs
ColorAssorted

Questions about this item

What is included with the Jaspertronics MSD Platinum 5R Lamp and do I need any extra parts?

The box contains the single-ended 189W metal-halide lamp with a 1mm arc and 34.5mm working distance. No additional components are required for installation in compatible fixtures.

Which version of the 5R lamp should I choose for my TRITON BLUE 5R-BEAM-PRO?

This MSD Platinum 5R Lamp (part number TRITON BLUE 5R-BEAM-PRO-LAMP) is the direct replacement specified for the TRITON BLUE 5R-BEAM-PRO and the listed compatible models.

What does the 7950 initial lumens rating mean when the lamp is running in a moving-head fixture?

At 8000K colour temperature and 75 CRI, the lamp delivers 7950 lumens at start-up, providing high-output projection for beam and spot effects over its 3000-hour rated life.
