Jaspertronics
Jaspertronics MSD Platinum 5R 189W HID Lamp for PR Lighting XR 200 BEAM
189 W metal-halide HID lamp with 7 950 lumens, 8 000 K colour temperature, 3 000-hour life and universal burn position for compatible moving-head fixtures
- TypeHigh Intensity Discharge Bulbs
- ColorAssorted
- Bright 7,950 lumen output for powerful beam projection
- 8,000 K colour temperature delivers crisp white light
- Universal burning position allows flexible fixture mounting
- 3,000 hour rated life reduces replacement frequency
- Compatible with Clay Paky Sharpy, Elation Platinum and 20+ other moving heads

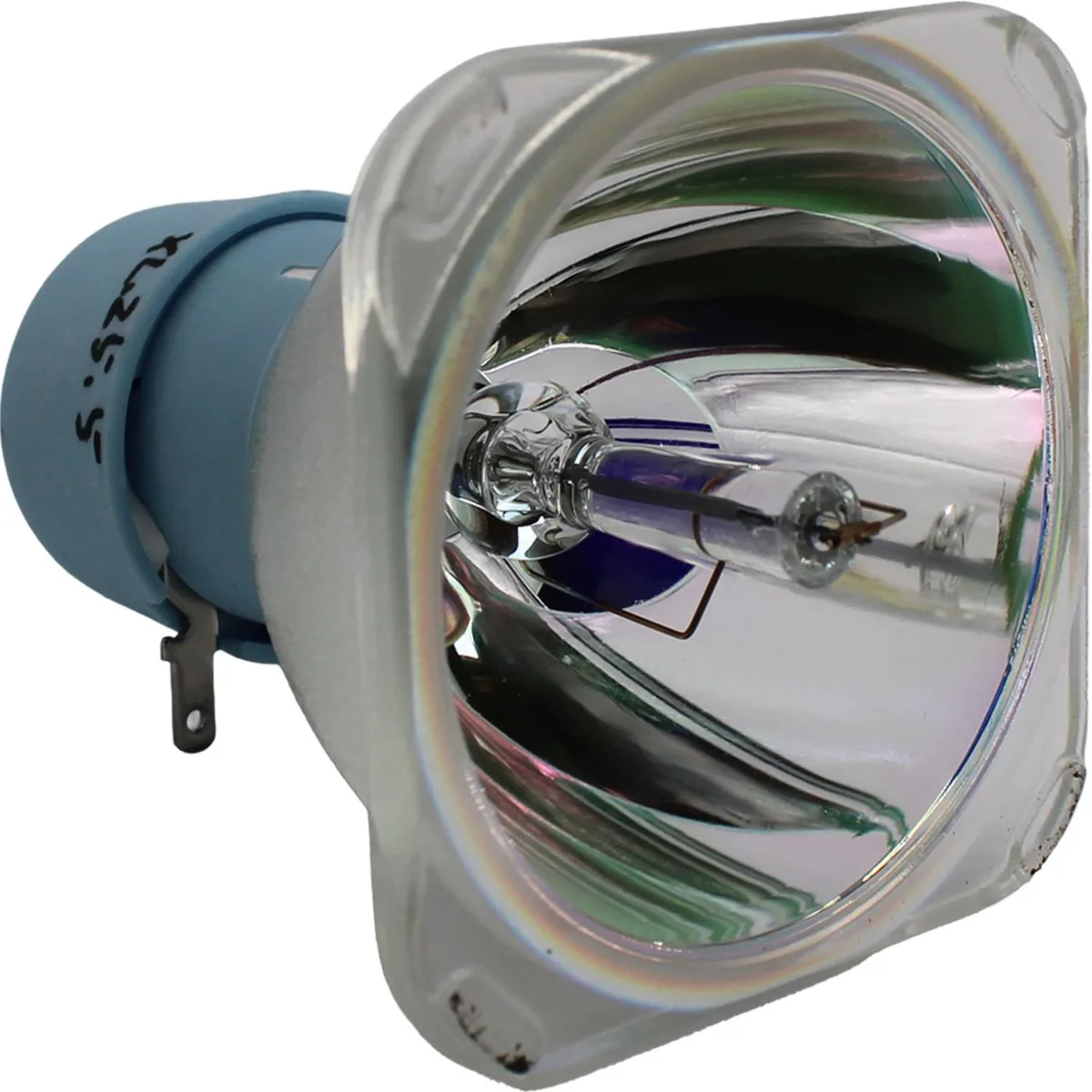

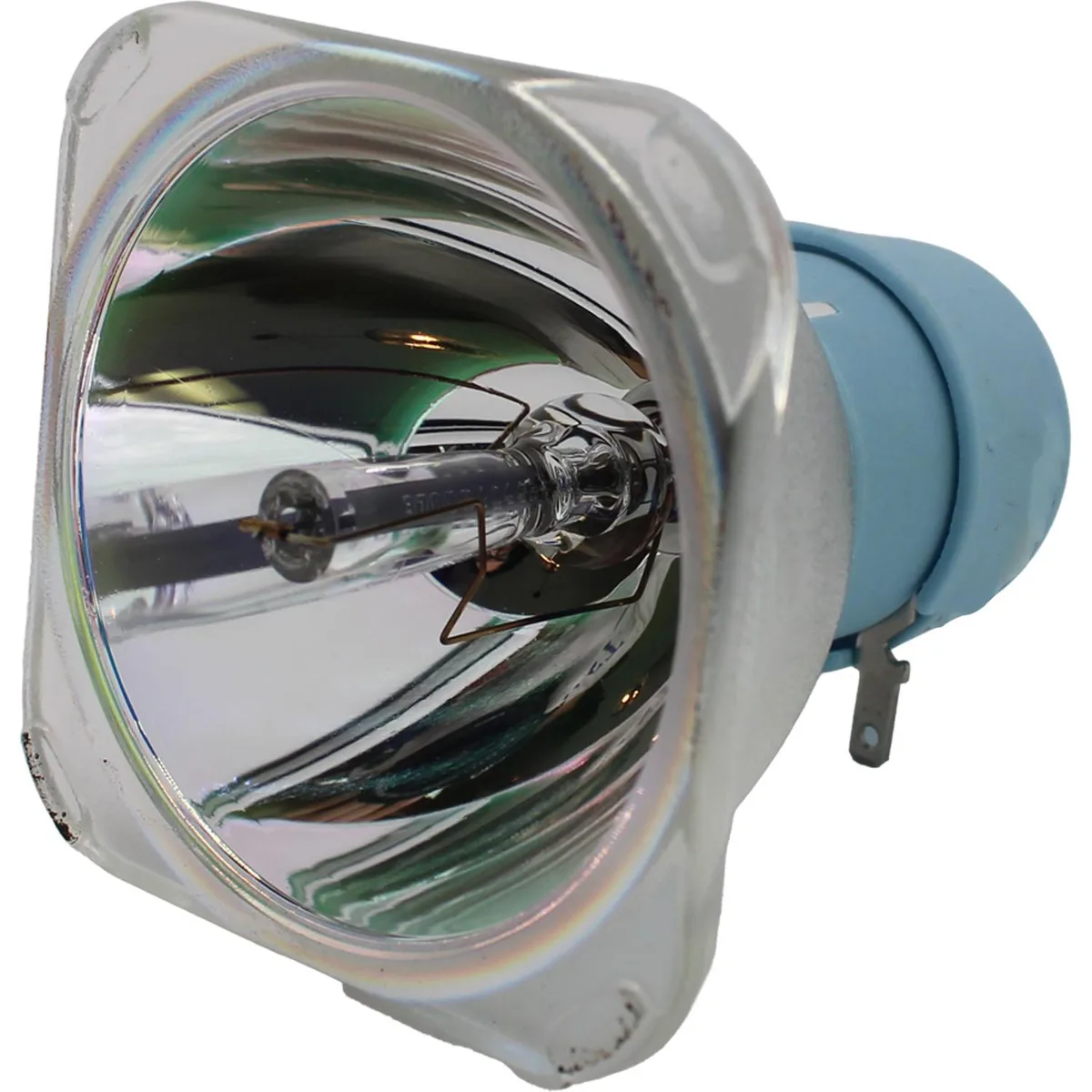

MSD Platinum 5R 189W HID Lamp
The Jaspertronics MSD Platinum 5R is a 189 watt high-intensity discharge lamp built for moving-head fixtures such as the PR Lighting XR 200 BEAM and a wide range of compatible beam, spot and hybrid units from brands including Clay Paky, Elation, American DJ and Futurelight. It serves venues, rental houses and lighting designers who need a direct replacement that matches the original arc specifications.
7950 lumens at 8000 K with 75 CRI
The lamp delivers 7,950 initial lumens at a correlated colour temperature of 8000 K and a CRI of 75, providing the cool-white output and punch required for tight beam effects in medium-to-large venues. Rated life is 3000 hours at the 189 watt operating point; the 1 mm arc gap and 34.5 mm working distance keep the focal point consistent with the fixture optics. Universal burning position and a 350 °C pinch temperature limit give installation flexibility, but output will gradually decline as the 3000-hour mark approaches.
Replaces 150-189W metal-halide lamps in 5R fixtures
This lamp replaces existing 150–189 watt single-ended metal-halide lamps in any 5R-class moving head that accepts a 57.1 mm overall length, 51.4 mm diameter bulb with a 34.5 mm working distance. The upgrade is worthwhile when the current lamp has reached its rated hours, shows colour shift or reduced output, or when a fixture is being relamped for a new production cycle requiring reliable 8000 K output. Fixtures outside the listed compatibility list or those requiring a different arc length, base type or wattage range are not supported.
Highlights
- Bright 7,950 lumen output for powerful beam projection
- 8,000 K colour temperature delivers crisp white light
- Universal burning position allows flexible fixture mounting
- 3,000 hour rated life reduces replacement frequency
- Compatible with Clay Paky Sharpy, Elation Platinum and 20+ other moving heads
Specifications
| Brand | Jaspertronics |
|---|---|
| Model | PR LIGHTING XR 200 BEAM-LAMP |
| Part Number | PR LIGHTING XR 200 BEAM-LAMP |
| Type | High Intensity Discharge Bulbs |
| Color | Assorted |
Questions about this item
Will the 189 W MSD Platinum 5R lamp run in my older PR Lighting XR 200 BEAM fixture?
Yes. The lamp is listed as compatible with the PR Lighting XR 200 BEAM and XR 200 BEAM II, plus a wide range of other 5R moving-head fixtures.
How can I confirm the lamp is operating correctly after installation?
The fixture should strike instantly, show a stable 8000 K white output at roughly 7 950 initial lumens, and the lamp-hour counter will begin tracking toward the 3 000-hour rated life.
What comes in the box and is any extra hardware needed?
The box contains the single-ended HID lamp only; no reflector, cables or mounting hardware are included, and none are required for a direct swap in a compatible fixture.
