Compact bare discharge lamp with squared ceramic base and central arc tube

Jaspertronics

Jaspertronics Mega Lite XR 200 Beam-LAMP 200W 5R DLP Replacement Lamp

SKU CH-GBS3-3V68M

200 W short-arc discharge lamp delivering 7,200 lm at 8,000 K for Mega Lite XR 200 Beam fixtures

  • TypeProject Lamp
  • Weight0.2000
  • 200 W discharge arc delivers 7,200 lm output
  • 8,000 K colour temperature suits stage and worship venues
  • 3,000-hour rated life reduces replacement frequency
  • Compact 51 × 51 × 61 mm form fits Mega Lite XR 200 Beam
  • Any burning position allows flexible fixture mounting

Jaspertronics Mega Lite XR 200 Beam Lamp

This replacement discharge lamp is built for the Mega Lite XR 200 Beam moving-head fixture. It suits venues such as houses of worship, clubs, concerts, stage and theatre that need a direct-fit 200 W source. The bare-bulb design matches the original YODN 5R specification for compatible units.

Arc discharge limits and output

The lamp runs at 200 W with a 1.1 mm arc gap and 75 V operating voltage. It produces 7,200 lumens at an 8,000 K colour temperature with a CRI of 70. Average life is rated at 3,000 hours and the burning position is unrestricted. Buyers who need a higher lumen package or a different colour point cannot use this model.

Installation notes and common issues

The compact envelope measures 51 x 51 x 61 mm with a 34.5 mm working distance and weighs 0.2 kg. Handle the bare bulb with clean gloves to avoid contaminating the quartz. Verify the fixture’s ballast and ignition circuit match the 75 V / 200 W rating before fitting. Misaligned seating or incorrect voltage will cause premature failure.

Highlights

  • 200 W discharge arc delivers 7,200 lm output
  • 8,000 K colour temperature suits stage and worship venues
  • 3,000-hour rated life reduces replacement frequency
  • Compact 51 × 51 × 61 mm form fits Mega Lite XR 200 Beam
  • Any burning position allows flexible fixture mounting

Specifications

BrandJaspertronics
ModelMega Lite XR 200 Beam-LAMP
Part NumberMega Lite XR 200 Beam-LAMP
TypeProject Lamp
Weight0.2000

Questions about this item

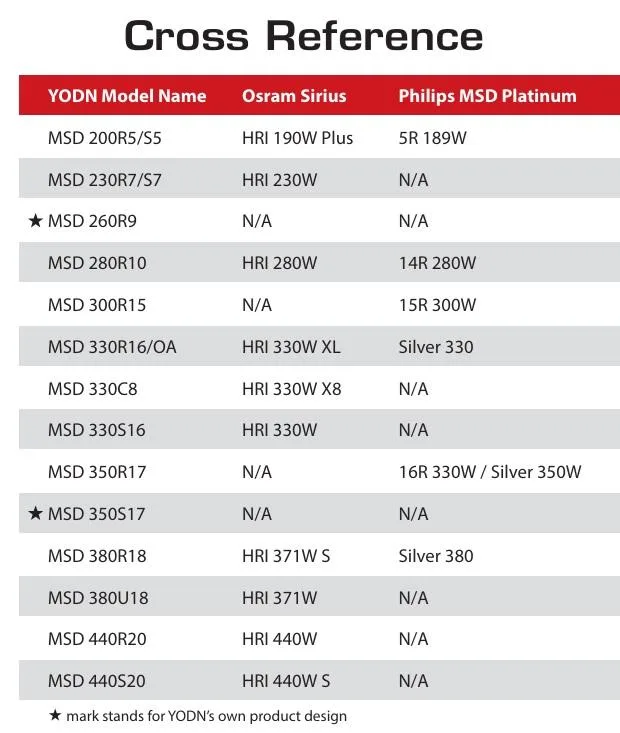

Which version of the Mega Lite XR 200 Beam-LAMP matches the MSD200R5 or MSD200S5 product code?

The lamp carries both product codes MSD200R5 and MSD200S5, so either code identifies the same 200 W 5R discharge bulb for the Mega Lite XR 200 Beam fixture.

What does the 7,200 lumen rating deliver when the lamp is installed in a moving-head fixture?

At 7,200 lumens and 8,000 K colour temperature the lamp produces a high-intensity beam suitable for houses of worship, clubs, concerts and theatre stages.

How does the 1.1 mm arc gap and 75 V lamp voltage affect power supply compatibility?

The 1.1 mm arc gap and 75 V operating voltage are matched to the fixture’s ballast, allowing the 200 W discharge lamp to strike and run steadily in any burning position.
