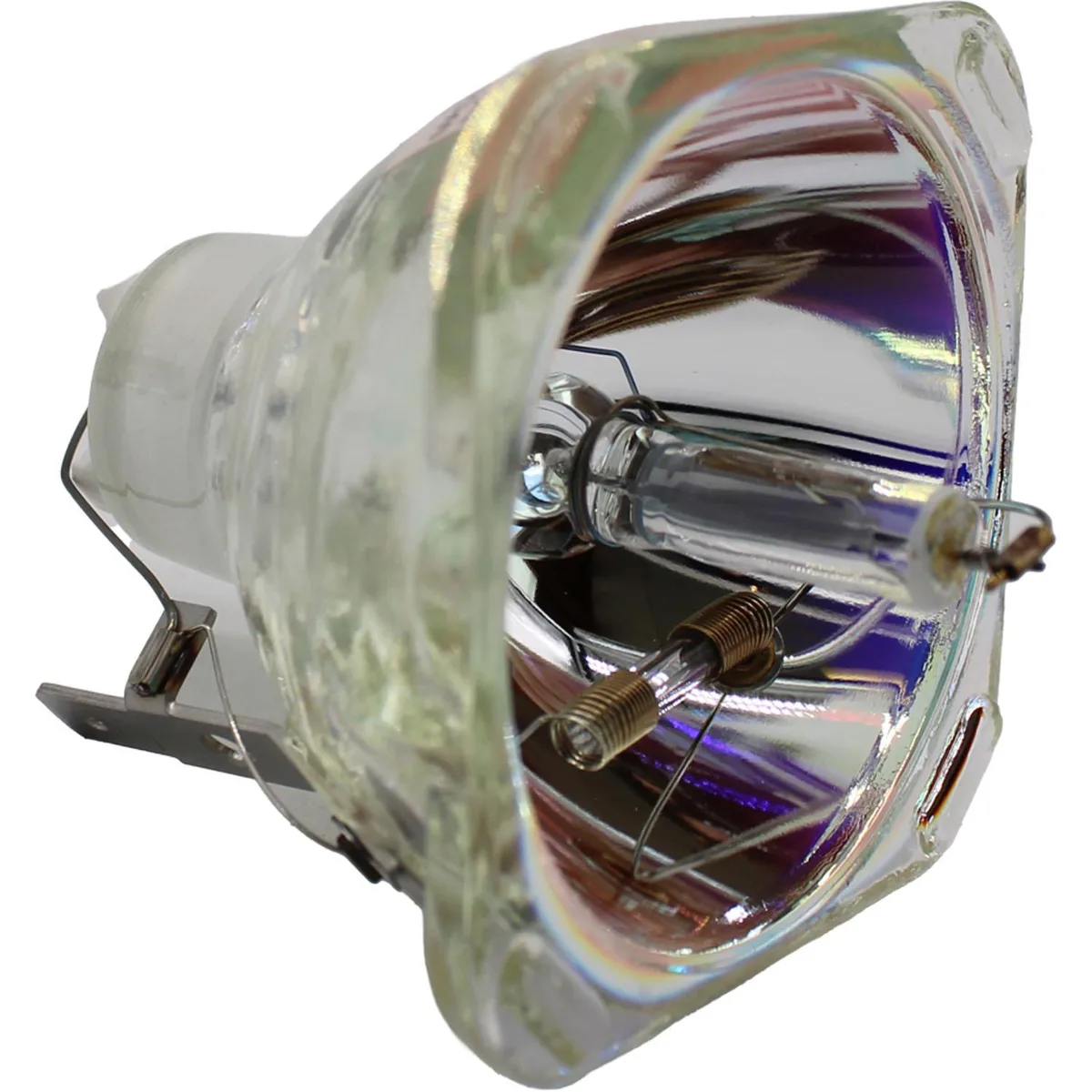

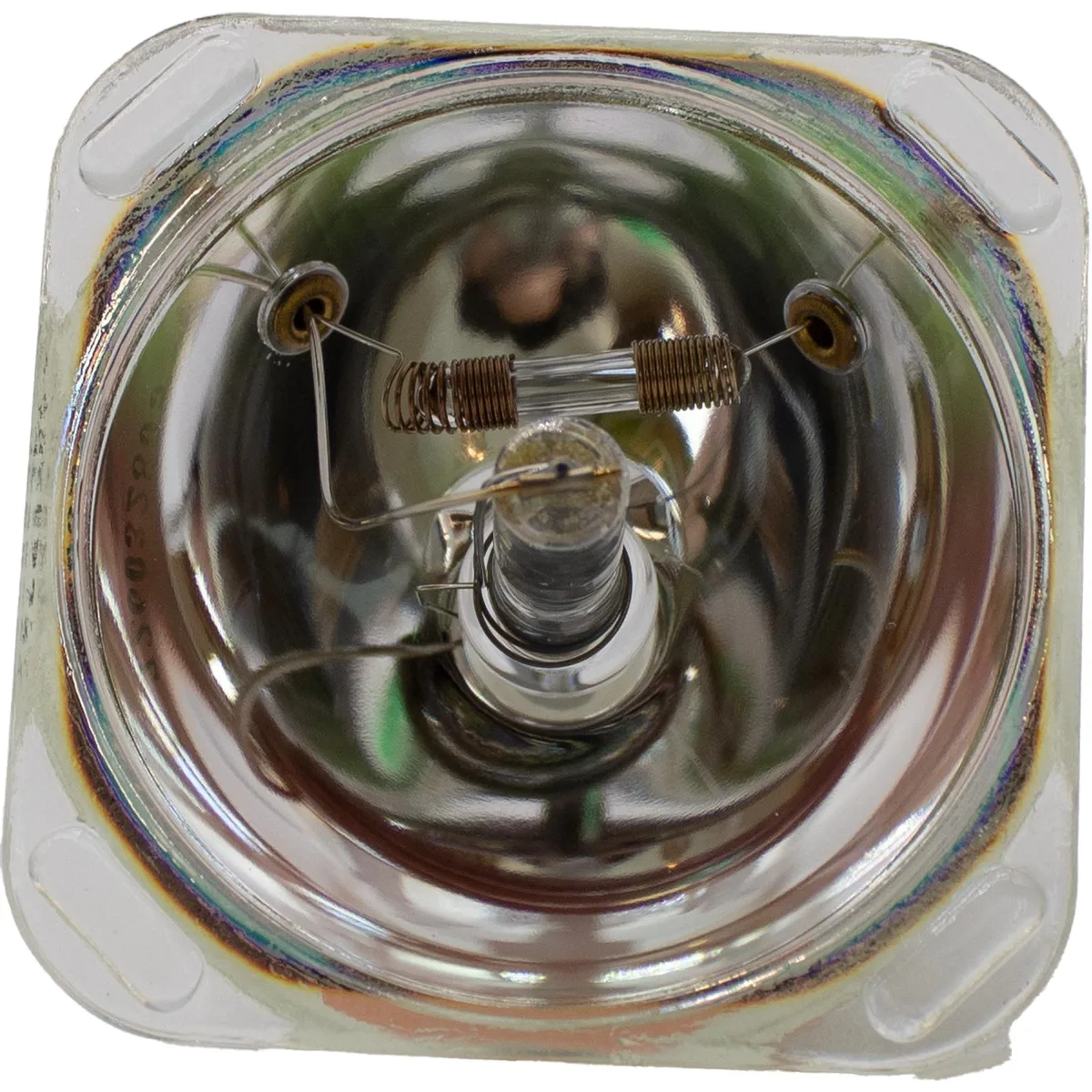

Compact high-pressure short arc stage lamp with clear quartz envelope and metal base

Jaspertronics

Jaspertronics Mega Lite Axis Beam 2R 132W 69V 5150lm 8000K

SKU CH-EDMP-41EPB

A 132 W high-pressure short arc lamp delivering 5150 lm at 8000 K for moving-head stage fixtures

  • TypeProject Lamp
  • ColorAssorted
  • High lumen output with 5150 lm brightness
  • High color temperature of 8000K for crisp white light
  • Long 6000 h rated life reduces replacements
  • Universal burn position allows flexible fixture mounting
  • Compatible with multiple moving head fixtures

Jaspertronics Mega Lite Axis Beam 2R Lamp

The Jaspertronics Mega Lite Axis Beam 2R is a high-pressure short arc discharge lamp rated at 132 watts and 69 volts. It produces 5150 lumens at an 8000K colour temperature with an average rated life of 6000 hours. This lamp suits stage, concert and nightclub moving-head fixtures requiring a 2R form factor.

Universal burn position and 0.8 mm arc gap

The lamp operates in any orientation thanks to its universal burn position. A 0.8 mm arc gap and 37.7 mm working distance concentrate output for tight beam optics. High lumen output and 8000K colour temperature support intense projection in moving lights and beam effects.

Direct replacement for listed 2R fixtures

Installation consists of seating the 46 by 45 mm lamp into compatible moving heads such as the Mega Lite Axis Beam 2R and other listed models. Ensure power is off and allow cooling before handling. Misalignment of the arc gap or contamination of the quartz envelope can reduce output or cause premature failure.

Highlights

  • High lumen output with 5150 lm brightness
  • High color temperature of 8000K for crisp white light
  • Long 6000 h rated life reduces replacements
  • Universal burn position allows flexible fixture mounting
  • Compatible with multiple moving head fixtures

Specifications

BrandJaspertronics
ModelMega Lite Axis Beam 2R
Part NumberMega Lite Axis Beam 2R
TypeProject Lamp
ColorAssorted

Questions about this item

How often will the 2R lamp need replacing?

The lamp has an average rated life of 6000 hours; plan a replacement once that runtime is reached.

What limits continuous operation first?

The 132 W discharge arc generates heat that must be managed by the fixture's cooling system; thermal limits will appear before electrical ones.

How much heat and power does it draw when run all day?

It consumes 132 W at 69 V, converting most of that energy into heat and 5150 lm of 8000 K light during extended use.
