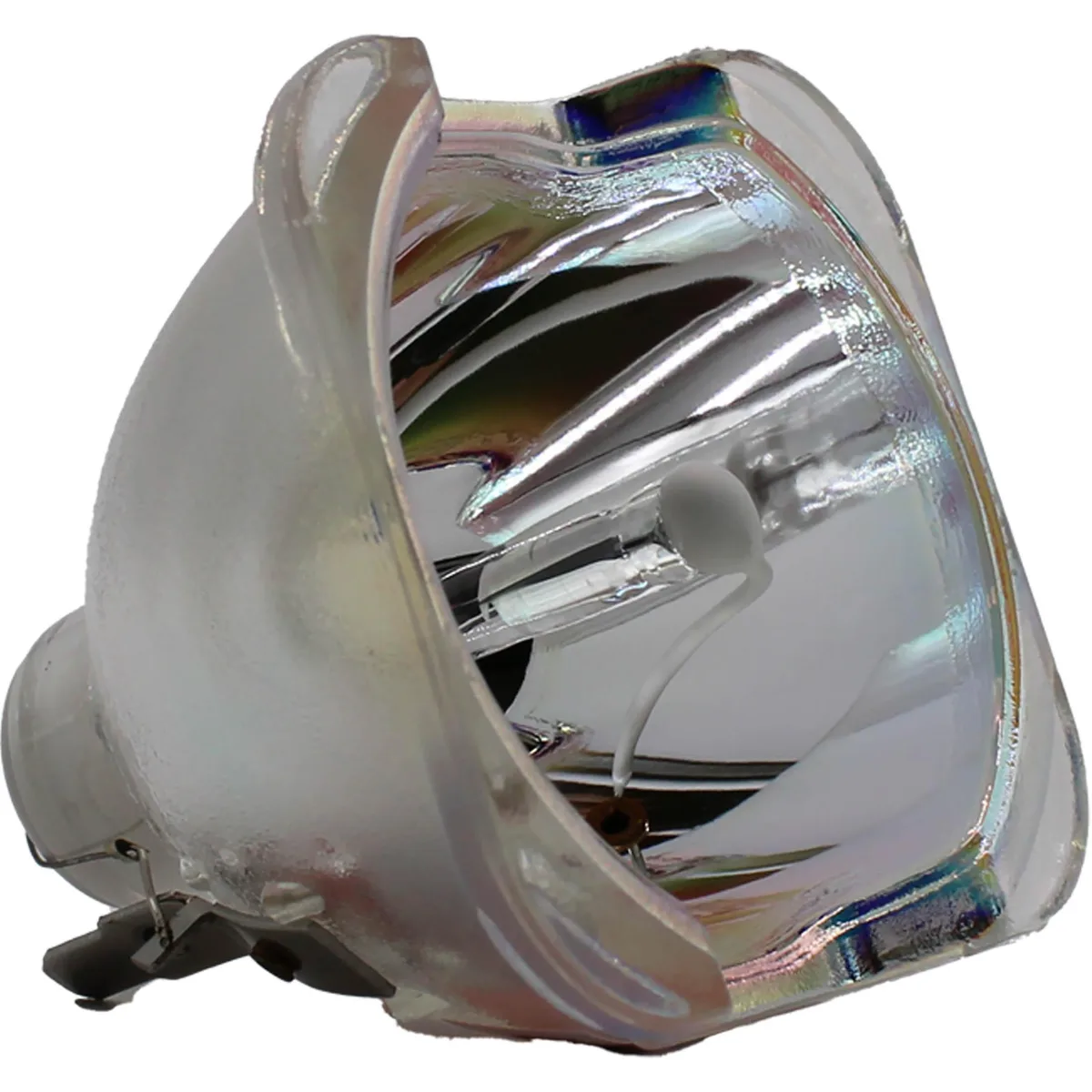

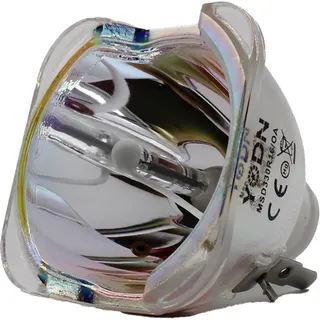

Compact bare discharge lamp with quartz arc tube and ceramic base

Jaspertronics

Jaspertronics Lightsky Bumblebee E330-LAMP 330W 16R/OA dlp replacement lamp

SKU CH-K3HY-R0QYG

A 330 W discharge lamp with 13,000 lm output and 7,800 K colour temperature for Lightsky Bumblebee E330 fixtures

  • TypeProject Lamp
  • Weight0.2000
  • High-intensity 13,000 lumen output for bright stage projection
  • 330 W short-arc discharge lamp with 1.3 mm gap
  • 1,500-hour average life reduces replacement frequency
  • Compact 56 x 56 x 63 mm size fits multiple moving-head fixtures
  • 7,800 K colour temperature delivers crisp white beam

Direct Fixture Replacement

The Jaspertronics Lightsky Bumblebee E330-LAMP is a 330W discharge lamp built for moving-head fixtures in houses of worship, clubs, concerts, stage and theatre. It serves venues and rental companies that need a bare-bulb replacement for the Lightsky Bumblebee E330 and compatible models.

330 Watt 16R/OA Arc Specification

The lamp operates at 330 watts with a 1.3 mm arc gap and a 65 volt running voltage. It delivers 13,000 lumens at a 7,800 K colour temperature and a CRI of 75, with an average life of 1,500 hours in any burning position.

Bare Bulb With Standard Working Distance

The unit ships as a bare bulb without a housing or reflector, weighing 0.2000 kg and measuring 56 x 56 x 63 mm. Its 36 mm working distance fits the optical path of the listed fixtures without additional adapters or alignment tools.

Highlights

  • High-intensity 13,000 lumen output for bright stage projection
  • 330 W short-arc discharge lamp with 1.3 mm gap
  • 1,500-hour average life reduces replacement frequency
  • Compact 56 x 56 x 63 mm size fits multiple moving-head fixtures
  • 7,800 K colour temperature delivers crisp white beam

Specifications

BrandJaspertronics
ModelLightsky Bumblebee E330-LAMP
Part NumberLightsky Bumblebee E330-LAMP
TypeProject Lamp
Weight0.2000

Questions about this item

What does the 330 W rating mean once the lamp is running in a moving-head fixture?

It draws 330 W at a 65 V arc voltage and produces 13,000 lumens at a 7,800 K colour temperature with a 1.3 mm arc gap.

How does the 16R/OA designation limit what fixtures the lamp can be used in?

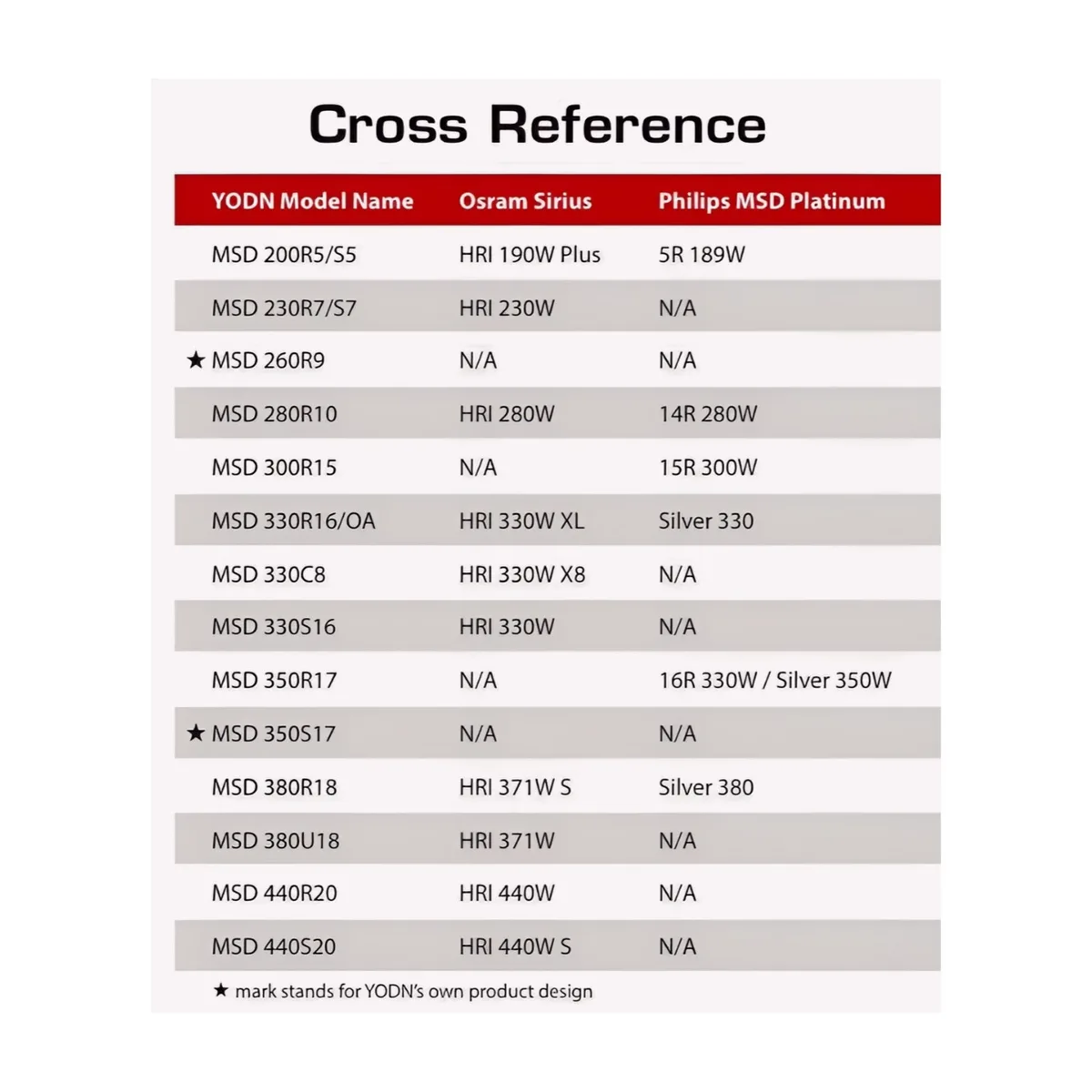

The 16R/OA code matches the MSD330R16/OA part type, so it fits only fixtures designed for that specific beam-lamp specification.

What physical space and mounting points does the 56 x 56 x 63 mm lamp need to fit?

It requires a 56 mm by 56 mm by 63 mm envelope with a 36 mm working distance and can operate in any burning position.
