A small bare discharge lamp with a compact rectangular arc tube about 51 by 51 by 61 mm and a 1.1 mm gap

Jaspertronics

Jaspertronics Jolly Hongcai X-BEAM 5R-LAMP 200W dlp replacement lamp

SKU CH-8X7X-6C1HV

200 W discharge lamp with 1.1 mm arc gap delivers 7,200 lm at 8,000 K for Jolly Hongcai X-BEAM 5R fixtures

  • TypeProject Lamp
  • Weight0.2000
  • 200 W discharge arc delivers 7 200 lumens for bright projection
  • 8 000 K colour temperature produces crisp white light
  • Compact 51 × 51 × 61 mm size fits Jolly Hongcai X-BEAM 5R fixtures
  • 3 000-hour average life reduces replacement frequency
  • Any burning position allows flexible fixture mounting

Jaspertronics Jolly Hongcai X-BEAM 5R-LAMP 200W

This is a new 200W discharge arc lamp built as a direct replacement for the Jolly Hongcai X-BEAM 5R moving-head fixture. It produces 7,200 lumens at 8,000K colour temperature with a CRI of 70. The compact 51 x 51 x 61 mm bare bulb weighs 0.2 kg and suits stage, club, theatre and house-of-worship lighting.

Installation notes and common issues

The lamp operates in any burning position and runs at 75V with a 1.1 mm arc gap, so it fits the fixture without orientation constraints. Handle the bare bulb only with clean gloves; skin oils on the quartz envelope create hot spots that shorten the 3,000-hour average life. Ensure the socket contacts are clean and the working distance of 34.5 mm is maintained during fitting.

Pre-order compatibility checks

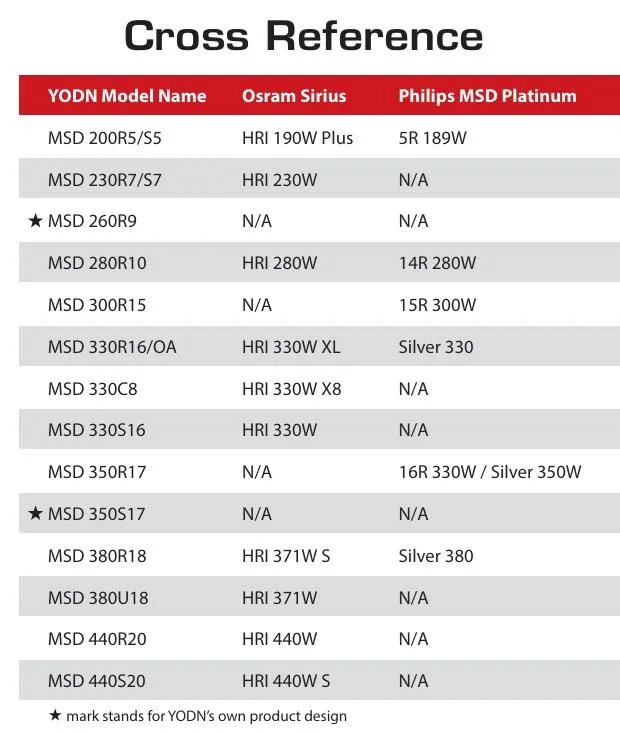

Confirm the fixture is a Jolly Hongcai X-BEAM 5R or another unit that accepts the MSD200R5 / MSD200S5 product code. Verify the ballast supplies 75V at 200W and that the lamp compartment accommodates the 51 x 51 x 61 mm envelope. This lamp is not for buyers who need a complete lamp module with housing or who require a different wattage or arc gap specification.

Highlights

  • 200 W discharge arc delivers 7 200 lumens for bright projection
  • 8 000 K colour temperature produces crisp white light
  • Compact 51 × 51 × 61 mm size fits Jolly Hongcai X-BEAM 5R fixtures
  • 3 000-hour average life reduces replacement frequency
  • Any burning position allows flexible fixture mounting

Specifications

BrandJaspertronics
ModelJolly Hongcai X-BEAM 5R-LAMP
Part NumberJolly Hongcai X-BEAM 5R-LAMP
TypeProject Lamp
Weight0.2000

Questions about this item

How do I confirm the 200 W lamp is operating correctly after installation?

The fixture should strike the arc reliably and produce a steady 8 000 K beam at the rated 7 200 lm output with no flicker or colour shift.

What comes with the bare bulb and what must be sourced separately?

The package contains only the YODN MSD200R5/MSD200S5 discharge capsule weighing 0.2000 kg; a compatible reflector housing and any mounting hardware for the Jolly Hongcai X-BEAM 5R fixture are not included.

Which part code matches my X-BEAM 5R fixture — MSD200R5 or MSD200S5?

Both codes refer to the same 200 W 5R short-arc lamp with 1.1 mm gap, 75 V operating voltage and 34.5 mm working distance; either designation will fit the X-BEAM 5R.
