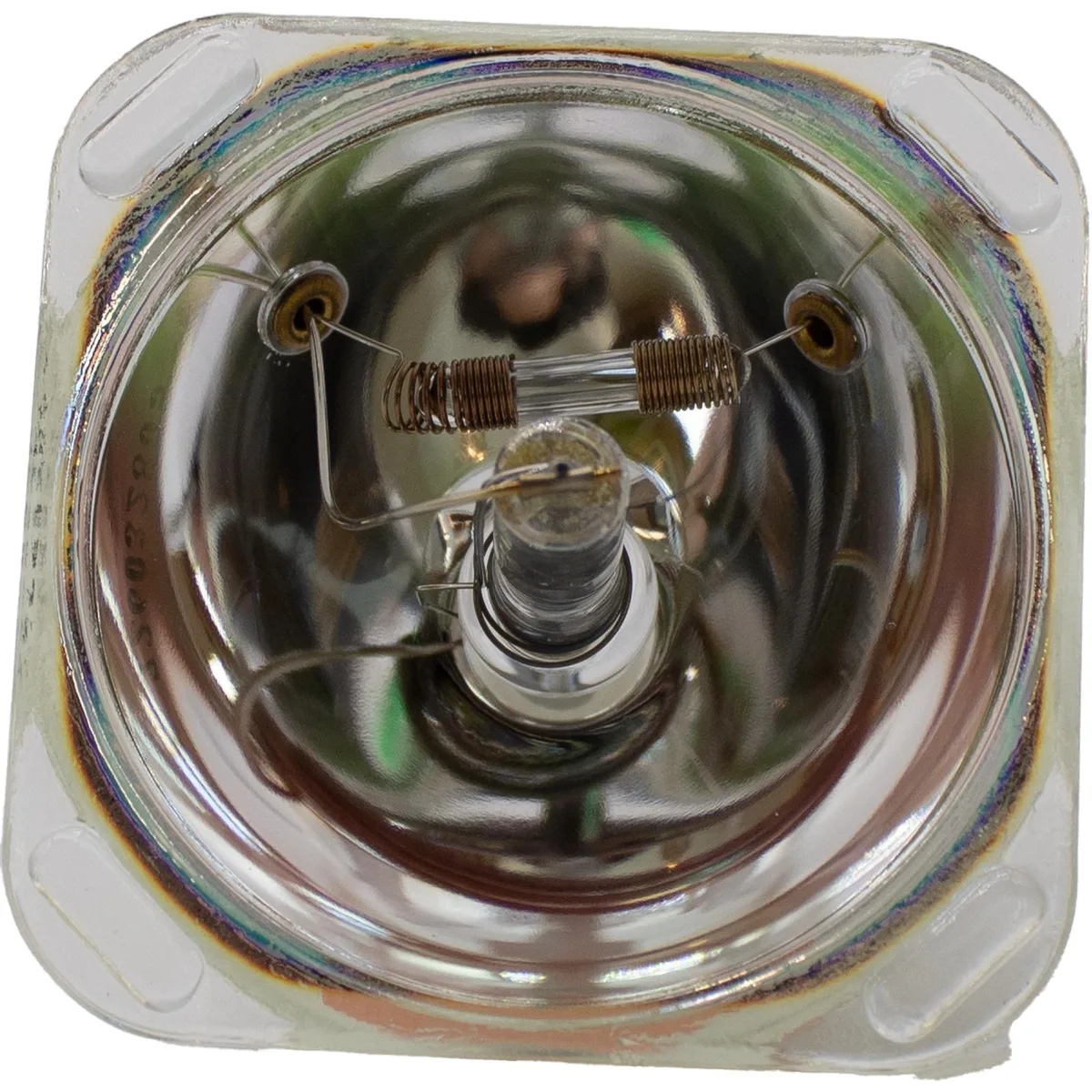

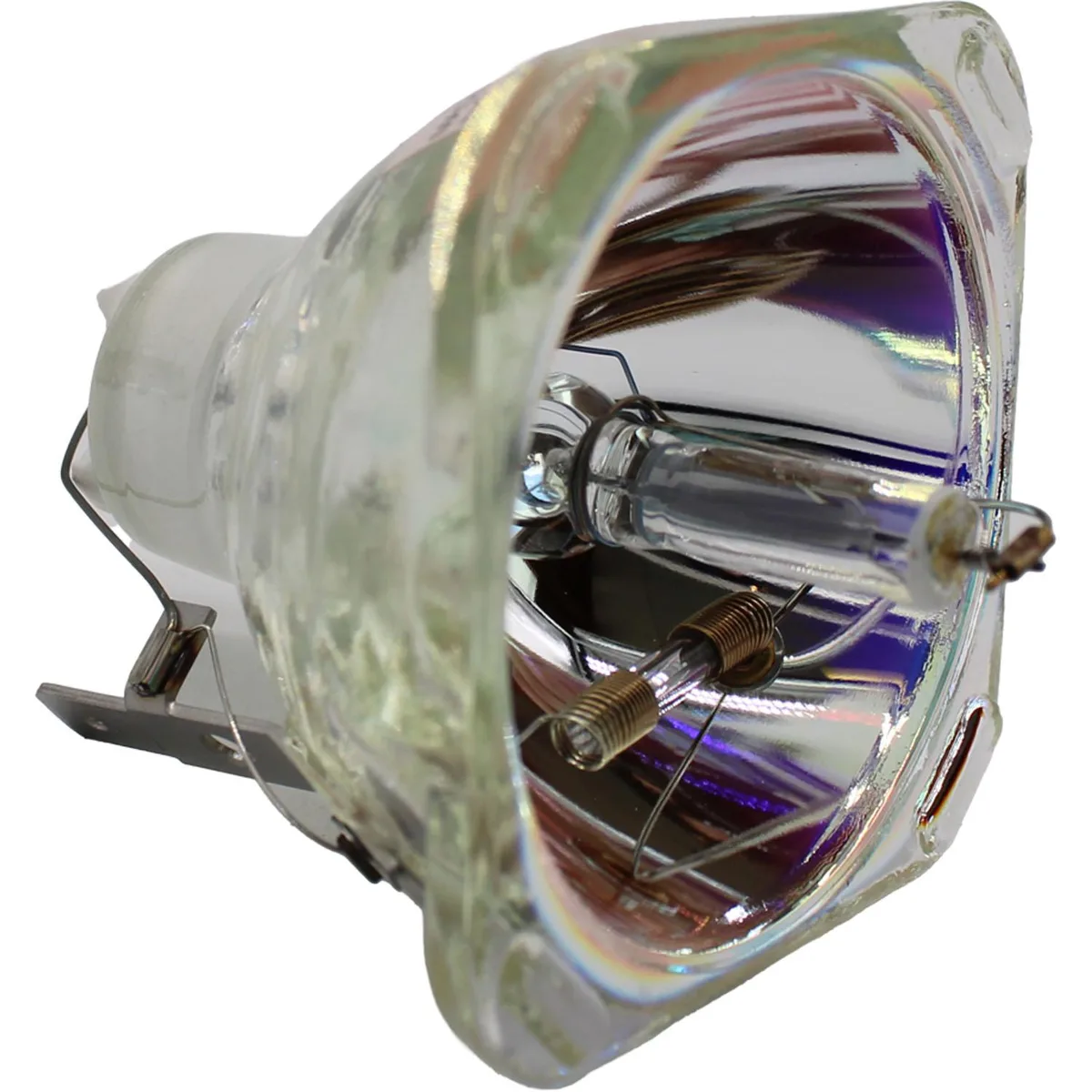

Compact high-pressure short arc lamp, clear glass envelope with metal base, 46 by 45 mm

Jaspertronics

Jaspertronics HIGHLITE Infinity iB-2R U-Stage 2R 132W 8000K standard bulb

SKU CH-86V6-8EEFP

High-pressure short arc lamp delivering 5150 lumens at 8000K for moving-head stage fixtures

  • TypeProject Lamp
  • ColorAssorted
  • High lumen output for bright stage projection
  • 8000 K colour temperature delivers crisp white light
  • 132 W power draw with 5150 lm output
  • 6000-hour rated life reduces replacement frequency
  • Universal burn position suits any fixture orientation

Replacement lamp for HIGHLITE Infinity iB-2R

This 132 W high-pressure short arc lamp is built as a direct replacement for the HIGHLITE Infinity iB-2R moving-head fixture. It delivers 5150 lm at a colour temperature of 8000 K and carries the part code 5002463 (2R). The unit is sold new and ready for installation in compatible entertainment lighting systems.

132 W / 69 V electrical rating

The lamp operates at 132 watts and 69 volts with an arc gap of 0.8 mm and a universal burn position. Its working distance is 37.7 mm and the average rated life is 6000 hours. These electrical and photometric values determine whether the lamp matches the fixture's power supply and optical design.

Suits venues running listed 2R moving heads

The lamp fits the Elation Sniper 2R, Rayzor Beam 2R, Martin Rush MH4, Mega Lite Axis Beam 2R, ADJ Vizi Roller Beam 2R, Warlock DMX, 3 Sixty 2R, Vizi Beam RXONE, Chauvet Intimidator Beam 140SR, Rogue R1 Beam, Intimidator Hybrid 140SR, Robe MiniPointe and other listed 2R fixtures. It is not for buyers who need a different wattage, base type or colour temperature.

Highlights

  • High lumen output for bright stage projection
  • 8000 K colour temperature delivers crisp white light
  • 132 W power draw with 5150 lm output
  • 6000-hour rated life reduces replacement frequency
  • Universal burn position suits any fixture orientation

Specifications

BrandJaspertronics
ModelHIGHLITE Infinity iB-2R
Part NumberHIGHLITE Infinity iB-2R
TypeProject Lamp
ColorAssorted

Questions about this item

What does the 5150 lumen output mean for stage brightness?

The lamp delivers 5150 lm at 8000K, producing intense cool-white light suitable for moving-head fixtures in concerts and clubs.

How does the 69V arc specification limit fixture compatibility?

The lamp operates at 69V with a 0.8 mm arc gap, so it only works in fixtures designed for that exact voltage and arc geometry.

Will the 46 x 45 mm dimensions and 37.7 mm working distance fit my moving head?

The compact 46 x 45 mm envelope and 37.7 mm working distance match the optical path of listed 2R moving heads such as the Elation Rayzor Beam 2R and Chauvet Rogue R1 Beam.
