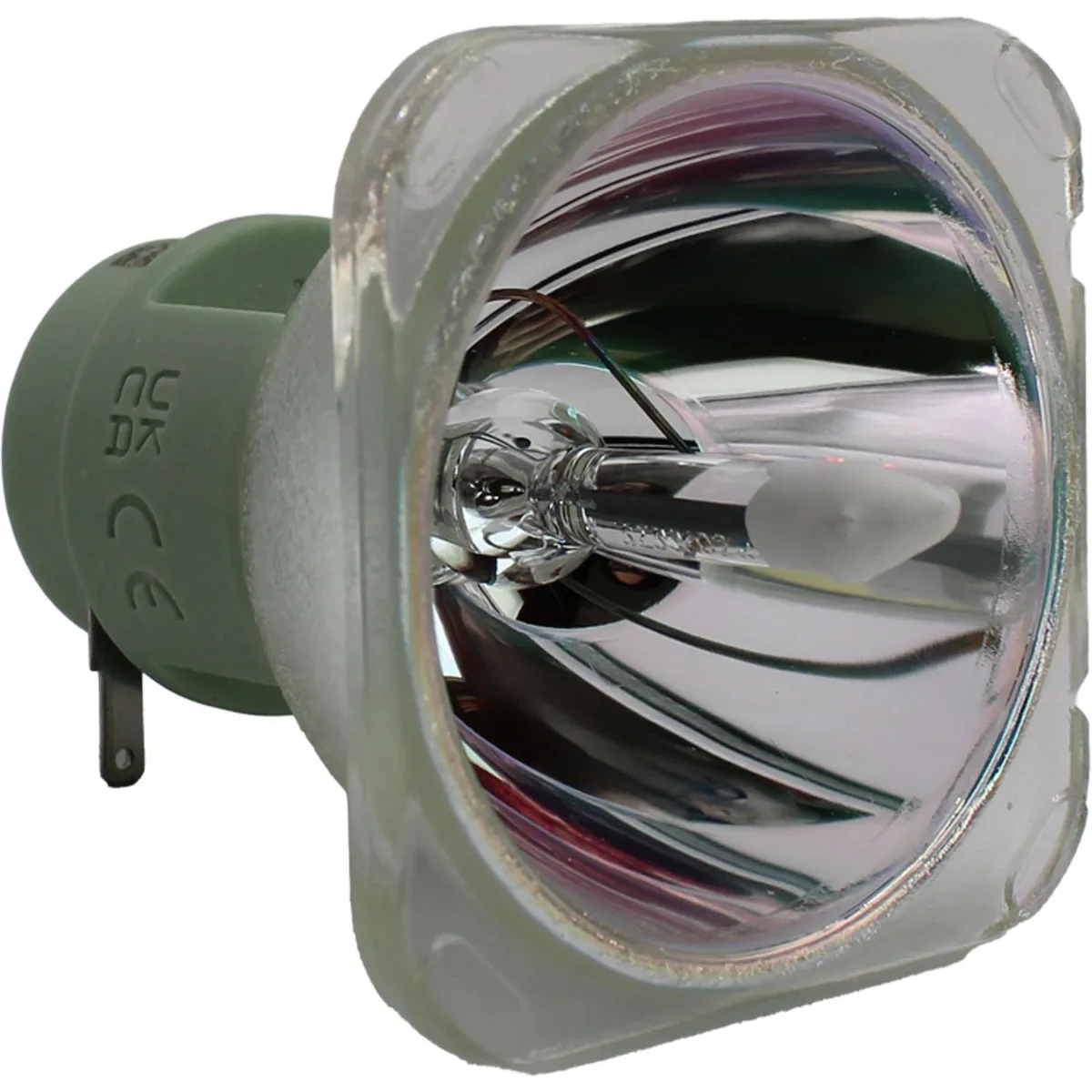

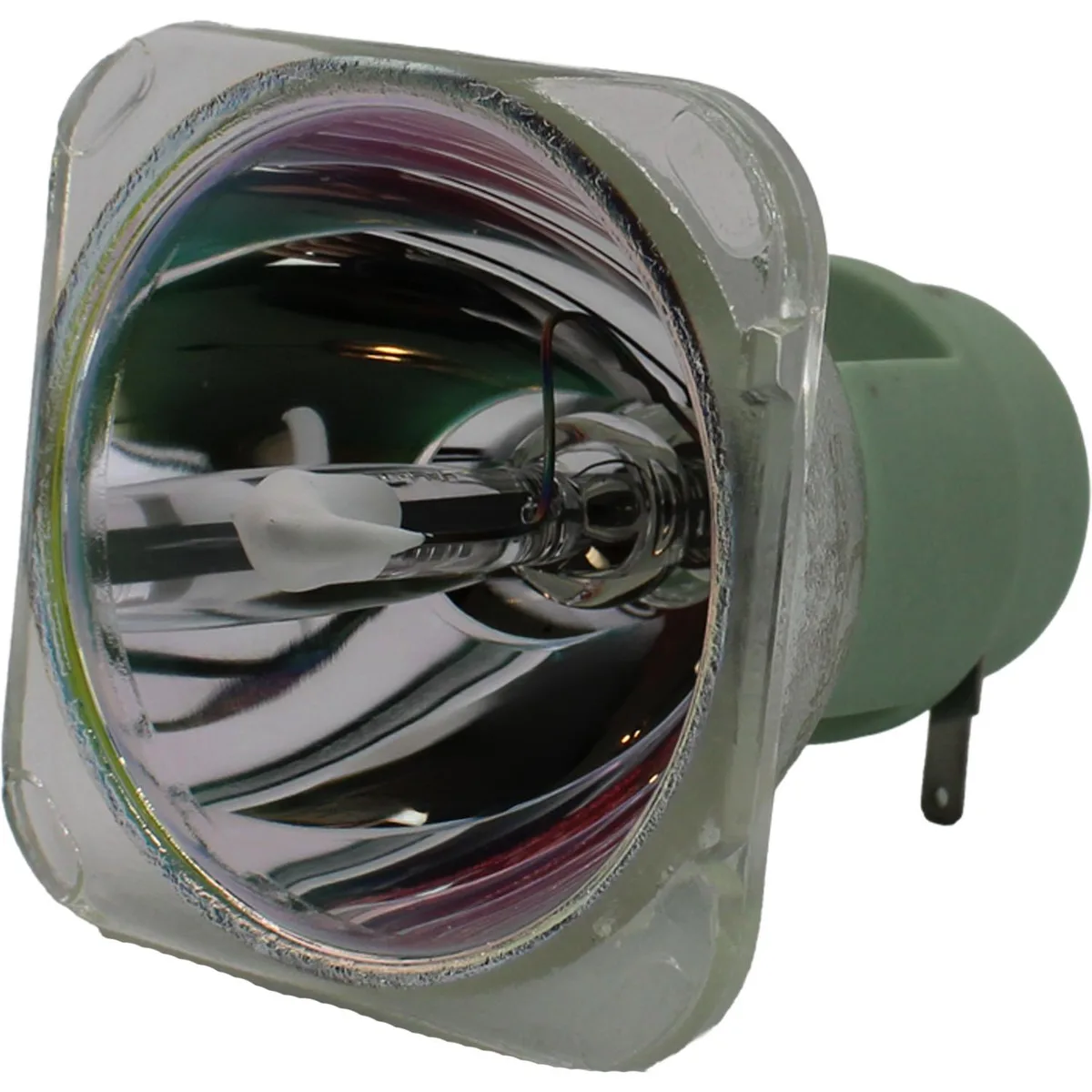

Jaspertronics 230W moving-head projector lamp module

Jaspertronics

Jaspertronics Fine Art FINE xtreme-230 Enhanced-LAMP Projector Lamp

SKU CH-DS3R-0FDW9

A 230 W discharge lamp delivering 9,500 lumens at 8000 K with Ra 75 for cool-white moving-head fixtures

  • TypeProject Lamp
  • Colorassorted
  • 9,500 lm output at 8000K for bright cool-white stage looks
  • Ra 75 colour rendering for clean white reproduction
  • 230 W nominal power with 70 V and 3.3 A electrical spec
  • 2,500 hour nominal lifetime for extended show runs
  • Compatible with Chauvet, ACME, PR Lighting and GTD moving heads

Compatible Fixtures

This 230W discharge lamp is built for the Fine Art FINE xtreme-230 Enhanced moving head and matches the Sirius HRI 54403 specification. It also fits popular touring fixtures such as the Chauvet Legend 230SR Beam, Rogue R2 Beam, ACME XP-231 BEAM, PR Lighting XR 230 Spot and GTD-230 II Beam/Spot units.

Sustained Output

The lamp produces 9500 lumens at 8000K with a Ra 75 colour rendering index, maintaining a cool-white beam through long sets. Nominal electrical parameters are 70V, 3.3A and a 2.5 kVp ignition voltage, while forced cooling and any burning position keep performance stable over the rated 2500-hour lifetime.

Upgrade Path

It replaces a worn 7R-class lamp in the same fixture without wiring or mechanical changes. The jump is worth it when output has faded, colour temperature has drifted or the electrode gap has widened beyond the 1.0 mm cold spec, restoring the original 34.5 mm working distance and 5 x 3.8 mm aperture geometry.

Highlights

  • 9,500 lm output at 8000K for bright cool-white stage looks
  • Ra 75 colour rendering for clean white reproduction
  • 230 W nominal power with 70 V and 3.3 A electrical spec
  • 2,500 hour nominal lifetime for extended show runs
  • Compatible with Chauvet, ACME, PR Lighting and GTD moving heads

Specifications

BrandJaspertronics
ModelFine Art FINE xtreme-230 Enhanced-LAMP
Part NumberFine Art FINE xtreme-230 Enhanced-LAMP
TypeProject Lamp
Colorassorted

Questions about this item

How much heat and power does the 230W Sirius HRI lamp generate during continuous operation?

The lamp draws 230W nominal at 70V and 3.3A, with a 2.5 kVp ignition spike, so the fixture must provide forced cooling and a power supply rated for that sustained load.

What fixture interface and ignition voltage does this 54403 lamp require to strike and run?

It needs a 7R-class moving-head fixture with a 2.5 kVp ignitor, a ballast delivering 70V at 3.3A, and a lamp housing that accepts the 5 x 3.8 mm aperture at 34.5 mm working distance.

Will this lamp fit older 7R beam or spot heads that I already own?

It is a direct replacement for fixtures such as the Chauvet Legend 230SR Beam, Rogue R2 Beam, ACME XP-231 BEAM, PR Lighting XR 230 Spot and GTD-230 II Beam/Spot.
