Compact high-pressure discharge lamp with rounded ceramic base and clear quartz arc tube, matte grey finish

Jaspertronics

Jaspertronics Elation Platinum Beam 5R Pro-LAMP standard bulb 189W 8000 lm

SKU CH-BRQ6-1N062

High-pressure short-arc replacement lamp delivering 8000 lm at 8000K for Elation Platinum Beam 5R Pro fixtures, rated 2000 hours

  • TypeProject Lamp
  • ColorAssorted
  • High lumen output for bright stage illumination
  • 8000 lm from 189W high-pressure short arc lamp
  • 8000K color temperature delivers crisp white light
  • Universal burn position allows flexible fixture mounting
  • 2000-hour rated life supports extended performance runs

Elation Platinum Beam 5R Pro replacement lamp

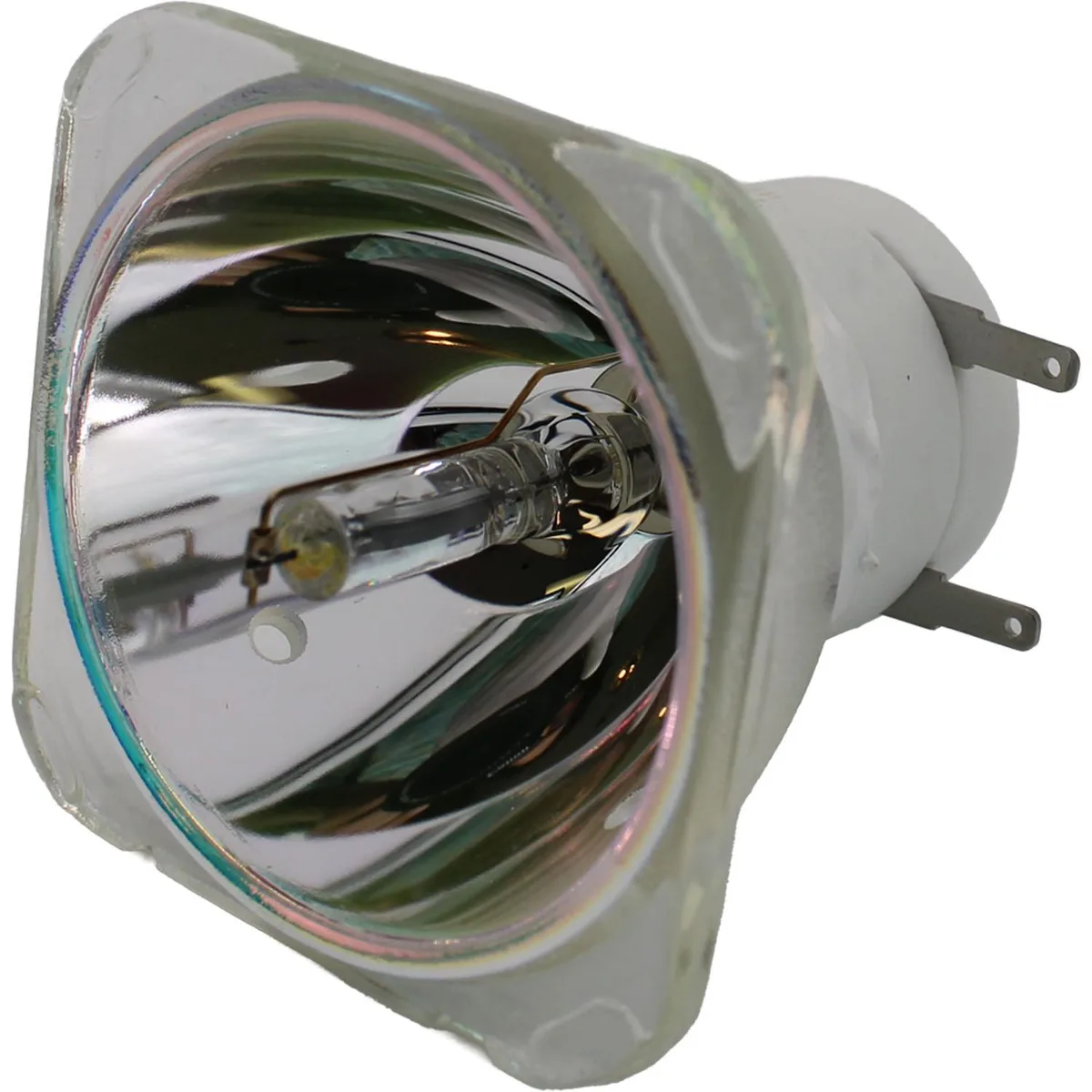

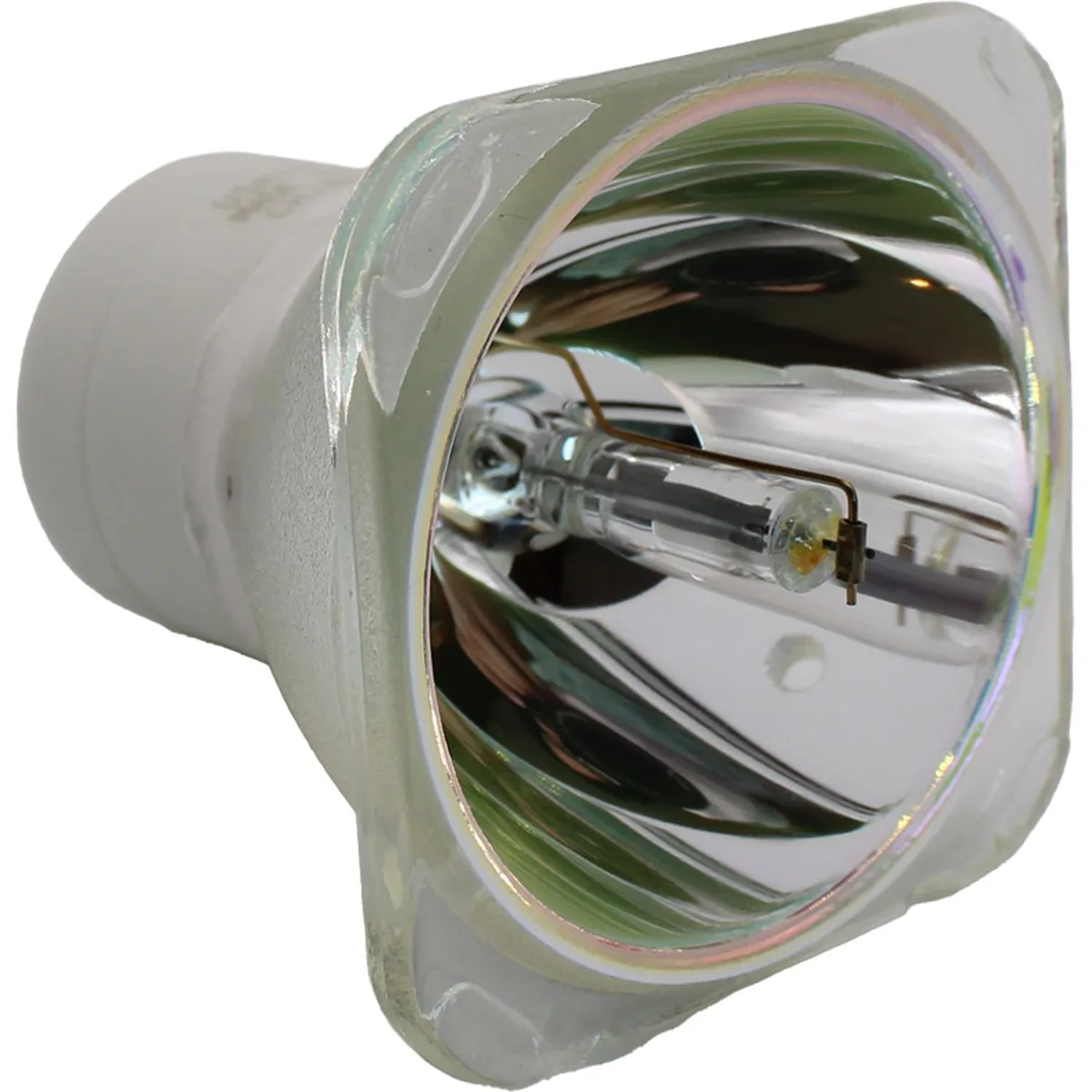

The Jaspertronics Elation Platinum Beam 5R Pro-LAMP is a 189 W high-pressure short-arc stage lamp rated at 8000 lm and 8000 K colour temperature. It fits the Elation Platinum Beam 5R Pro and a wide range of compatible moving-head fixtures used in concert, club and theatrical lighting.

Upgrades from lower-output discharge lamps

The 0.9 mm arc gap and universal burn position deliver a concentrated beam with consistent output across the 2000-hour rated life. The jump is worth it when a production demands higher lumen density and reliable hot restrike in fast-paced cue sequences.

Capacity and headroom for professional moving heads

At 75 V and 34.5 mm working distance the lamp comfortably drives 5R-class beam and spot units through extended show runs. Output gradually declines near the 2000-hour limit, so schedule replacement before critical performances to maintain design intensity.

Highlights

  • High lumen output for bright stage illumination
  • 8000 lm from 189W high-pressure short arc lamp
  • 8000K color temperature delivers crisp white light
  • Universal burn position allows flexible fixture mounting
  • 2000-hour rated life supports extended performance runs

Specifications

BrandJaspertronics
ModelElation Platinum Beam 5R Pro-LAMP
Part NumberElation Platinum Beam 5R Pro-LAMP
TypeProject Lamp
ColorAssorted

Questions about this item

What are the lamp dimensions and working distance for fitting the 189 W 8000 lm bulb?

The lamp measures 51 x 56 mm with a 34.5 mm working distance and a 0.9 mm arc gap.

How is the U-Stage 5R lamp installed in an Elation Platinum Beam 5R Pro fixture?

Align the lamp base with the fixture socket, seat it firmly without touching the glass envelope, then secure the retaining clips.

When should the 189 W high-pressure short-arc lamp be replaced based on rated life?

Plan replacement after approximately 2000 hours of operation when output drops or the arc becomes unstable.
