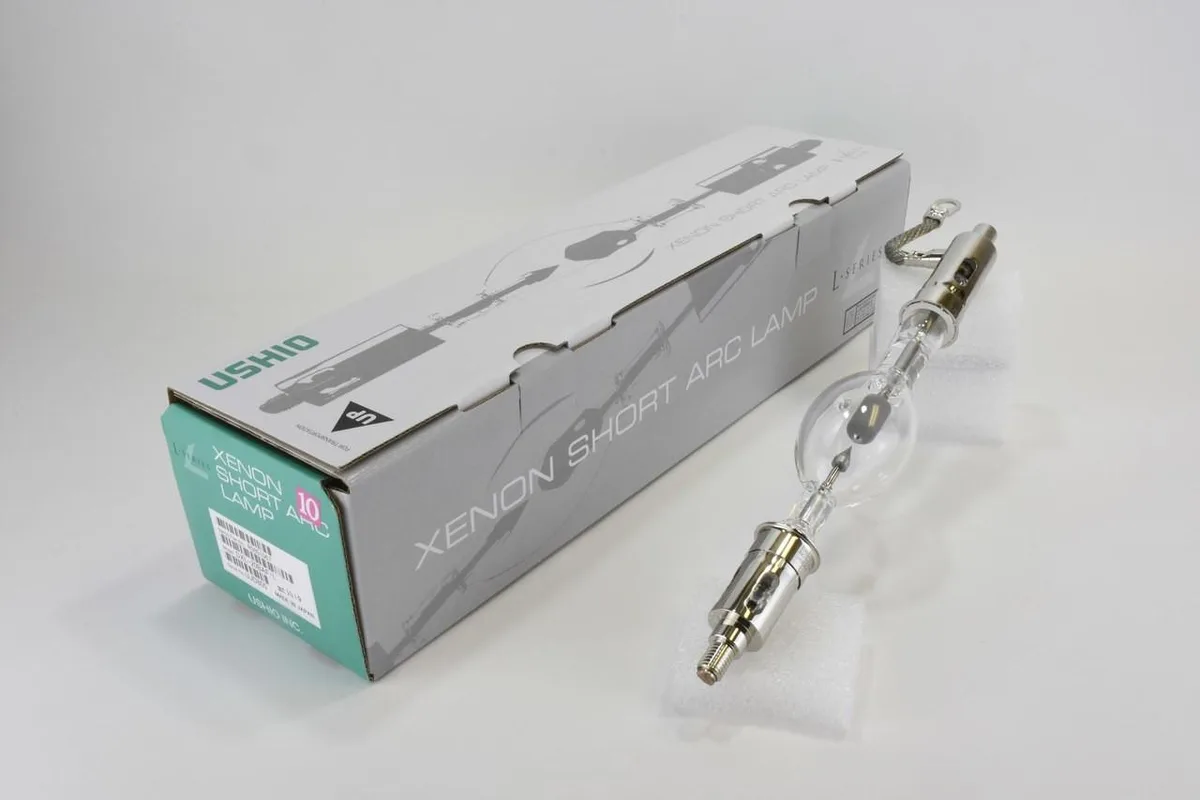

Jaspertronics DP2K-8Sx-LAMP projector lamp 2000W 3200 hour Xenon L Series

Purpose and Audience

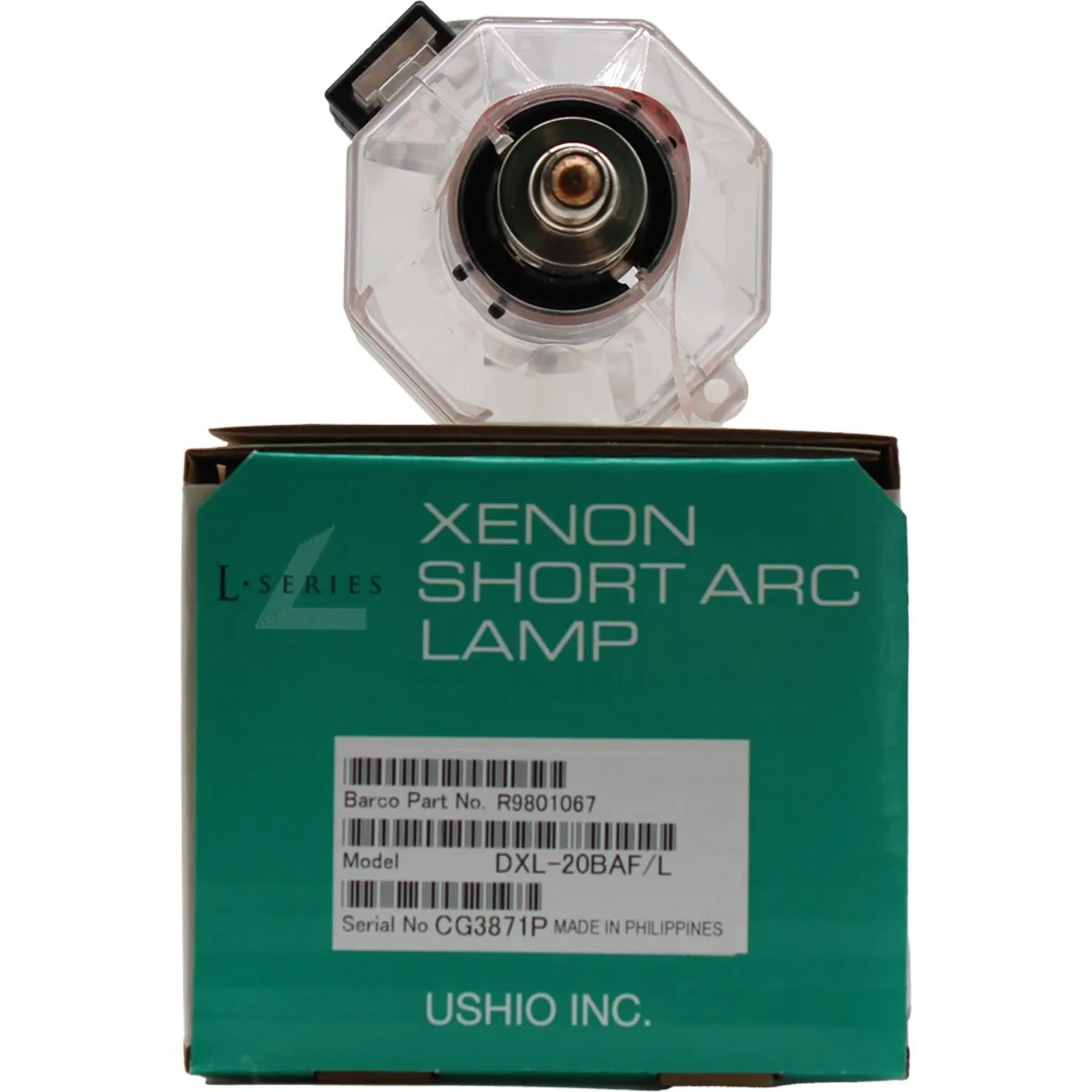

This 2000W Xenon L Series lamp is built for Barco digital cinema projectors that require the DXL-20BAF/L specification. It serves cinema operators and service technicians who need a direct replacement rated for 3200 warranty hours. The part matches Barco references 5002263 and R9801067 and fits the extensive model list supplied by the manufacturer. It is not for buyers who need a different wattage, a different arc geometry, or a lamp for non-Barco housings.

Deciding Specification

The lamp delivers 2000W input power at 25V and 80A with an operating range of 14002000W. A 123 mm light center length and a 4.5 mm cold arc gap define the optical geometry that keeps focus and alignment correct in compatible lamp houses. These electrical and optical parameters are the single measure of whether this unit will operate properly in a given projector.

Build Integration

Physical fitment is defined by a 294 mm overall length, 27 mm lamp diameter, 55 mm bulb diameter, and 132 mm cable length. Electrical connection uses an M12×1.75 pin diameter with a 14 mm pin length. The unit weighs 6.0000 kg. Installers must verify that the projector’s lamp house accepts these exact dimensions and pin specifications; no other mechanical or electrical interfaces are provided.
