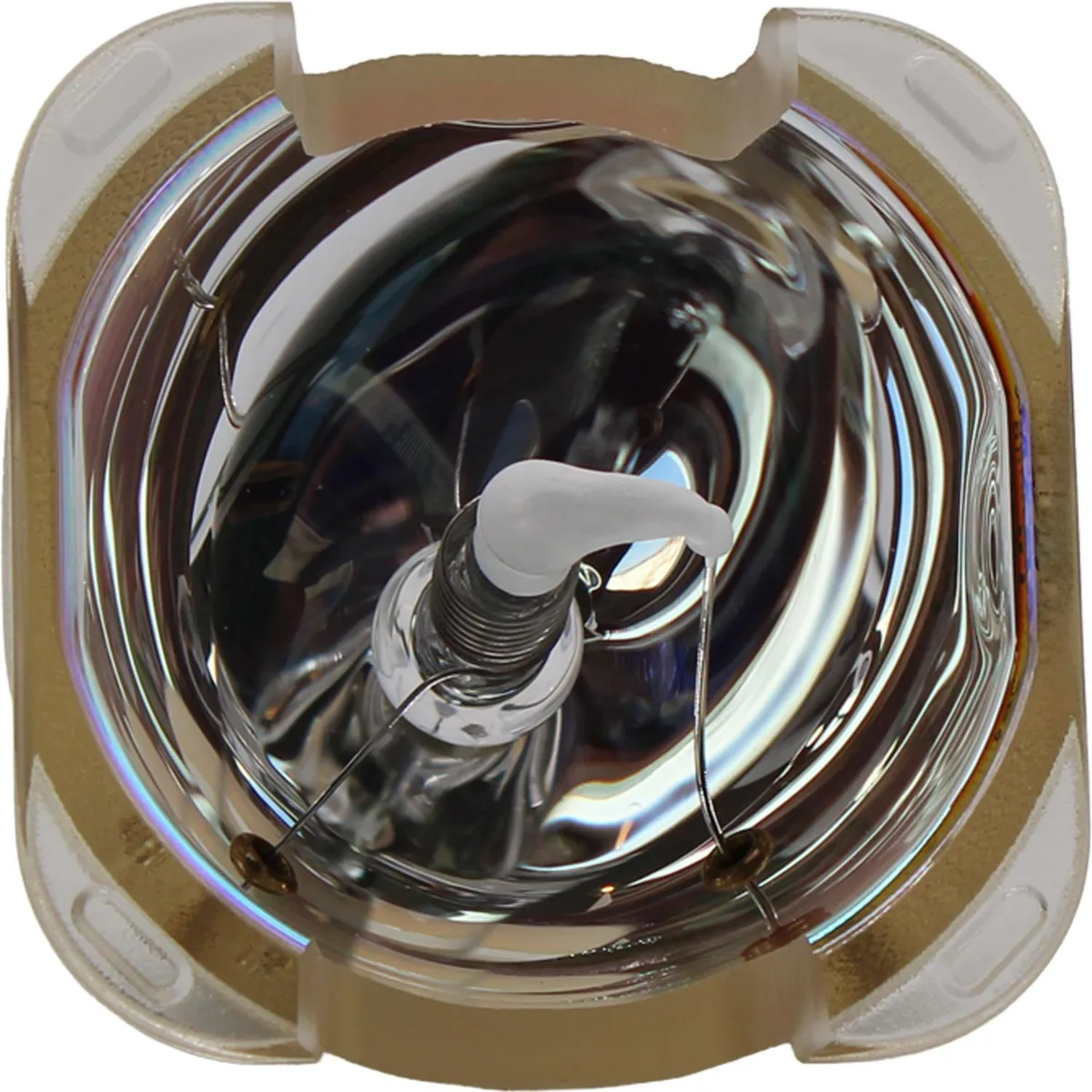

Compact 330W HID lamp with single-ended base, 53mm long, 51.5mm diameter

Jaspertronics

Jaspertronics Chauvet LEGEND 330SR SPOT-LAMP 330W HID Lamp

SKU CH-1XFV-N564C

330 W HID lamp delivers 18,000 lm at 7400 K with Ra 86 for Chauvet LEGEND 330SR spot fixtures

  • TypeProject Lamp
  • ColorAssorted
  • Bright 18,000 lm output at 7400K with Ra 86 for crisp, professional stage looks
  • 330W HID metal-halide technology delivers high-intensity arc light for moving-head fixtures
  • 3 mm arc length enables tight optical focus and sharp beam definition
  • Universal burning position allows flexible mounting in any orientation
  • 1,500-hour rated life reduces lamp-change frequency during touring schedules

Target fixture

The Jaspertronics Chauvet LEGEND 330SR SPOT-LAMP is a 330W metal-halide discharge lamp built for the Chauvet Legend 330SR Spot moving head. It delivers 18,000 lm at 7400K with Ra 86 for crisp, professional stage looks. Lighting technicians and rental houses use it as a direct replacement when the original source reaches end of life.

Arc performance

The arc measures 1.3 mm and produces 16,000 initial lumens at 8000K with a CRI of 75. The E 21.9 TCM reflector focuses output through a 51.5 mm diameter envelope that is 53 mm long. Universal burning position and a 31.4 mm working distance allow flexible fixture orientation. Rated life is 1500 hours with a maximum pinch temperature of 350°C.

Cross-compatible fixtures

This lamp also fits the Acme XP-16R series, American DJ Vizi Hybrid 16RX, Clay Paky Sharpy Wash 330, Elation Platinum Wash 16R Pro, Fine Art Fine 330 Spot and Wash, GTD-330 N BSW, Jolly X-Super Beam, Terbly PT330W and several DTS models. Buyers needing a different wattage, base type or longer service interval should look at other lamp families.

Highlights

  • Bright 18,000 lm output at 7400K with Ra 86 for crisp, professional stage looks
  • 330W HID metal-halide technology delivers high-intensity arc light for moving-head fixtures
  • 3 mm arc length enables tight optical focus and sharp beam definition
  • Universal burning position allows flexible mounting in any orientation
  • 1,500-hour rated life reduces lamp-change frequency during touring schedules

Specifications

BrandJaspertronics
ModelChauvet LEGEND 330SR SPOT-LAMP
Part NumberChauvet LEGEND 330SR SPOT-LAMP
TypeProject Lamp
ColorAssorted

Questions about this item

How often will the 330W HID lamp need replacement?

The lamp is rated for 1500 hours of life before replacement is required.

What limits continuous operation first?

The pinch temperature reaches 350°C during use, which is the primary thermal limit.

How much heat does the lamp produce when running all day?

The lamp operates at 330W with a pinch temperature of 350°C and universal burning position.
